Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

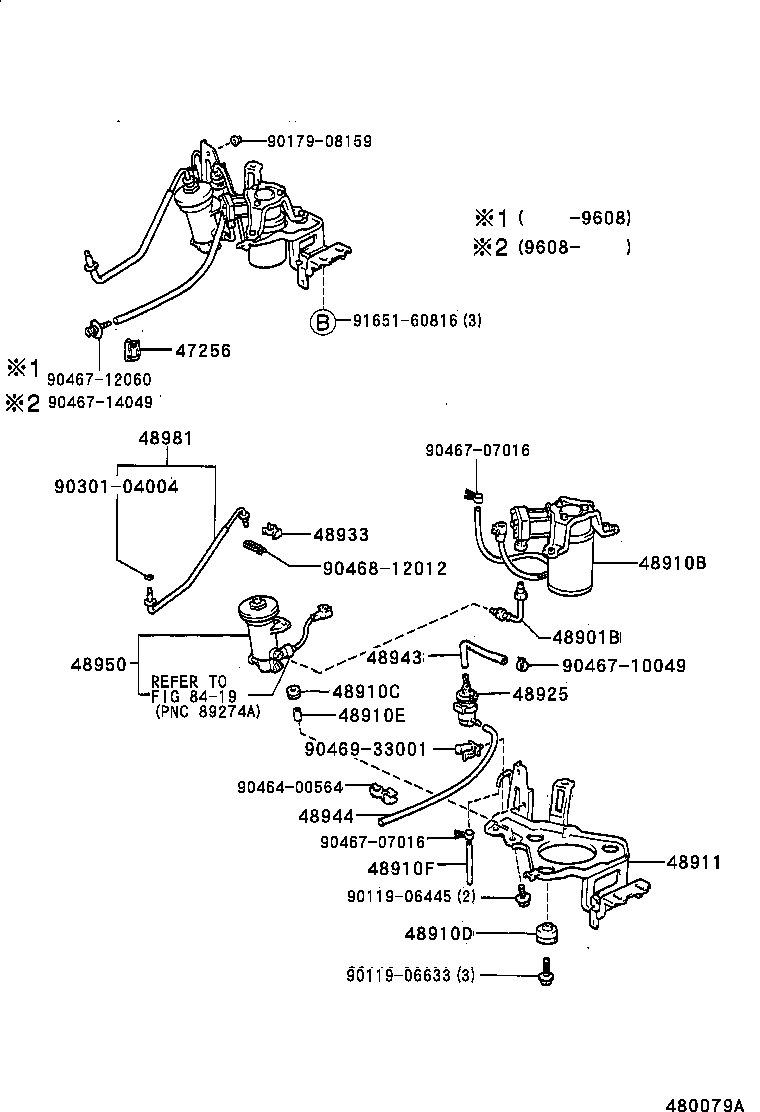

Height Control (AUTO-LEVELER)
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44406H | Protector Assy, Rear Steering Control Tube |
| 44753B | Clamp, Height Control Tube, NO.1 |
| 44753C | Clamp, Height Control Tube, NO.2 |
| 47256 | Grommet, Cap |
| 47378C | Protector, Tube, Upr |
| 47381A | Bracket, Height Control Tube Clamp, NO.1 |
| 47381B | Bracket, Height Control Tube Clamp, NO.2 |
| 47388A | Protector, Tube, Lwr |
| 48095 | Valve Sub-assy, Height Control, NO.1 |
| 48096 | Valve Sub-assy, Height Control, NO.2 |
| 48901B | Hose, Flexible(FOR HEIGHT CONTROL COMPRESSOR) |
| 48906A | Link Sub-assy, Height Control Sensor, Rear |
| 48907B | Link Sub-assy, Height Control Sensor, Front |
| 48908A | Bracket Assy, Height Sensor Link, RH |
| 48909 | Bracket Assy, Height Sensor Link, LH |
| 48910B | Compressor Assy, Height Control |
| 48910C | Bush, NO.1(FOR HEIGHT CONTROL COMPRESSOR) |
| 48910D | Bush, NO.2(FOR HEIGHT CONTROL COMPRESSOR) |
| 48910E | Spacer(FOR HEIGHT CONTROL COMPRESSOR) |
| 48910F | Hose, Vacuum(FOR HEIGHT CONTROL COMPRESSOR) |
| 48911 | Bracket, Height Control Compressor |
| 48925 | Filter, Height Control |
| 48933 | Holder, Air Connector Clip |
| 48943 | Hose, Height Control, NO.1 |
| 48944 | Hose, Height Control, NO.2 |
| 48950 | Dryer Assy, Height Control |
| 48981 | Tube, Height Control, NO.1 |
| 48981C | Way(FOR HEIGHT CONTROL TUBE) |
| 48982 | Tube, Height Control, NO.2 |
| 48982C | Way, NO.2(FOR HEIGHT CONTROL TUBE) |
| 48983 | Tube, Height Control, NO.3 |
| 48984 | Tube, Height Control, NO.4 |
| 48985 | Tube, Height Control, NO.5 |
| 48986 | Tube, Height Control, NO.6 |
| 48987 | Tube, Height Control, NO.7 |
| 48988 | Tube, Height Control, NO.8 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
