Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07
Active Control
124 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

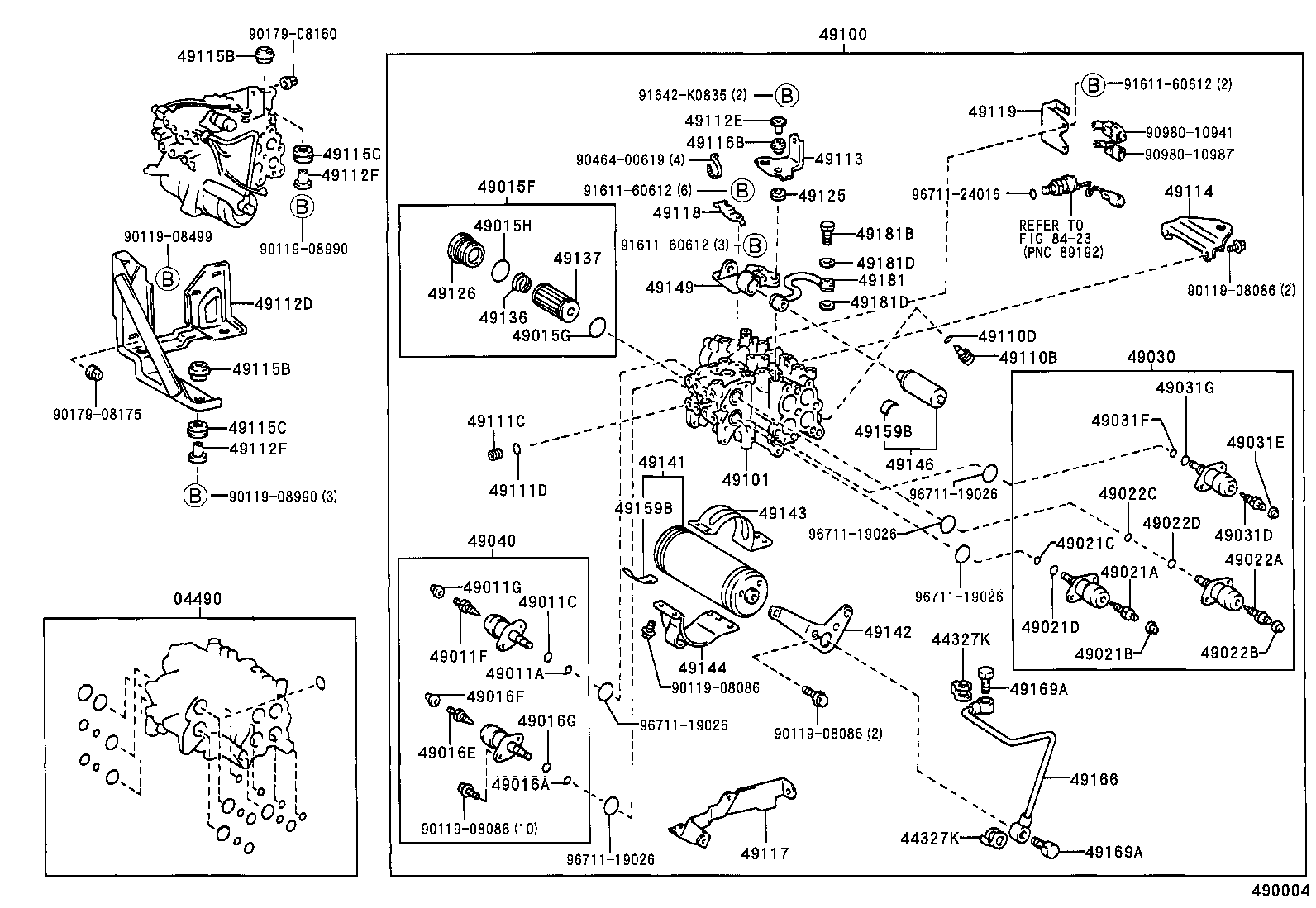

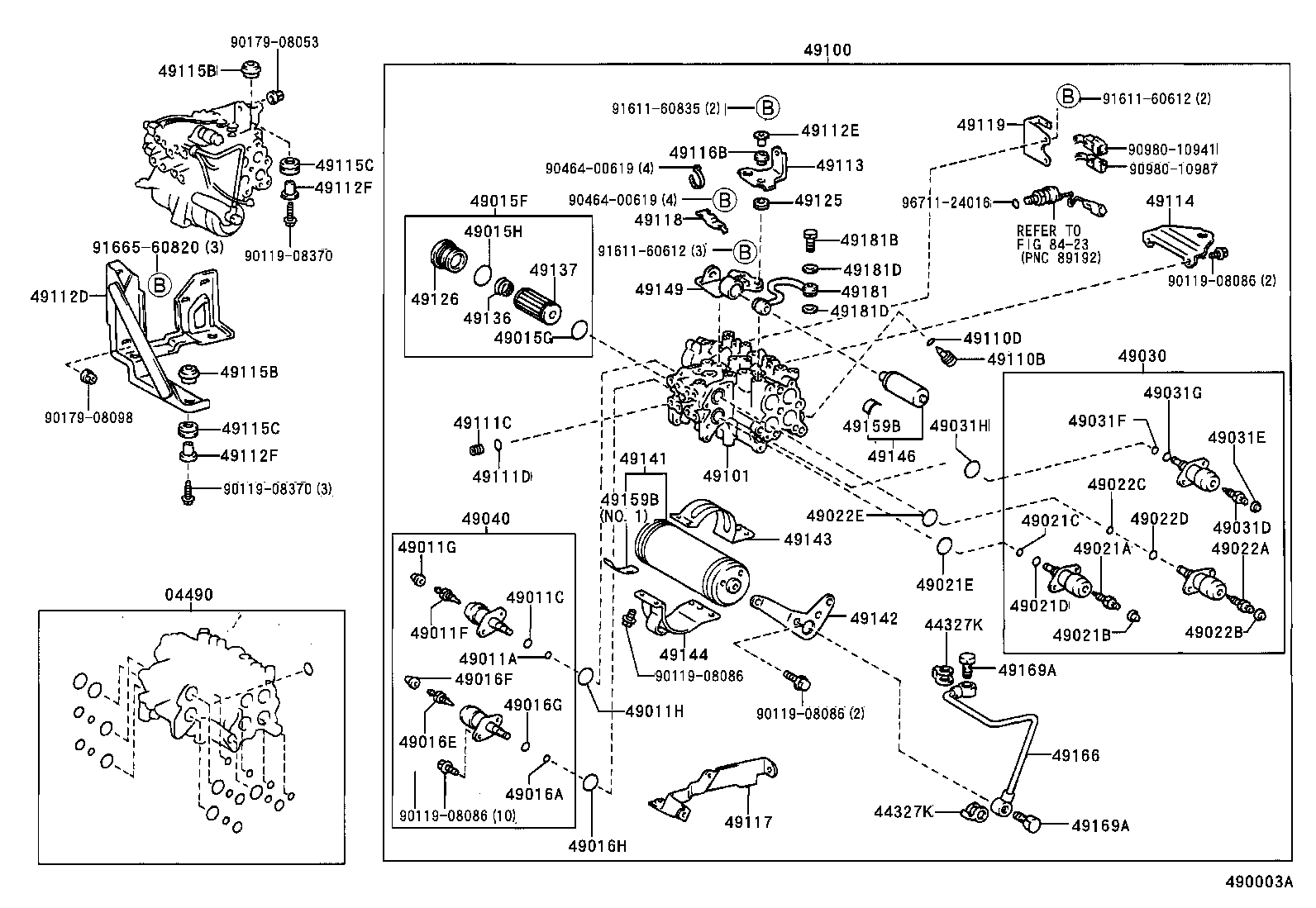

| 04490 | Overhaul Kit, Front Suspension Control Valve |
| 36681A | Gage, Suspension Control Oil Level |
| 44305B | Cap Sub-assy, Suspension Control Oil Reservoir |
| 44327K | Gasket, Suspension Control Pressure Tube |
| 44361A | Filter, Suspension Control Oil Reservoir, NO.1 |
| 44361B | Filter, Suspension Control Oil Reservoir, NO.2 |
| 44361C | Ring, O(FOR SUSPENSION CONTROL OIL RESERVOIR NO.1) |
| 44361D | Ring, O(FOR SUSPENSION CONTROL OIL RESERVOIR NO.2) |
| 44363C | Strainer, Suspension Control Oil Reservoir |
| 48906C | Link, Height Control Sensor, Rear(FOR ACTIVE SUSPENSION) |
| 48907C | Link, Height Control Sensor, Front(FOR ACTIVE SUSPENSION) |
| 48908B | Cap Assy, Height Control Reservoir |
| 48908C | Bracket Sub-assy, Active Suspension Sensor Link, RH |
| 48909A | Bracket Sub-assy, Active Suspension Sensor Link, LH |
| 48930D | Gasket, Suspension Control Oil Reservoir Drain Plug |
| 48930F | Plug(FOR SUSPENSION CONTROL OIL RESERVOIR DRAIN) |

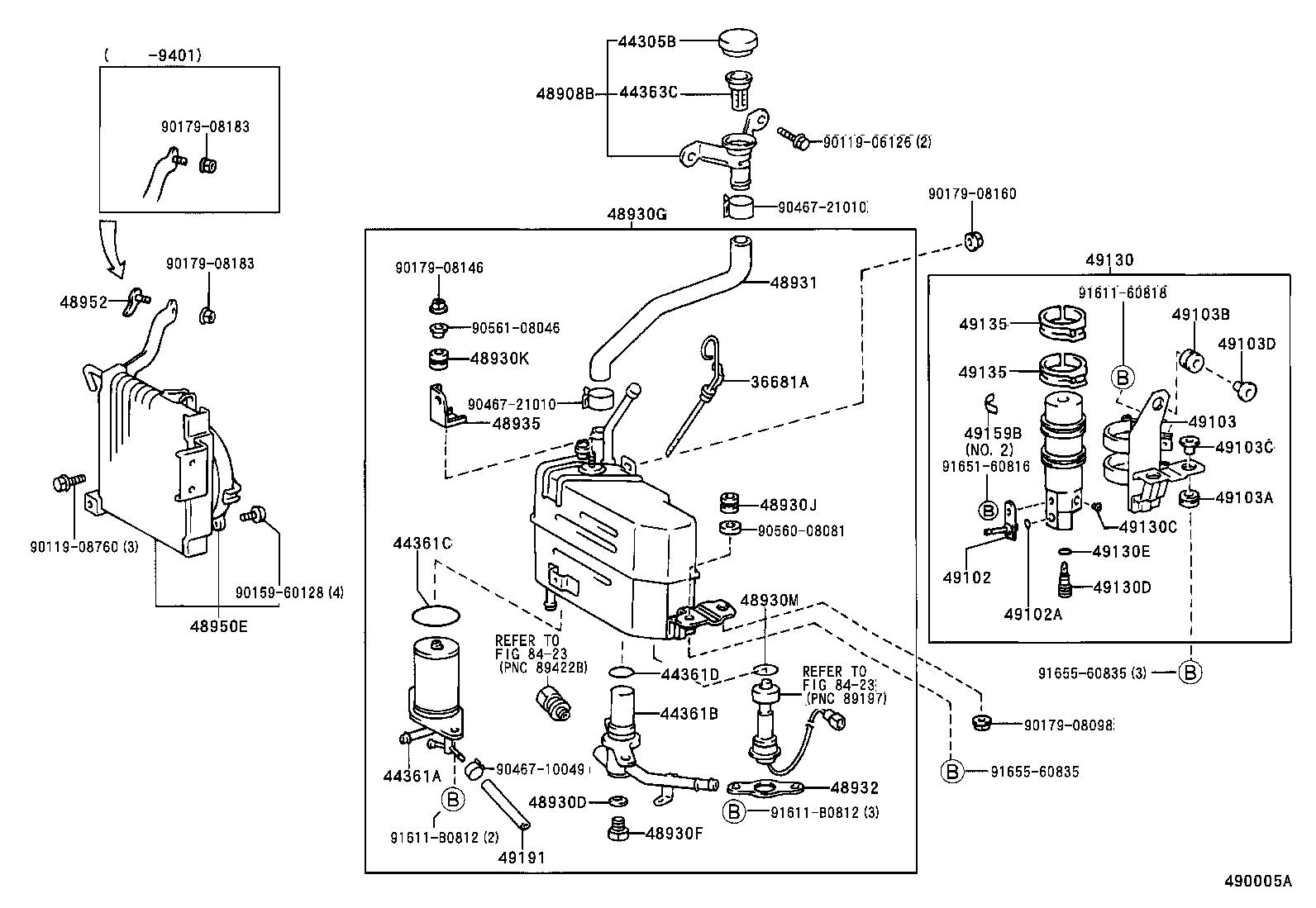

| 48930G | Reservoir Assy, Suspension Control Oil |
| 48930J | Bush, NO.1(FOR REAR SUSPENSION ACCUMULATOR) |
| 48930K | Bush, NO.2(FOR REAR SUSPENSION ACCUMULATOR) |
| 48930M | Ring, O(FOR SUSPENSION CONTROL OIL RESERVOIR) |
| 48931 | Hose, Height Control Cap TO Reservoir |
| 48932 | Plate, Suspension Control Oil Reservoir |
| 48935 | Bracket, Suspension Control Oil Reservoir |
| 48950E | Cooler Assy, Suspension Control Oil |
| 48952 | Bracket, Suspension Control Oil Cooler, NO.1 |
| 49011A | Ring, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH) |
| 49011C | Ring, O(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH) |
| 49011F | Plug, Front Absorber Control Solenoid Valve Bleeder, RH |
| 49011G | Cap, Front Absorber Control Solenoid Bleeder Plug, RH |
| 49011H | Ring, O(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH) |
| 49015F | Filter Assy, Absorber Control Oil |
| 49015G | Ring, O(FOR ABSORBER CONTROL OIL FILTER OUTER) |
| 49015H | Ring, O(FOR ABSORBER CONTROL OIL FILTER INNER) |
| 49016A | Ring, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH) |
| 49016E | Plug, Bleeder, Front Absorber Control Solenoid Valve, LH |
| 49016F | Cap, Front Absorber Control Solenoid Bleeder Plug, LH |
| 49016G | Ring, O(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH) |
| 49016H | Ring, O(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH) |
| 49021A | Plug, Rear Absorber Control Solenoid Valve Bleeder, RH |
| 49021B | Cap, Rear Absorber Control Solenoid Bleeder Plug, RH |
| 49021C | Ring, O(For Rear Absorber Control Solenoid Valve, RH |
| 49021D | Ring, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE, RH) |
| 49021E | Ring, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE, RH) |
| 49022A | Plug, Rear Absorber Control Solenoid Valve Bleeder, LH |
| 49022B | Cap, Rear Absorber Control Solenoid Bleeder Plug, LH |
| 49022C | Ring, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH) |
| 49022D | Ring, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE, LH) |
| 49022E | Ring, O(REAR ABSORBER CONTROL SOLENOID VALVE) |
| 49030 | Valve Assy, Suspension Control Solenoid, RH |
| 49031D | Plug, Rear Suspension Control Solenoid Valve Beleeder |
| 49031E | Cap, Rear Suspension Control Solenoid Valve |
| 49031F | Ring, O NO.1(FOR REAR SUSPENSION CONTROL SOLENOID VALVE) |
| 49031G | Ring, O NO.2(FOR REAR SUSPENSION CONTROL SOLENOID VALVE) |
| 49031H | Ring, O NO.3(FOR REAR SUSPENSION CONTROL SOLENOID VALVE) |
| 49040 | Valve Assy, Suspension Control Solenoid, LH |
| 49100 | Valve Assy, Suspension Control |
| 49101 | Valve Sub-assy, Suspension Control |
| 49102 | Pipe Sub-assy, Suspension Control Pump Accumulator |
| 49102A | Ring, O(FOR SUSPENSION CONTROL PUMP ACCMULATOR PIPE) |
| 49103 | Bracket Sub-assy, Suspension Control Pump Accumulator |
| 49103A | Bush, NO.1(FOR SUSPENSION CONTROL PUMP ACCUMULATOR) |
| 49103B | Bush, NO.2(FOR SUSPENSION CONTROL PUMP ACCUMULATOR) |
| 49103C | Spacer, NO.1(FOR SUSPENSION CONTROL PUMP ACCUMULATOR) |
| 49103D | Spacer, NO.2(FOR SUSPENSION CONTROL PUMP ACCUMULATOR) |
| 49107 | Protector Assy, Suspension Control Hose |
| 49110B | Plug, Front Suspension Control Valve Breather |
| 49110D | Ring, O(FOR SUSPENSION CONTROL VALVE) |
| 49111C | Plug, Straight(FOR SUSPENSION CONTROL VALVE HOUSING) |
| 49111D | Ring, O(FOR SUSPENSION CONTROL VALVE HOUSING) |
| 49112D | Bracket, Front Suspension Control Valve |
| 49112E | Spacer(FOR FRONT SUSPENSION CONTROL BRACKET) |
| 49112F | Spacer(FOR FRONT SUSPENSION CONTROL VALVE BRACKET) |
| 49113 | Bracket, Front Suspension Control Valve, NO.2 |
| 49114 | Bracket, Suspension Control Valve, NO.3 |
| 49115B | Grommet, Suspension Control Valve, NO.3 |
| 49115C | Grommet, Suspension Control Valve, NO.4 |
| 49116B | Grommet, Suspension Control Valve, NO.2 |
| 49117 | Bracket, Suspension Control Valve, NO.4 |
| 49118 | Stay, Front Suspension Control Valve Housing, NO.1 |
| 49119 | Stay, Front Suspension Control Valve Housing, NO.2 |
| 49125 | Grommet, Rear Suspension Control Valve, NO.2 |
| 49126 | Plug, Absorber Control Oil Filter |
| 49130 | Accumulator Assy, Suspension Control Pump |
| 49130C | Seat, Union(FOR SUSPENSION CONTROL PUMP ACCUMULATOR) |
| 49130D | Plug, Suspension Control Pump Accumulator Breather |
| 49130E | Ring, O(FOR SUSPENSION CONTROL PUMP ACCUMULATOR) |
| 49135 | Grommet, Suspension Control Pump Accumulator |
| 49136 | Spring, Absorber Control Oil Filter |
| 49137 | Filter, Absorber Control Oil |
| 49141 | Accumulator, Front Suspension Control |
| 49142 | Bracket, Front Suspension Control Accumulator |
| 49143 | Bracket, Suspension Control Accumulator, NO.2 |
| 49144 | Bracket, Suspension Control Accumulator, NO.3 |
| 49146 | Accumulator, Suspension Control Return |
| 49149 | Bracket, Suspension Control Return Accumlator |
| 49159B | Label, Suspension Control Accumulator |
| 49161 | Hose, Suspension Control Pressure, NO.1 |

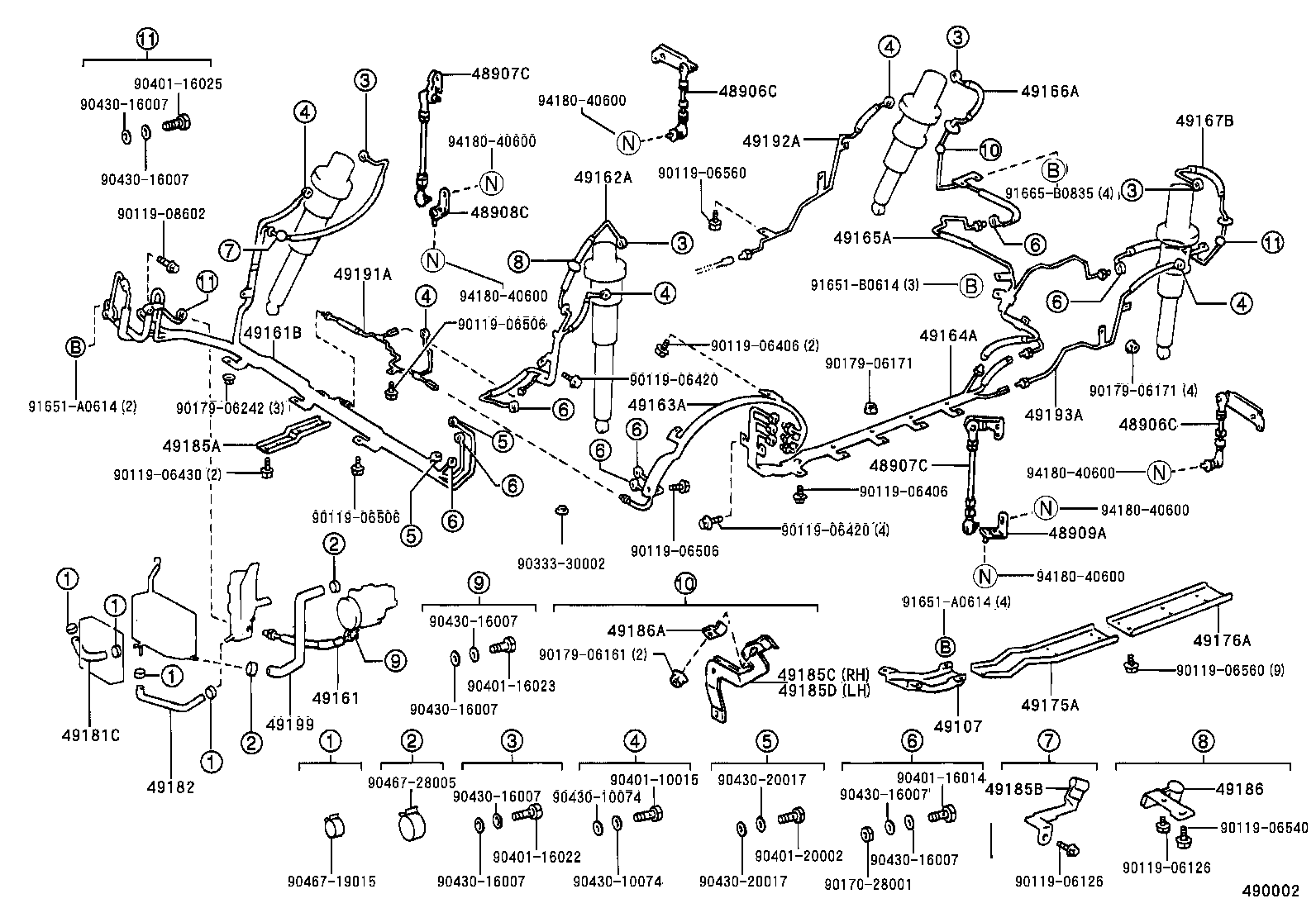

| 49161B | Tube Assy, Suspension Control Pressure |
| 49162A | Tube Assy, Suspension Control Pressure, NO.2 |
| 49163A | Tube Assy, Suspension Control Pressure, NO.3 |
| 49164A | Tube Assy, Suspension Control Pressure, NO.4 |
| 49165A | Tube Assy, Suspension Control Pressure, NO.5 |
| 49166 | Hose, Suspension Control Pressure, NO.6 |
| 49166A | Tube Assy, Suspension Control Pressure, NO.7 |
| 49167B | Tube Assy, Suspension Control Pressure NO.8 |
| 49169A | Bolt, Union, NO.1(FOR SUSPENSION CONTROL PRESSURE HOSE) |
| 49175A | Protector, Suspension Control Tube, NO.1 |
| 49176A | Protector, Suspension Control Tube, NO.2 |
| 49181 | Hose, Suspension Control Return |
| 49181B | Bolt, Union(FOR SUSPENSION CONTROL RETURN HOSE) |
| 49181C | Hose, Suspension Control Return, NO.2 |
| 49181D | Gasket(FOR SUSPENSION CONTROL RETURN HOSE) |
| 49182 | Hose, Suspension Control Return, NO.3 |
| 49185A | Bracket, Suspension Control Tube, NO.1 |
| 49185B | Bracket, Suspension Control Hose, NO.2 |
| 49185C | Bracket, Suspension Control Hose, NO.4 |
| 49185D | Bracket, Suspension Control Hose, NO.5 |
| 49186 | Bracket, Suspension Control Hose, NO.3 |
| 49186A | Bracket, Suspension Control Hose, NO.6 |
| 49191 | Hose, Suspension Control Drain |
| 49191A | Tube, Suspension Control Drain, NO.1 |
| 49192A | Tube, Suspension Control Drain, NO.2 |
| 49193A | Tube, Suspension Control Drain, NO.3 |
| 49199 | Hose, Suspension Control Suction |
