Toyota Soarer

1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan

Discontinued model Data version 2001-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 3 illustrations

Illustrations

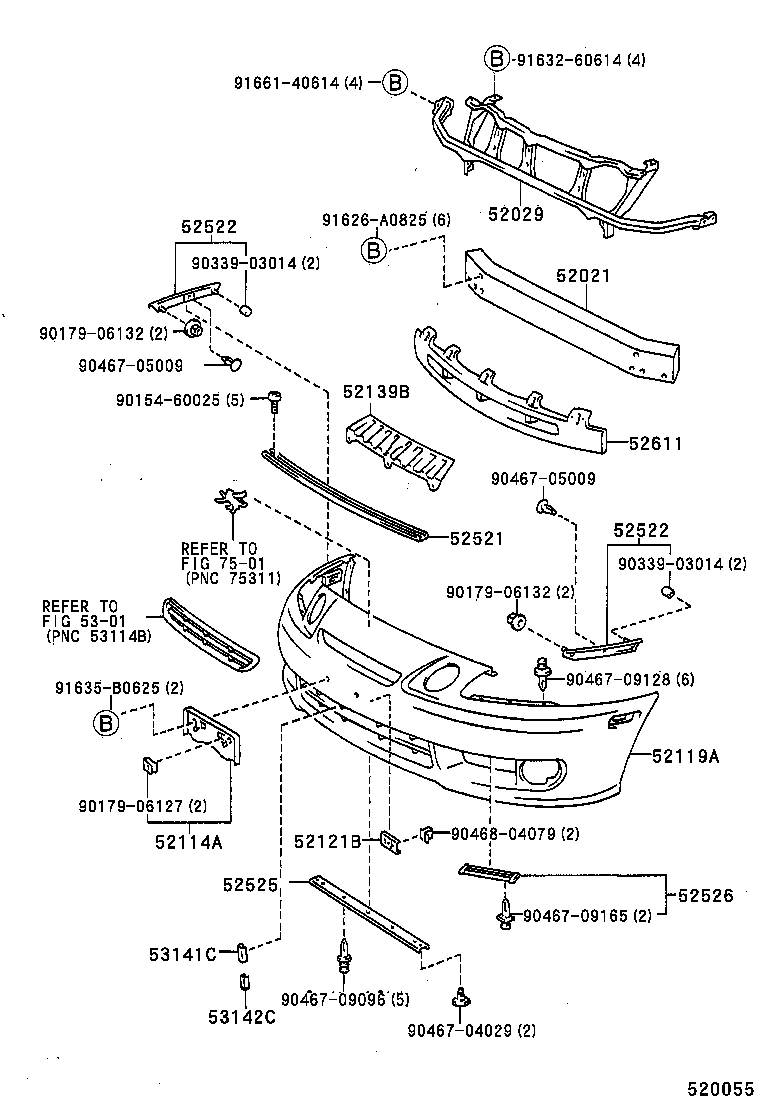

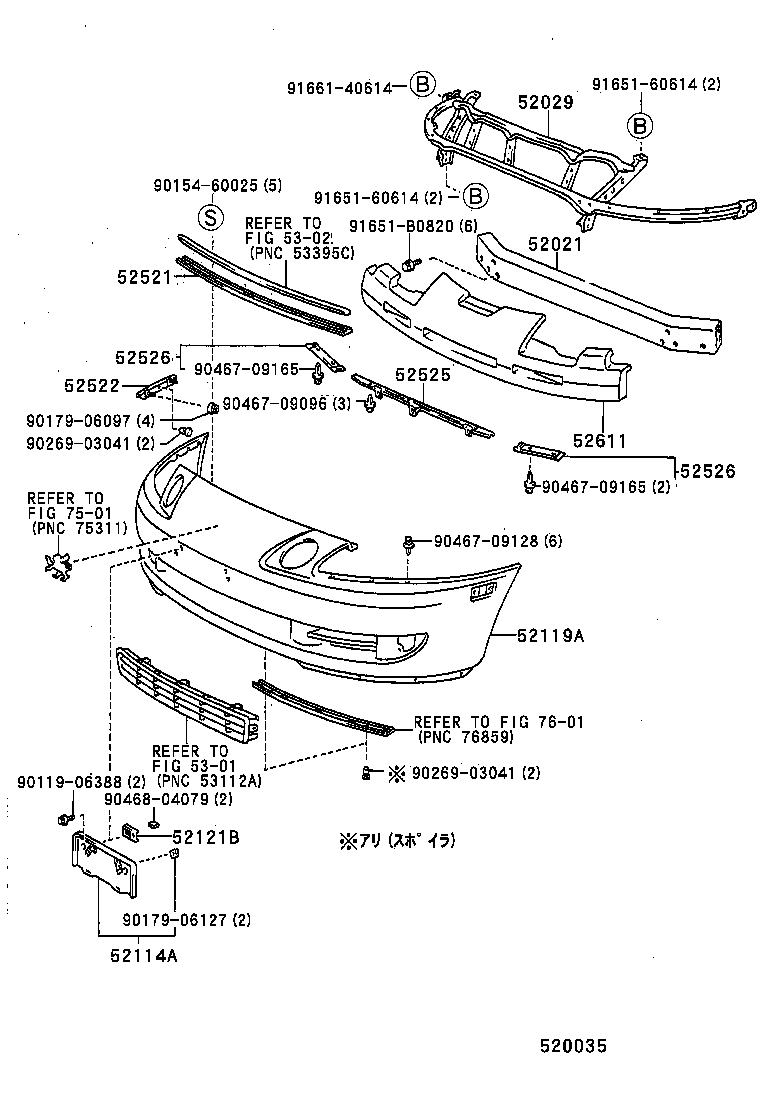

Figure 520039 520039 1991-05 → 1994-01 Figure 520035 520035 1994-01 → 1996-08 Figure 520055 520055 1996-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52139B Brace, Front Bumper, Center
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52527B Retainer, Front Bumper, Lower NO.2
52529A Retainer, Front Bumper, Lower Center NO.3
52611 Absorber, Front Bumper Energy
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
