Toyota Soarer

1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan

Discontinued model Data version 2001-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

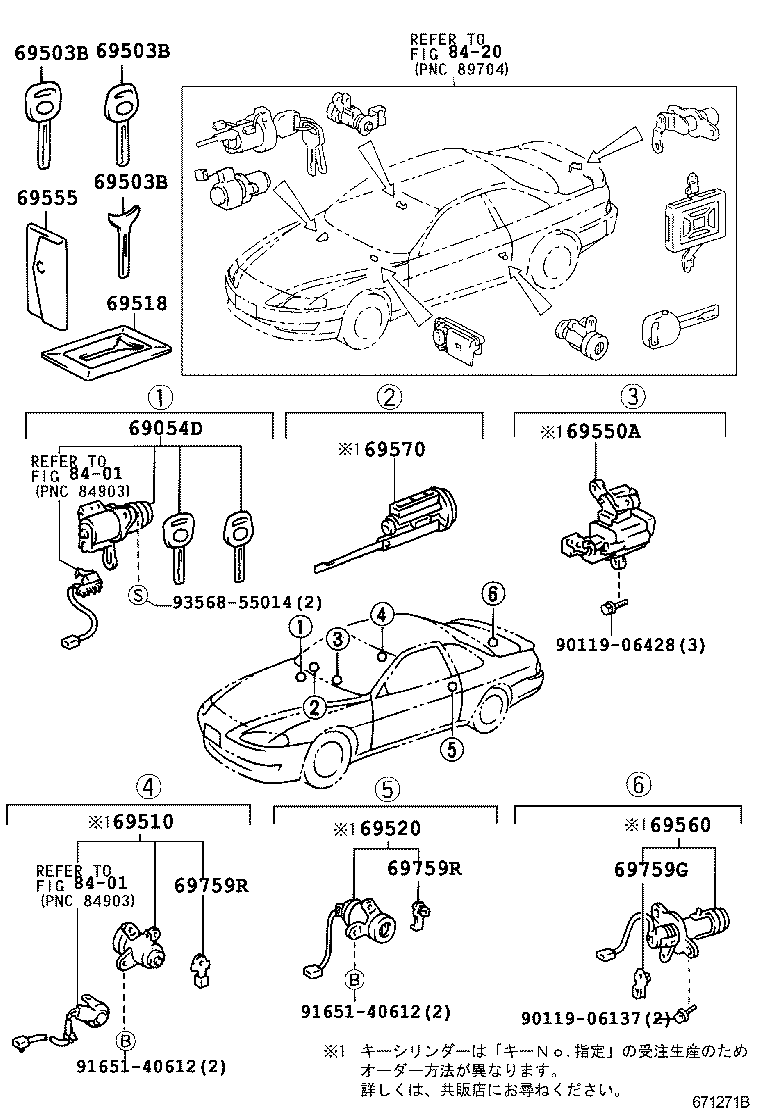

Figure 671270B 671270B 1991-05 → — Figure 671271B 671271B 1991-05 → —

Part groups

PNCDescription
69054D Cylinder & Key Set, Luggage Opener Cancel
69503 Cylinder Set, Lock
69503B Key, Cut
69510 Cylinder Assy, Front Door Lock, RH
69518 Card, Spare Key
69520 Cylinder Assy, Front Door Lock, LH
69550A Cylinder Assy, Glove Compartment Door Lock
69555 Cover, Key
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
