Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07
Wiring & Clamp
41 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

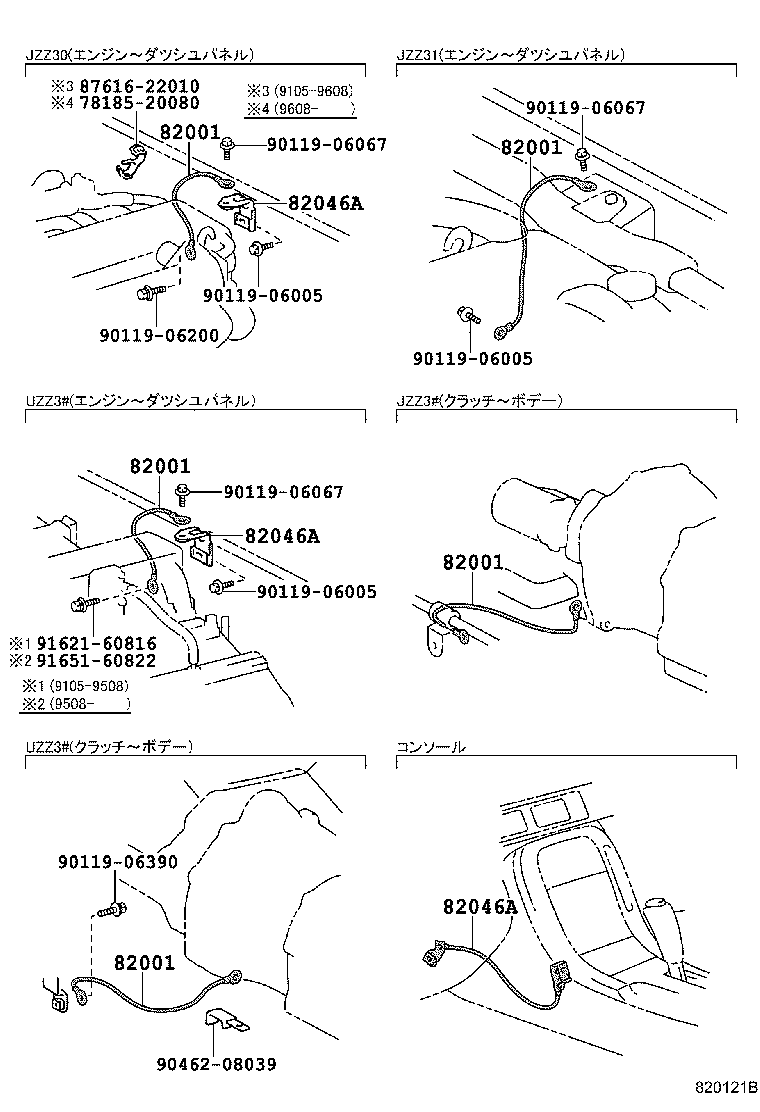

| 82001 | Cable, Bond, NO.1 |
| 82046A | Wire Sub-assy, Body Ground, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |

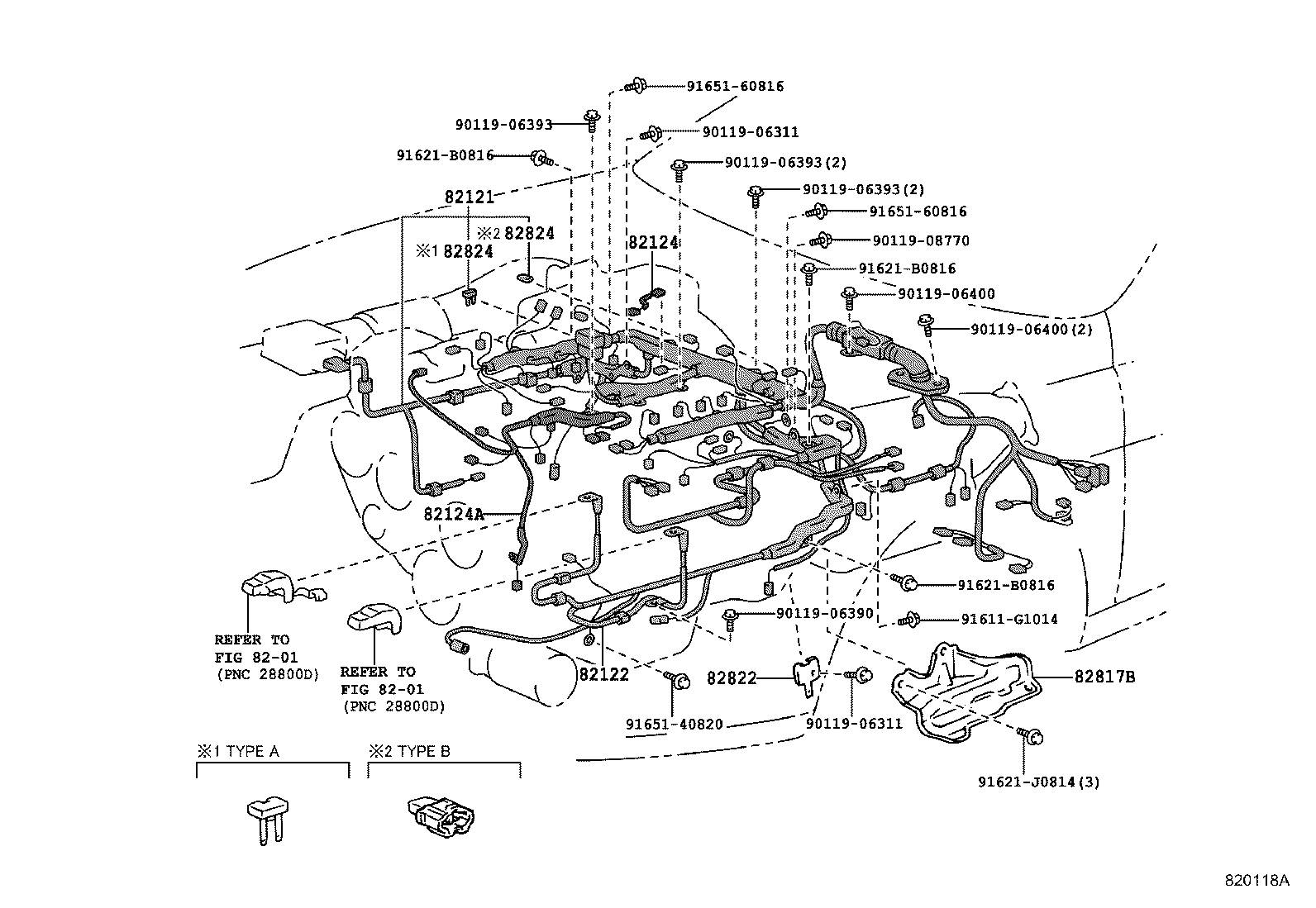

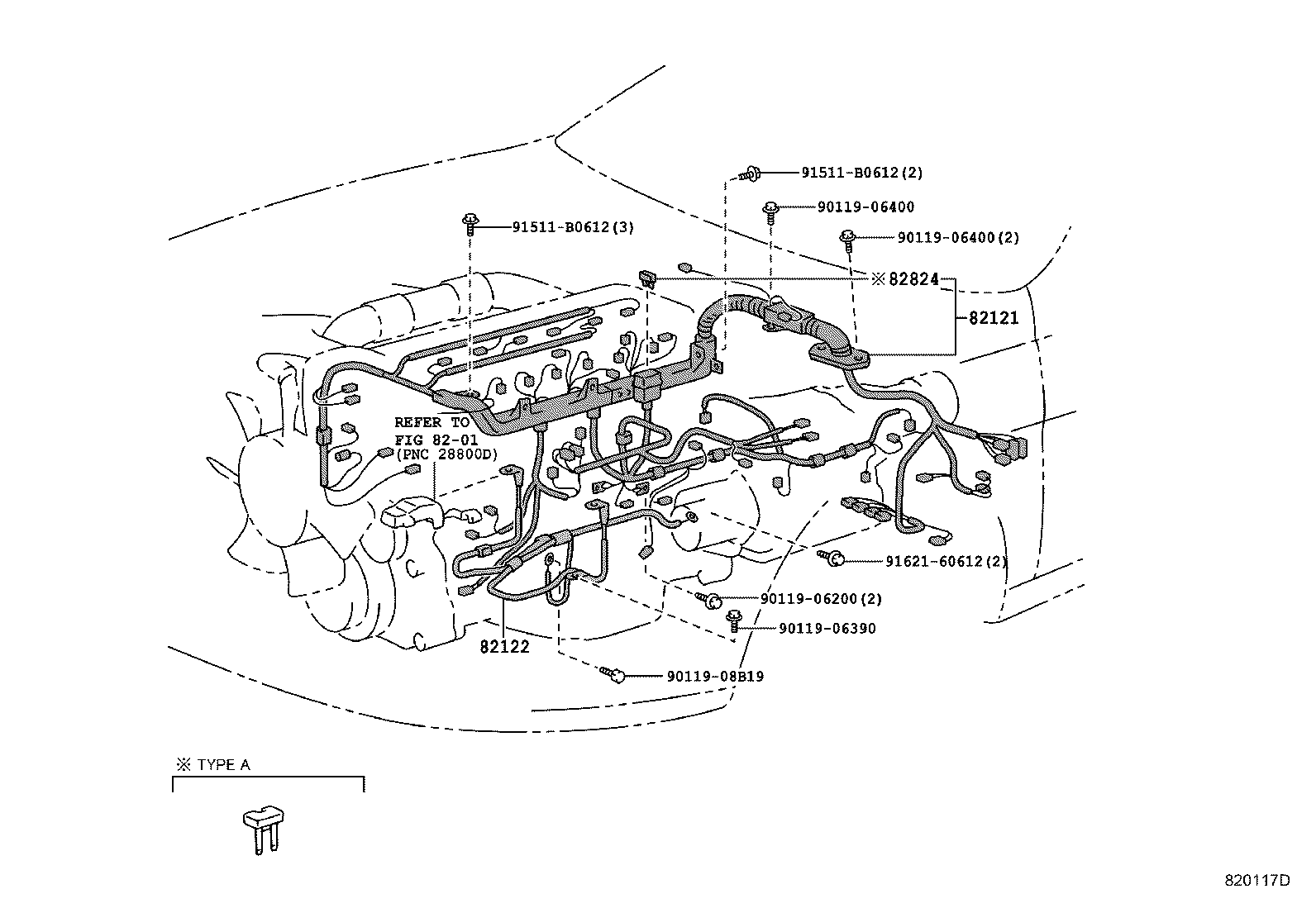

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82124 | Wire, Engine, NO.4 |
| 82124A | Wire, Engine, NO.5 |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82133 | Wire, Cowl, NO.3 |

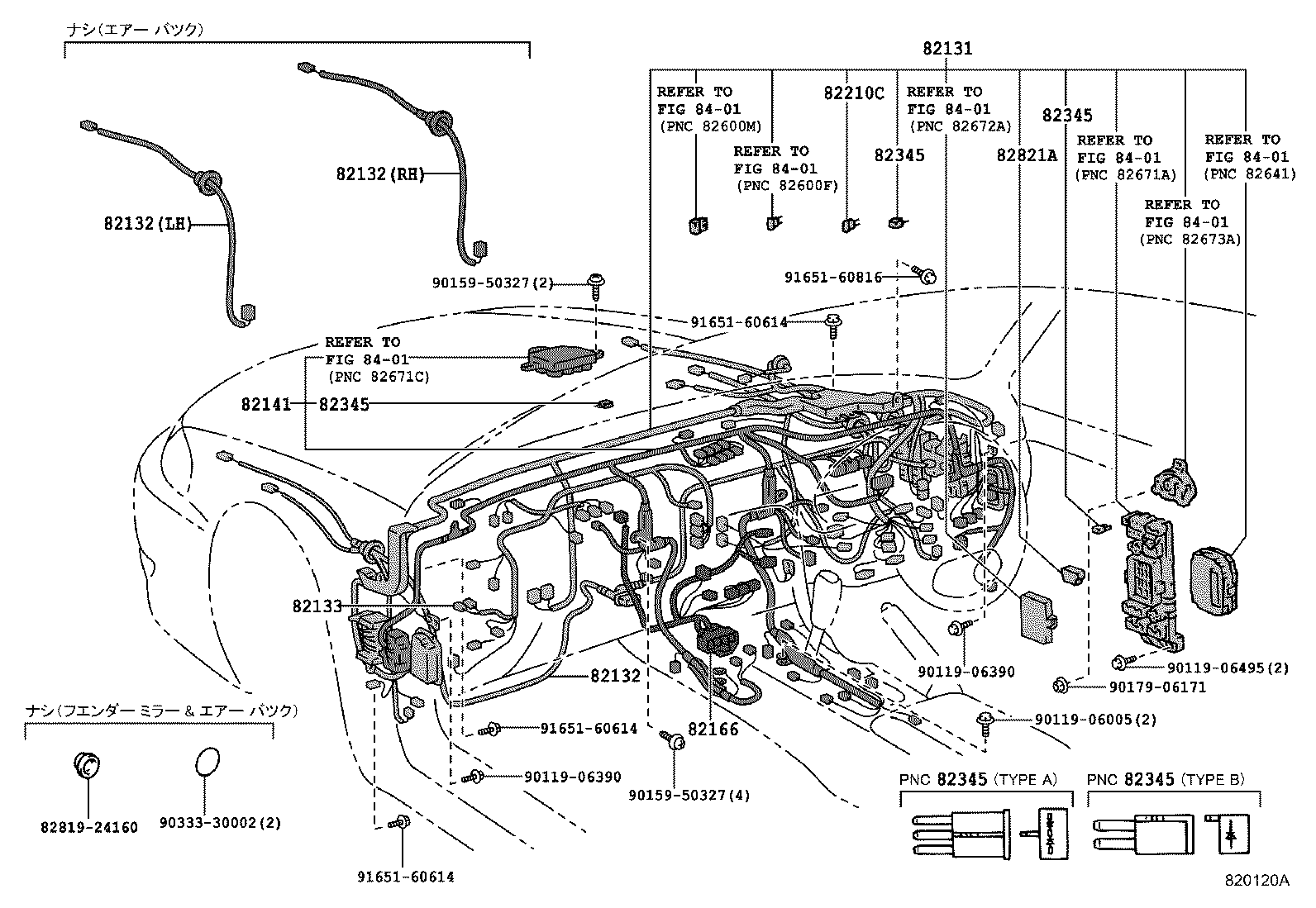

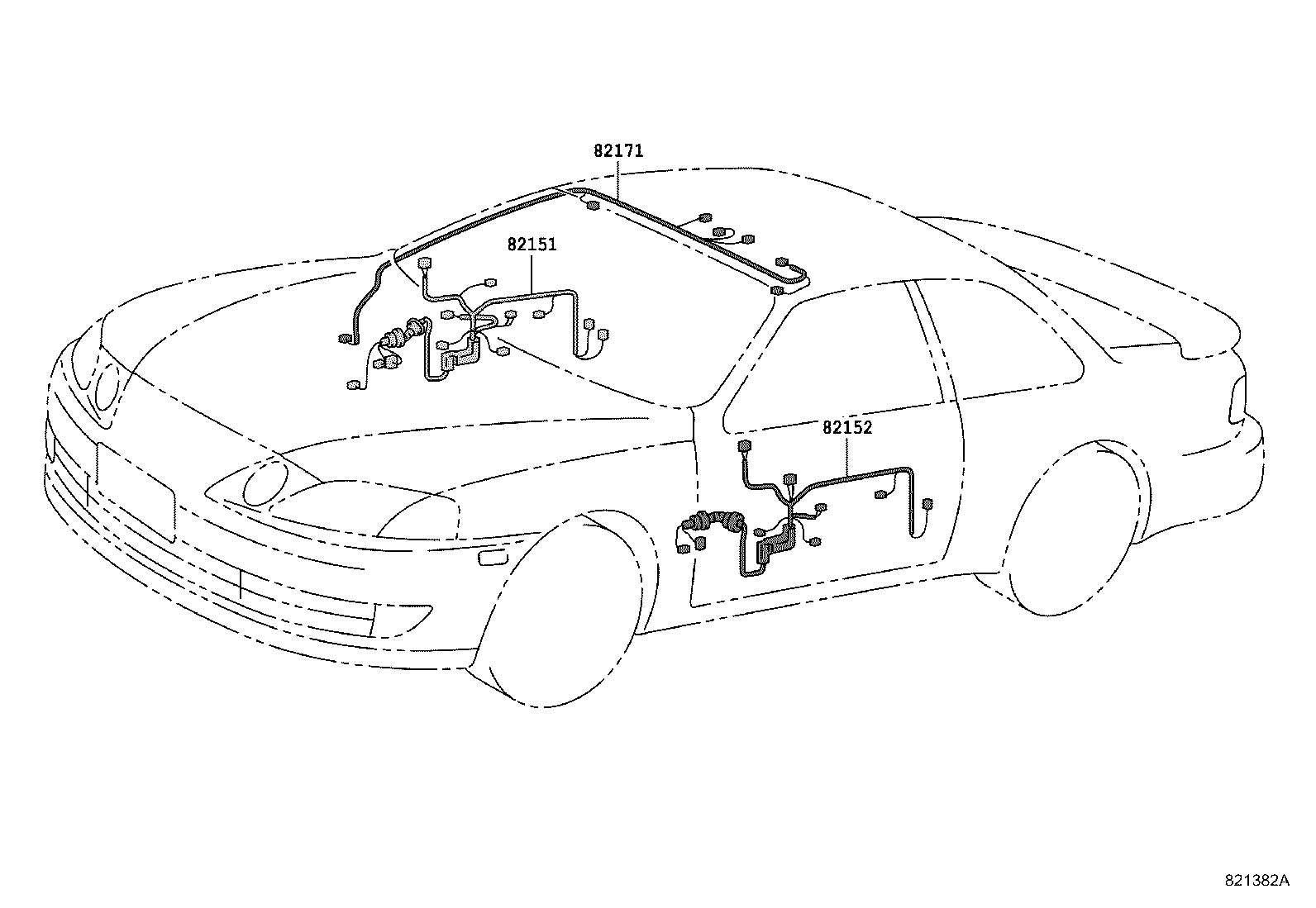

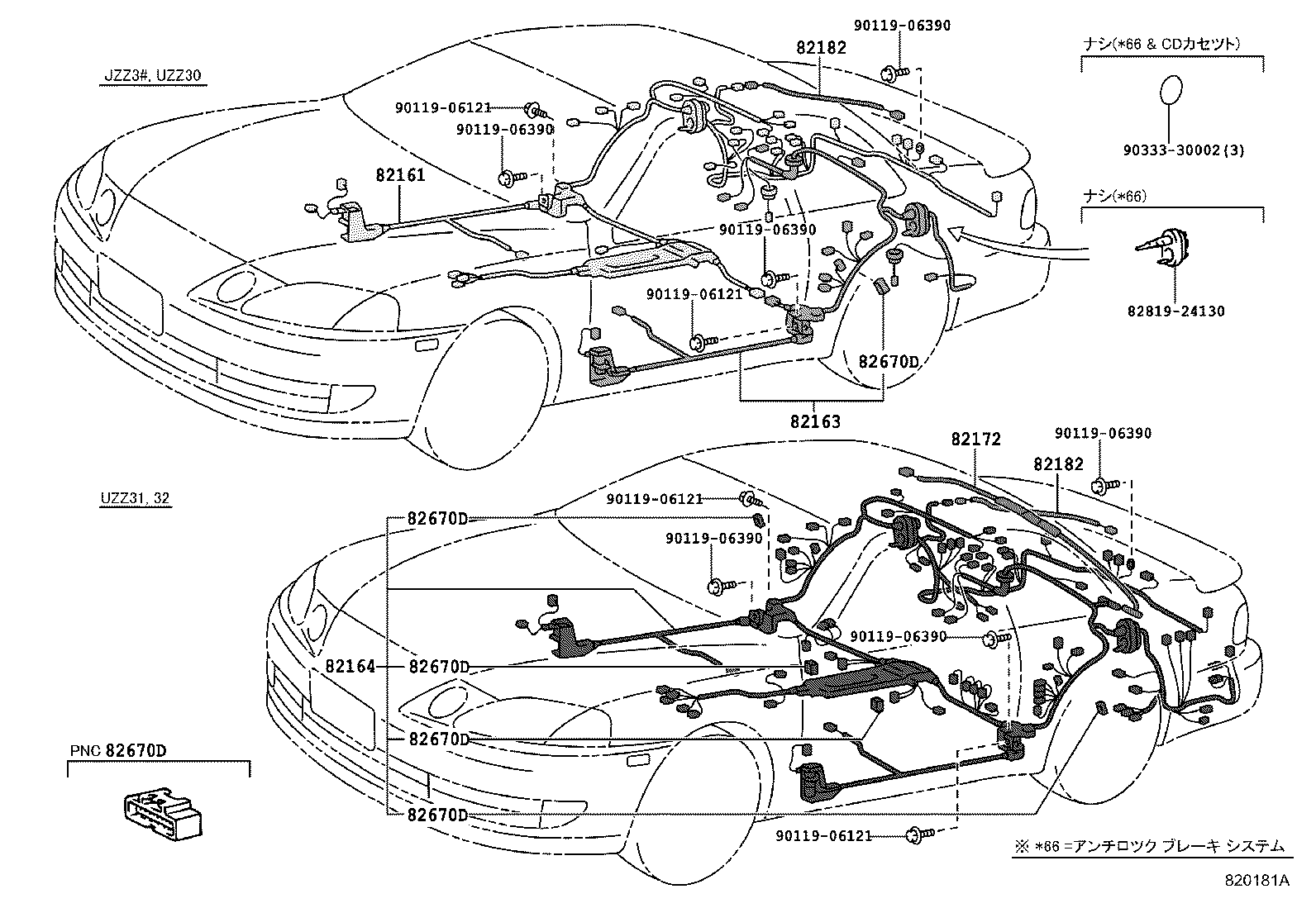

| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |
| 82164 | Wire, Frame |
| 82166 | Wire, Console Box |
| 82166B | Wire, Console Box Repair |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82182 | Wire, Luggage Room, NO.2 |

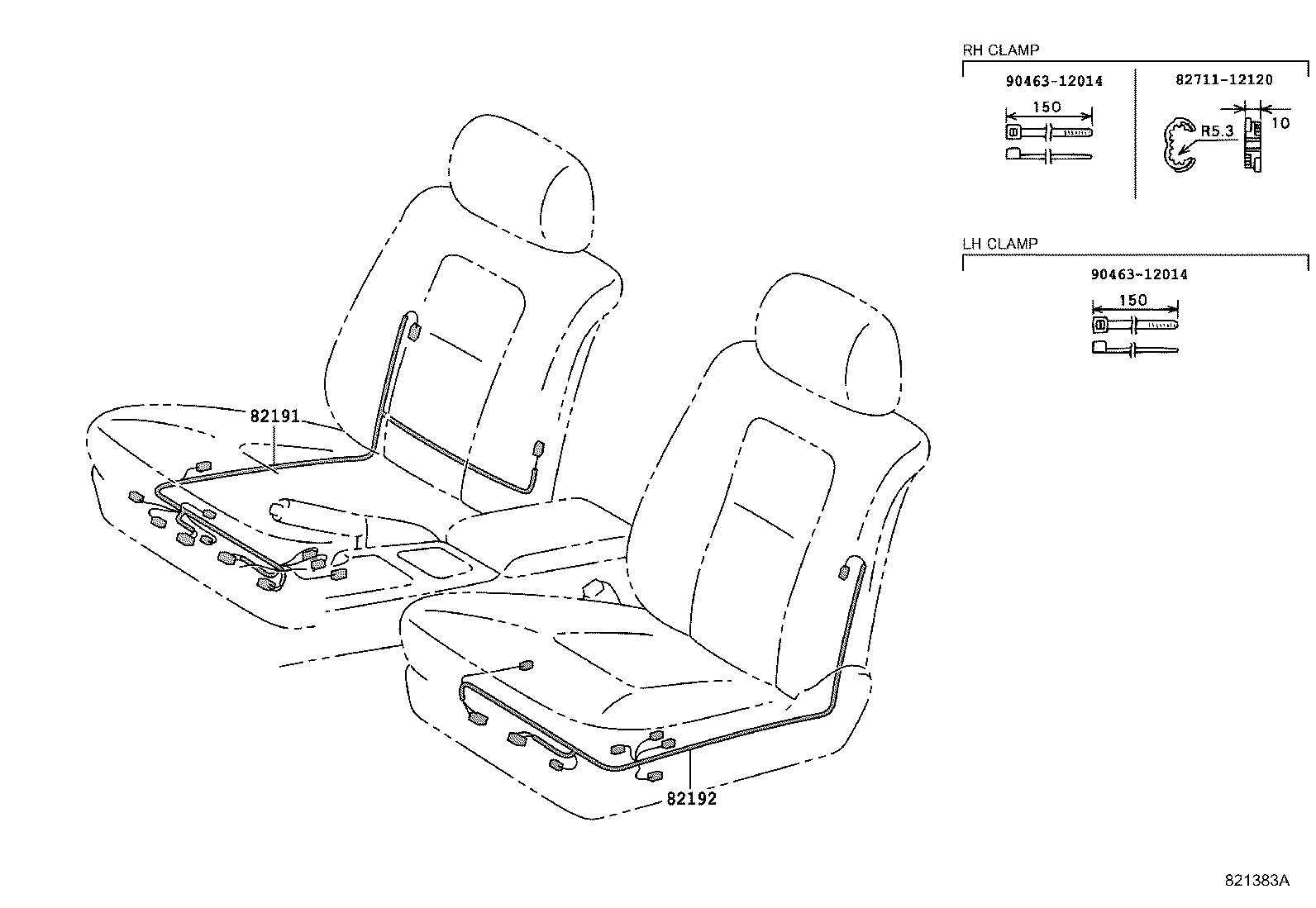

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82210C | Fusible Link |
| 82345 | Diode |
| 82670D | Block Assy, Junction,NO.2 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817B | Protector, Wiring Harness, NO.3 |

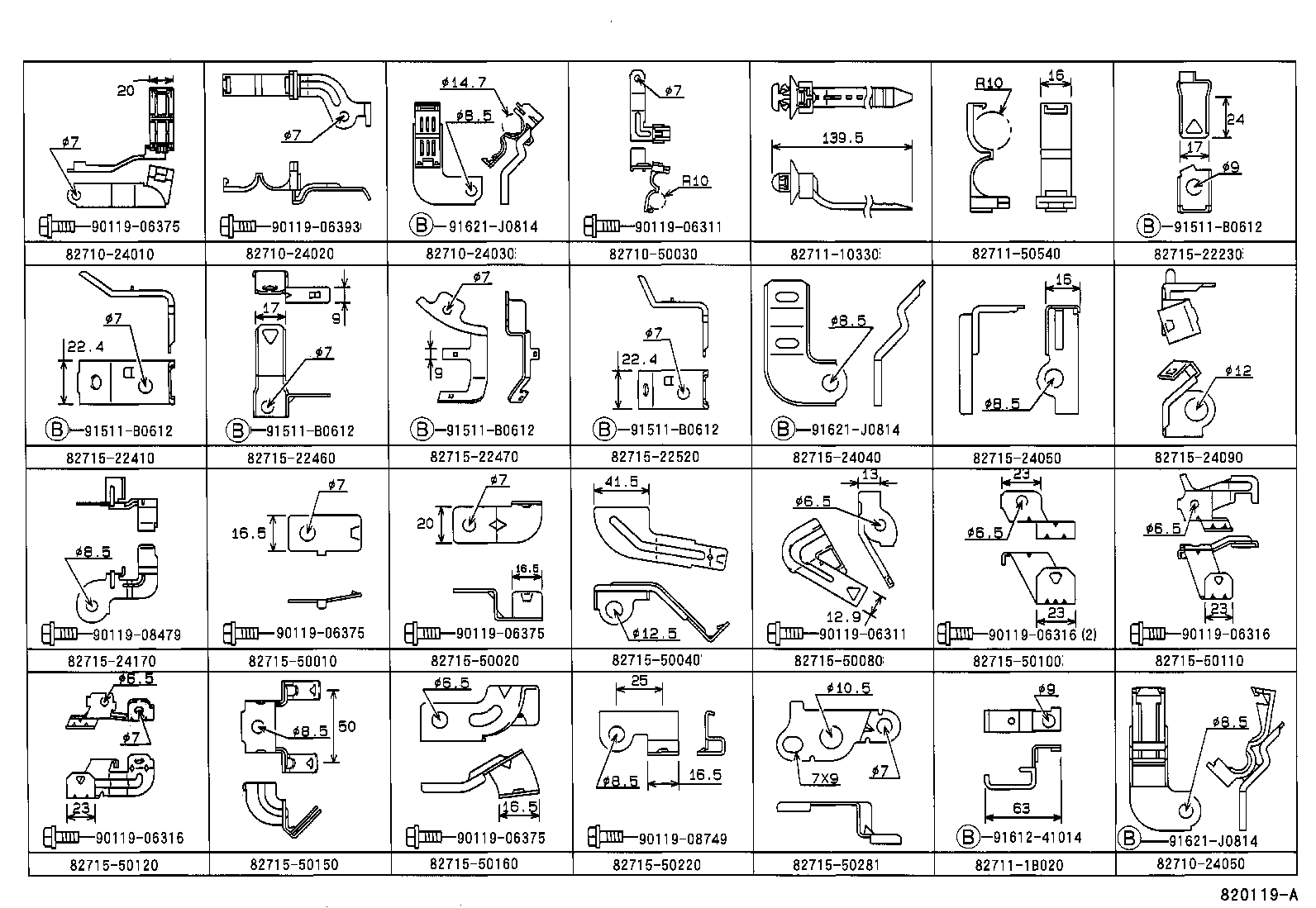

| 82821A | Cover, Connector |

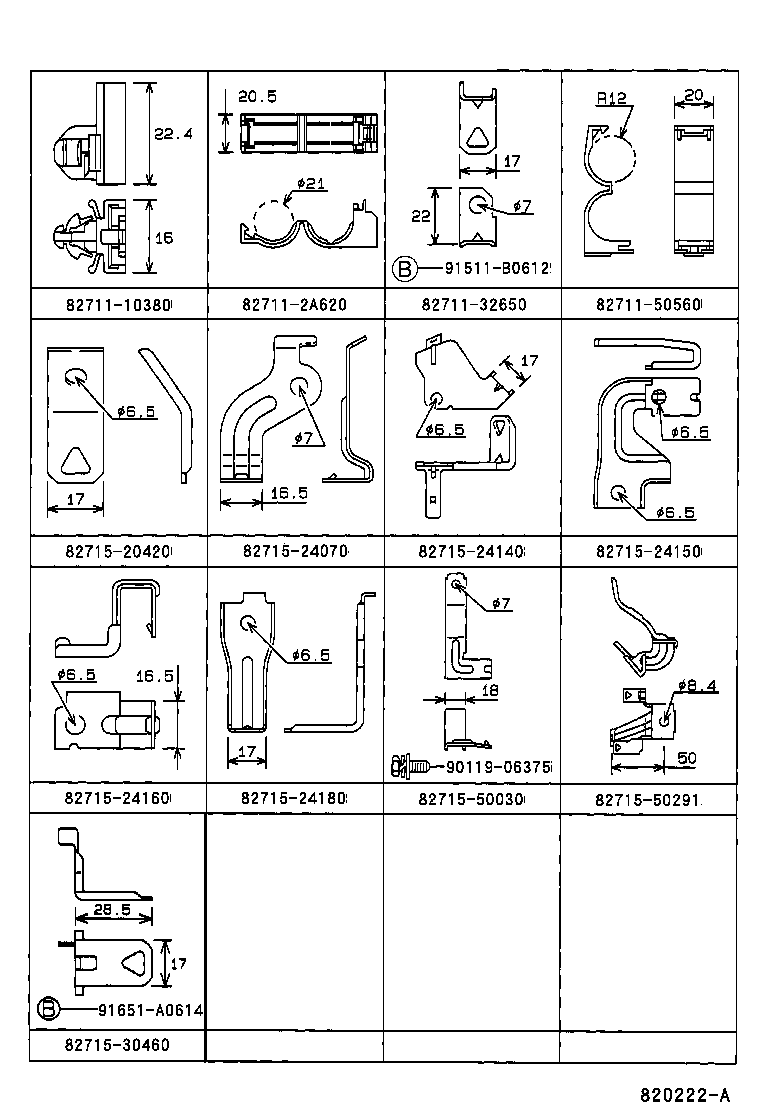

| 82822 | Bracket,Connector Block |
| 82823 | Cap, Terminal, NO.1 |
| 82823A | Cap, Terminal, NO.2 |
| 82824 | Connector, Wiring Harness |

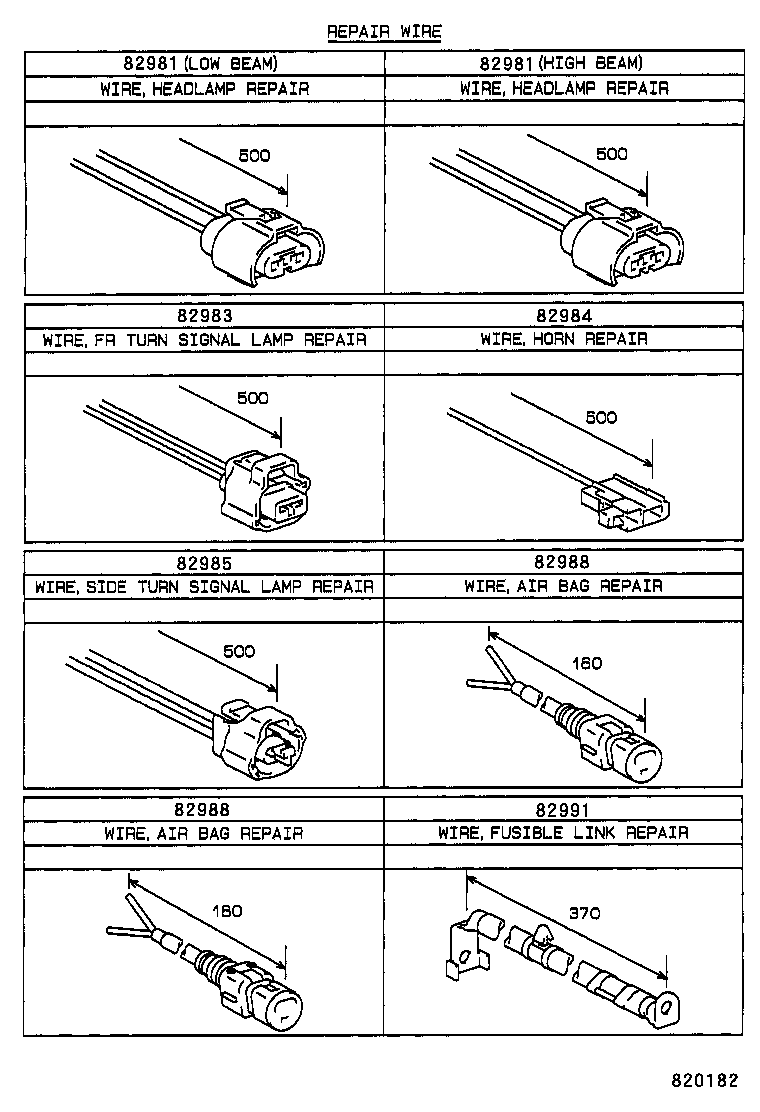

| 82981 | Wire, Headlamp Repair |
| 82983 | Wire, Front Turn Signal Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82985 | Wire, Side Turn Signal Lamp Repair |
| 82988 | Wire, Airbag Repair |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
