Toyota Soarer

1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan

Discontinued model Data version 2001-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

18 part groups · 16 illustrations

Illustrations

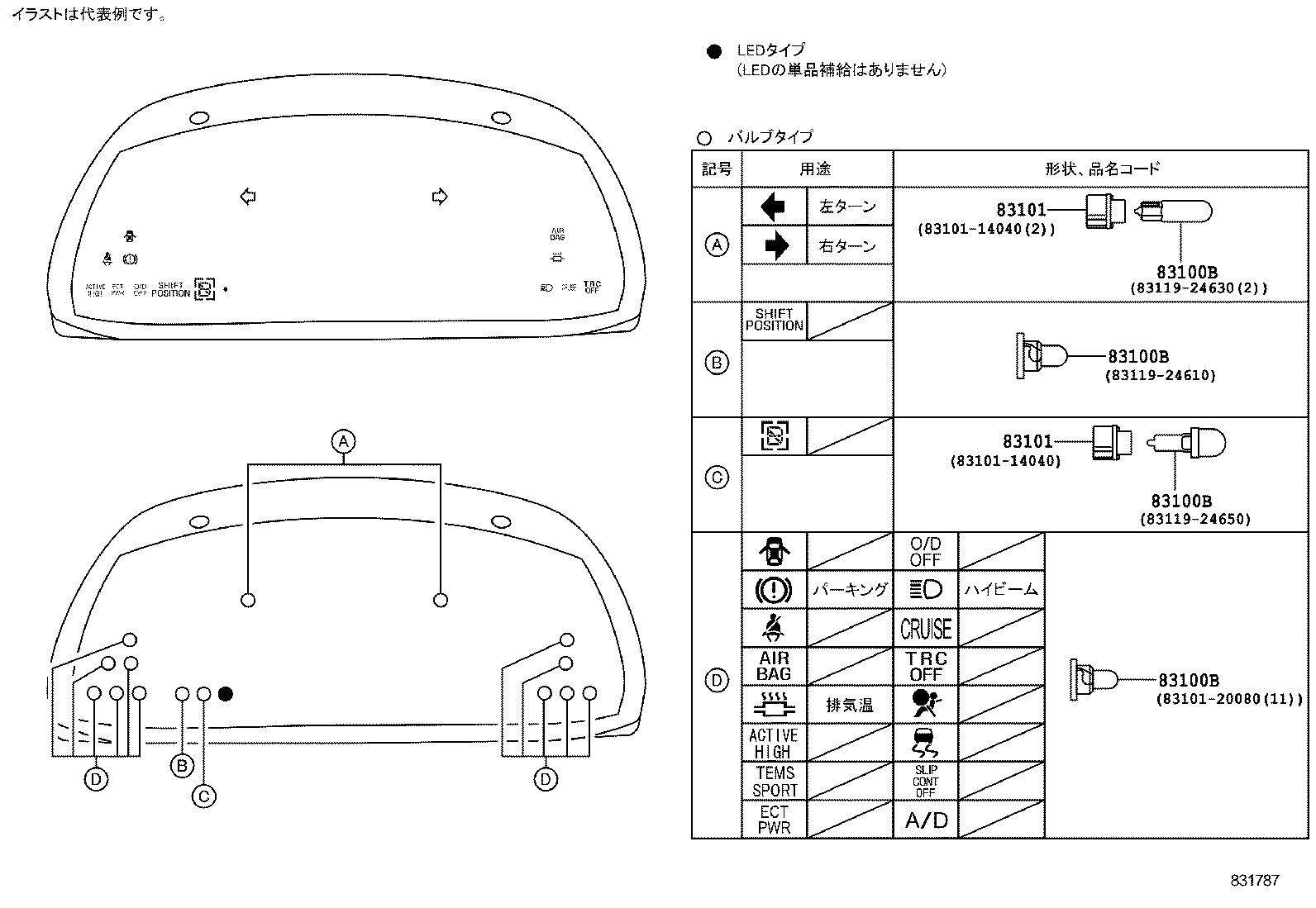

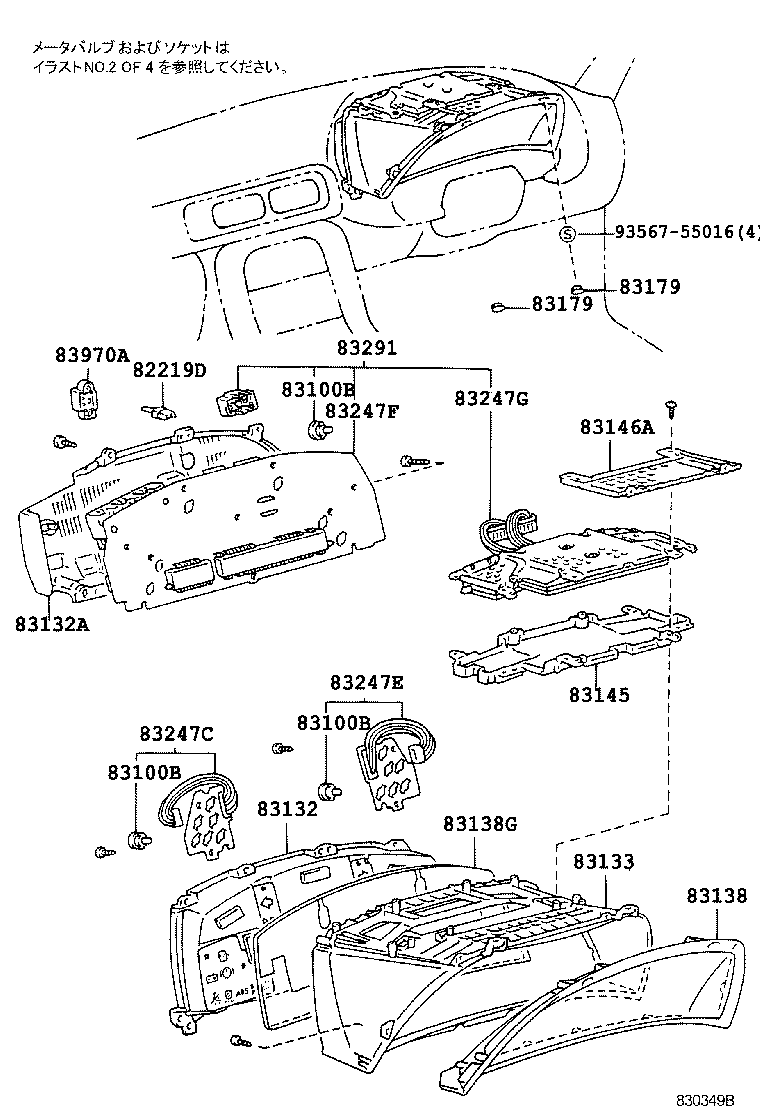

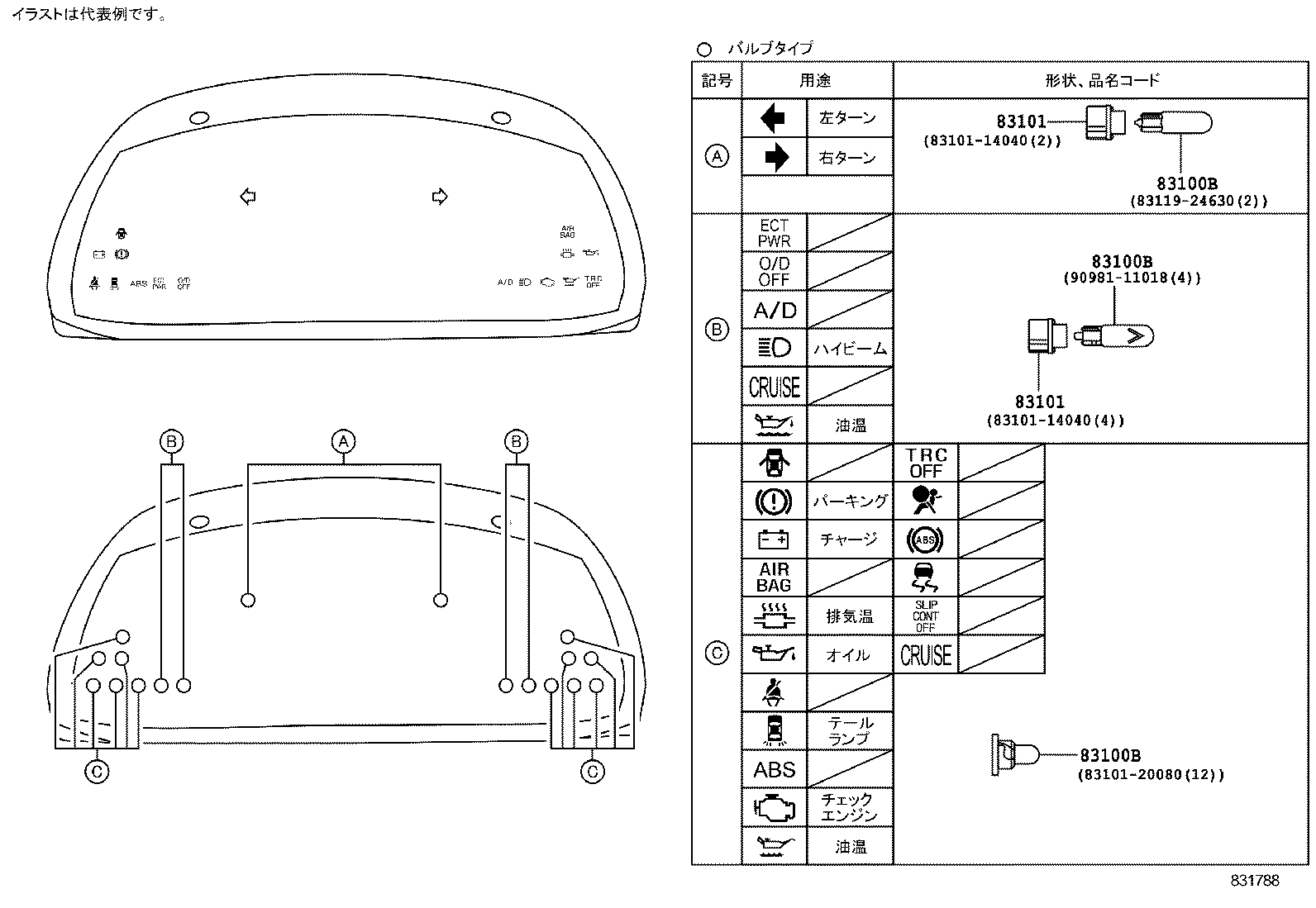

Figure 830348A 830348A 1991-05 → 1994-01 Figure 830348A 830348A 1991-05 → — Figure 830348A 830348A 1996-08 → — Figure 830349B 830349B 1991-05 → — Figure 830349B 830349B 1994-01 → — Figure 831787 831787 1991-05 → 1994-01 Figure 831787 831787 1991-05 → — Figure 831787 831787 1996-08 → — Figure 831788 831788 1991-05 → — Figure 831788 831788 1994-01 → — Figure 830058 830058 1991-05 → 1994-01 Figure 830058 830058 1991-05 → — Figure 830058 830058 1996-08 → — Figure 830059 830059 1991-05 → — Figure 830059 830059 1994-01 → — Figure 830060 830060 1991-05 → —

Part groups

PNCDescription
82219D Wire, Sensor
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83138G Glass, Combination Meter
83145 Lens, Meter, NO.1
83146A Cover, Speedmeter
83179 Cover, Combination Meter, Hole
83181A Sensor, Speedometer
83247C Plate, Mater Circuit, NO.3
83247E Plate, Mater Circuit, NO.4
83247F Plate, Meter Circuit, NO.1 (FOR COMPUTER)
83247G Plate, Meter Circuit, NO.2 (FOR COMPUTER)
83291 Computer, Combination Meter
83970A Alarm Assy, Speed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
