Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07
Switch & Relay & Computer
106 part groups · 14 illustrations
Illustrations
Part groups

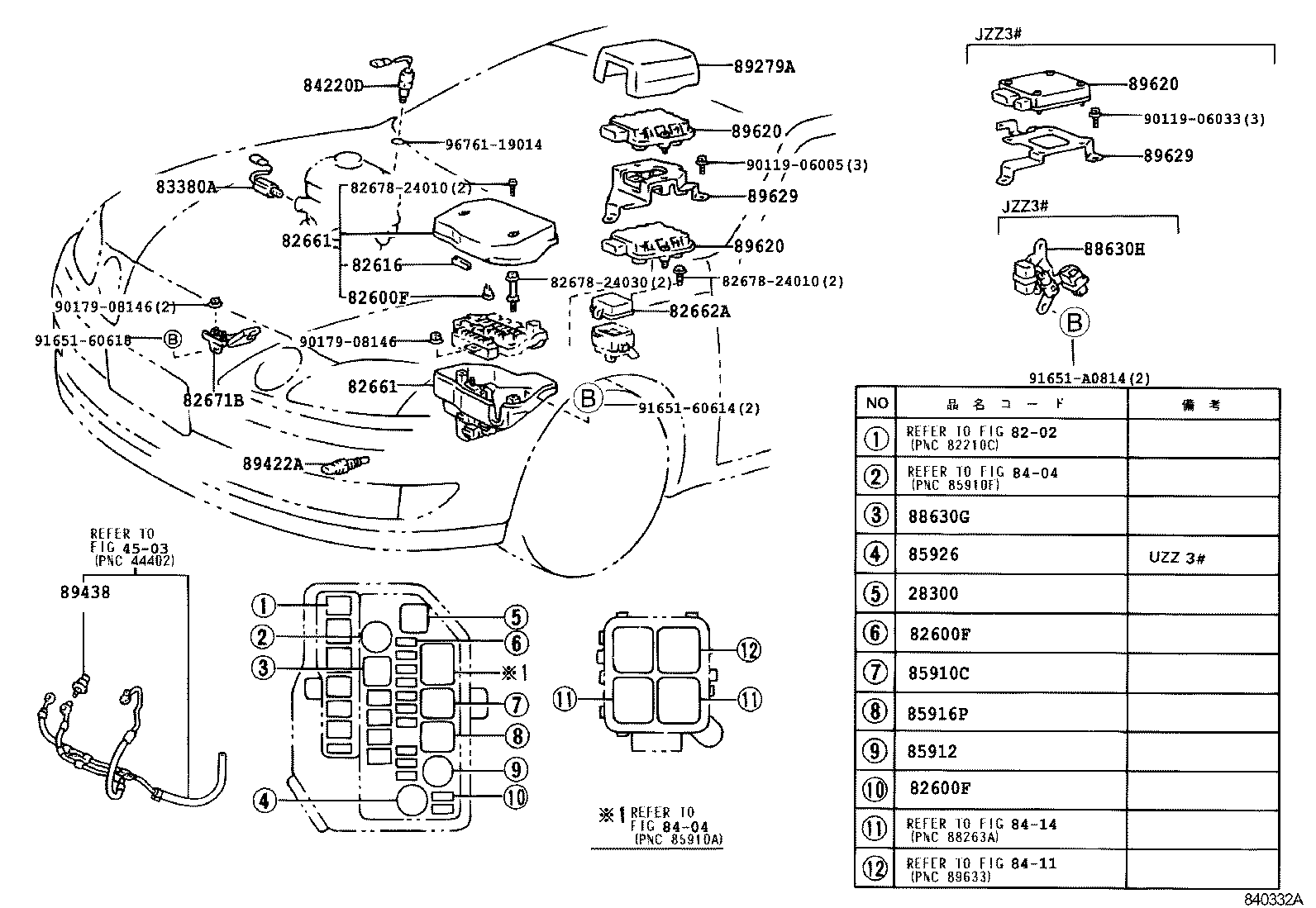

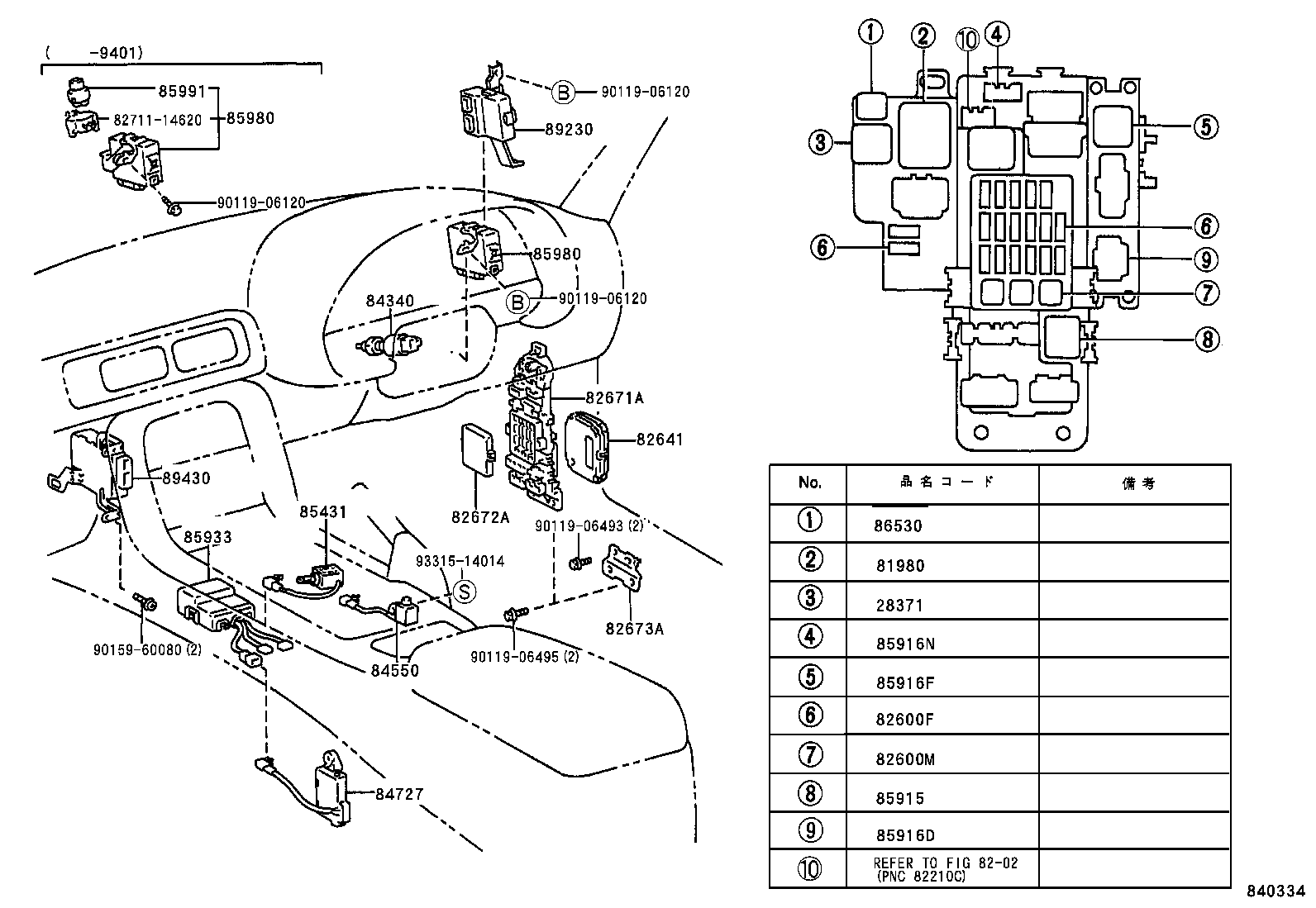

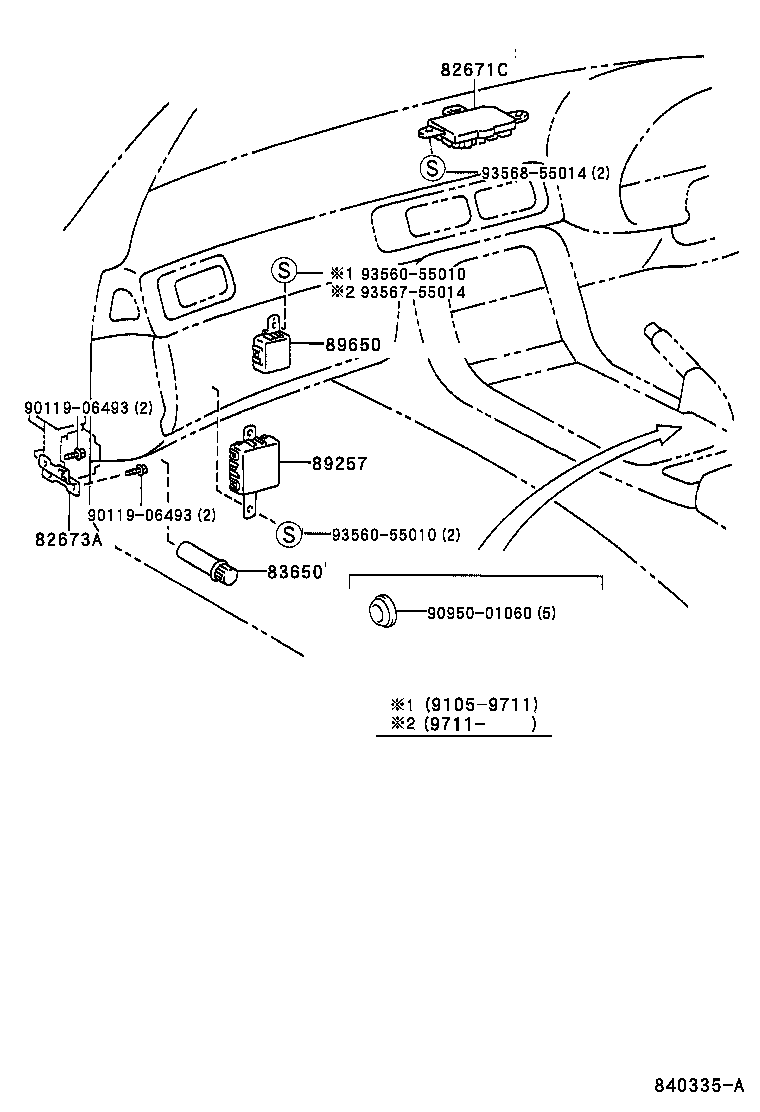

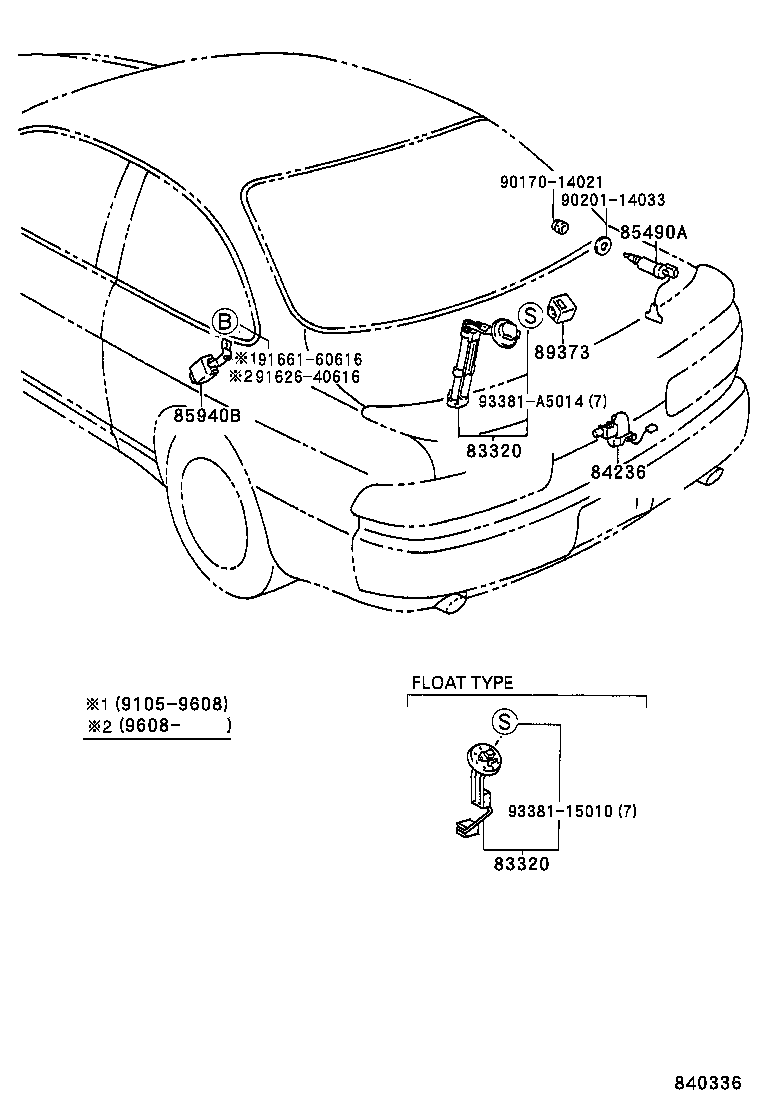

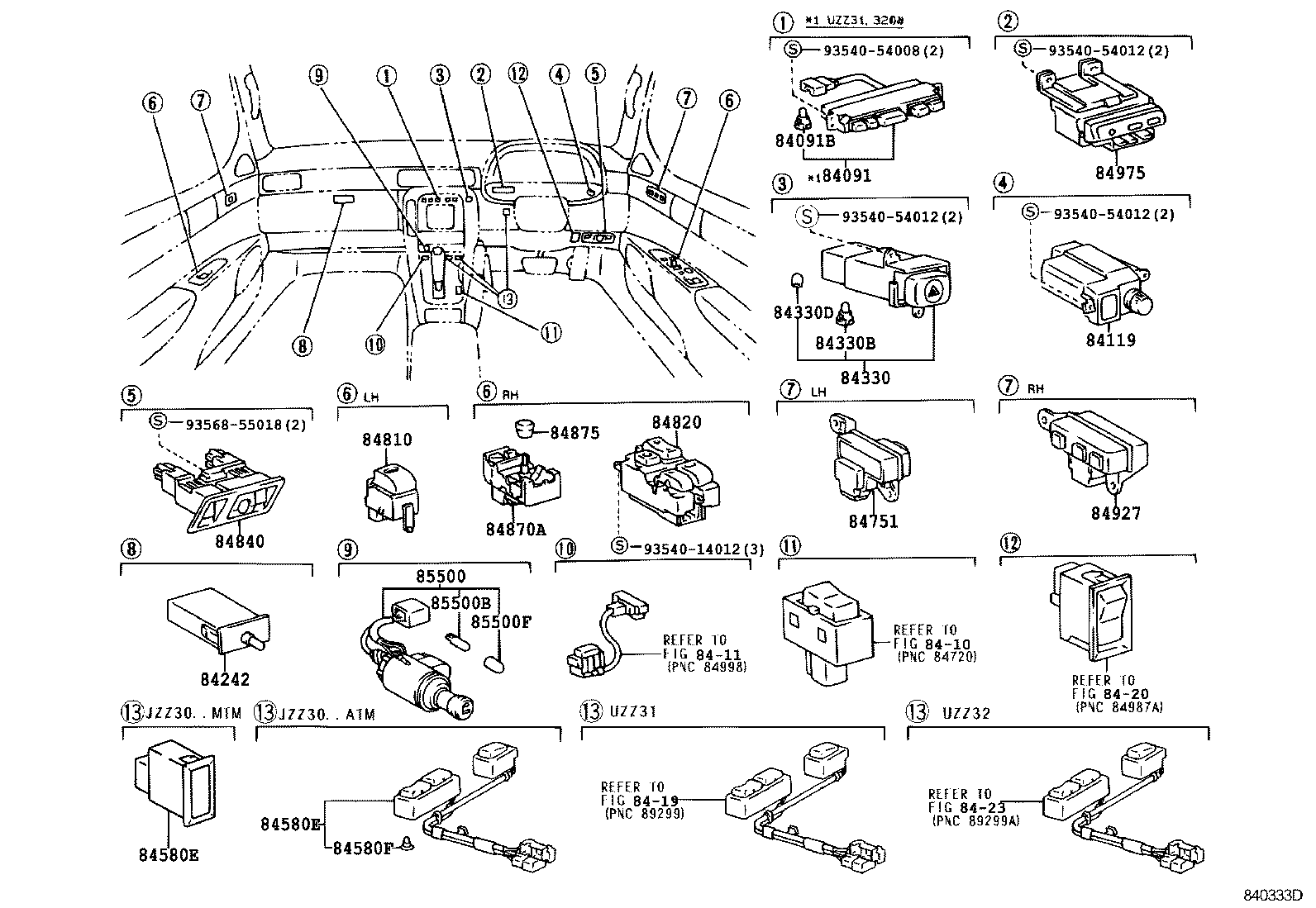

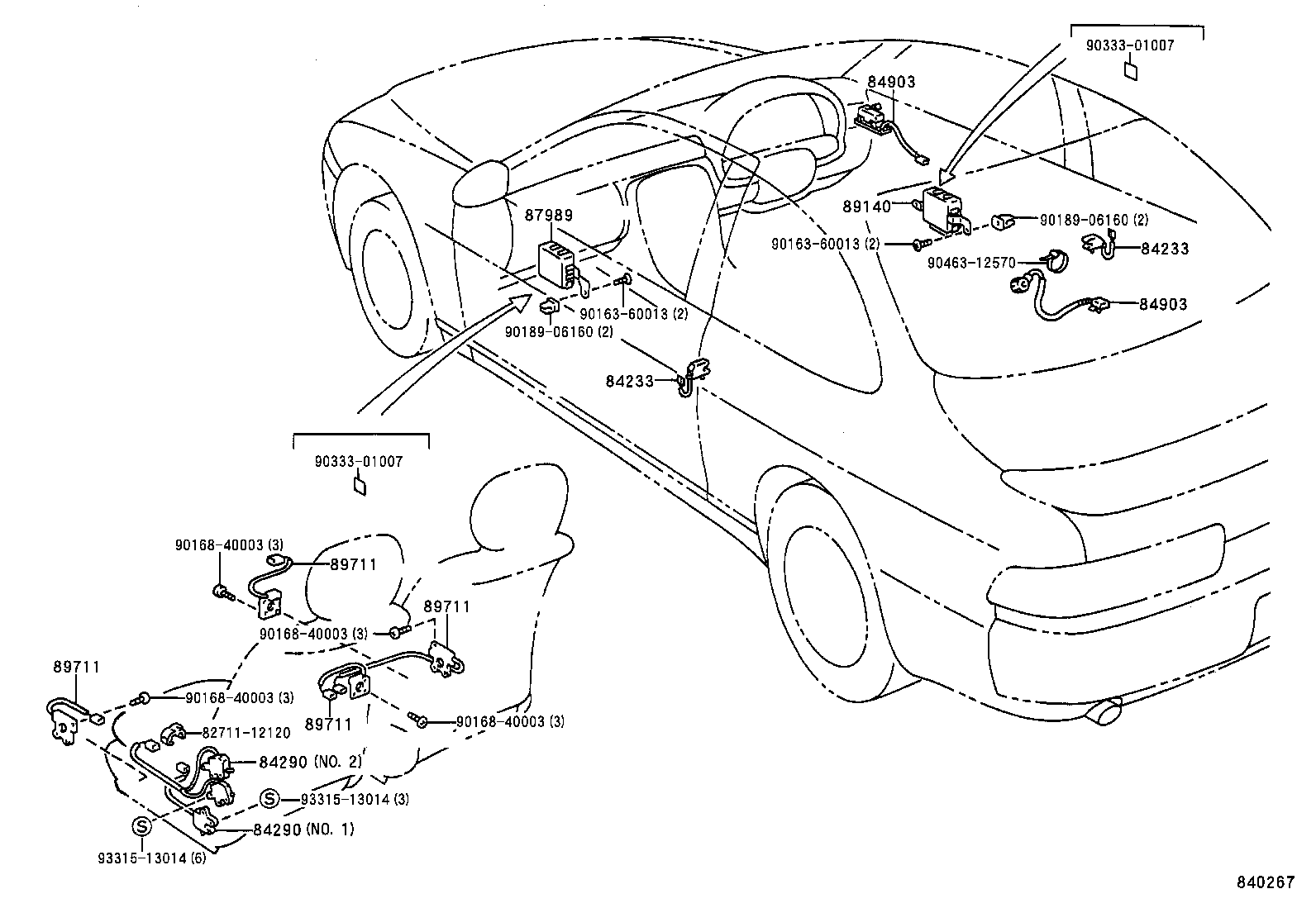

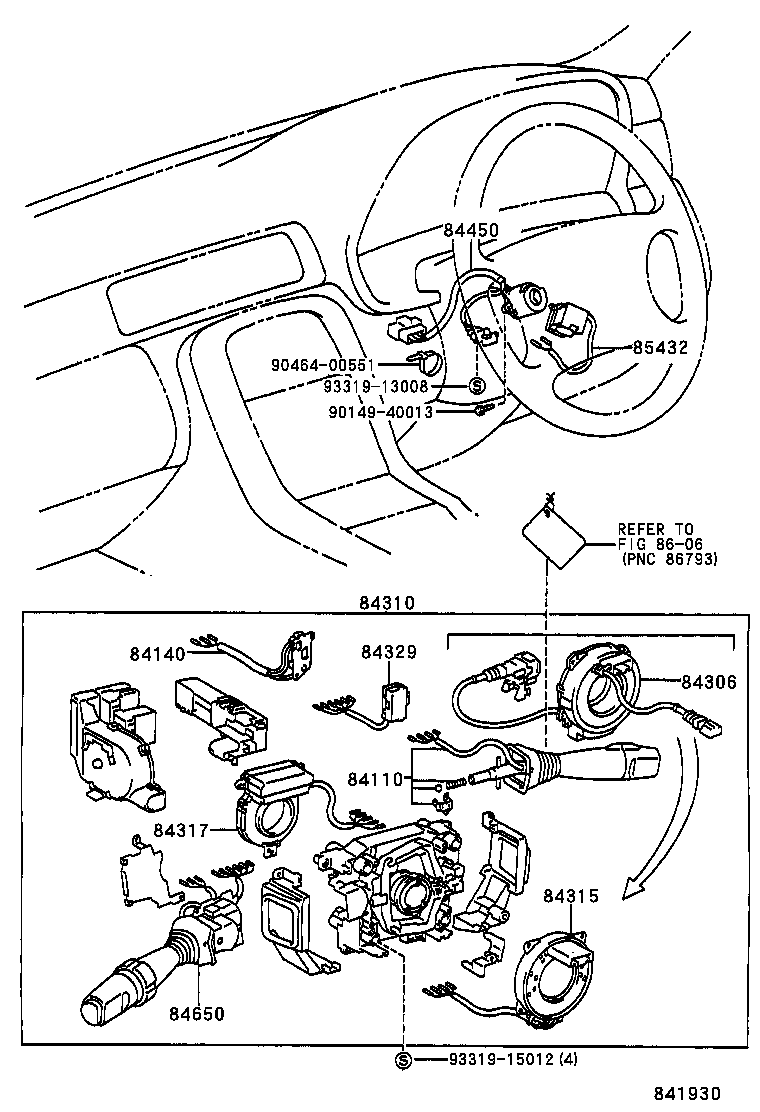

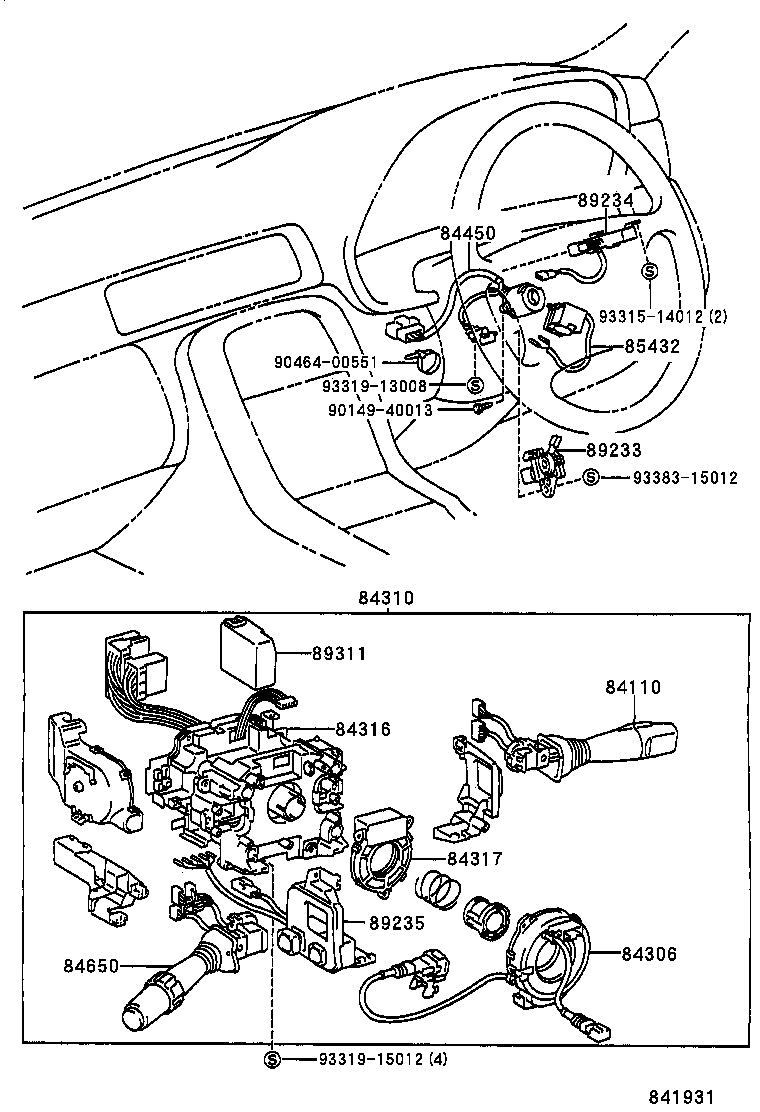

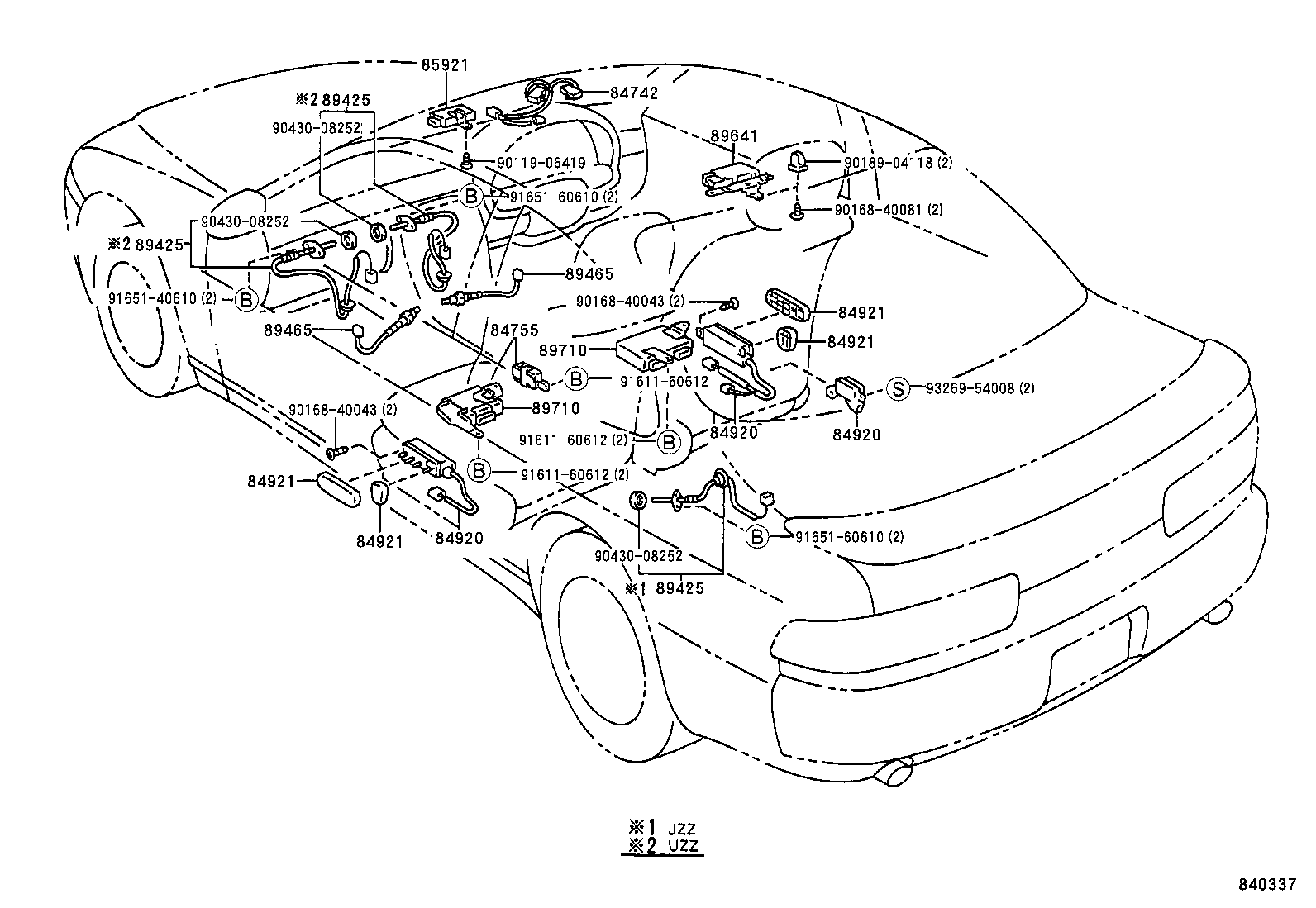

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82671A | Block, Junction |
| 82671B | Block, Junction |
| 82671C | Block, Junction |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83380A | Switch Assy, Pressure |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84091 | Switch Set, Satellite |
| 84091B | Bulb, Satellite Switch |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84220D | Switch Assy, Brake Differential Valve |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84242 | Switch, Glove Box Lamp |
| 84290 | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84315 | Slipring, Horn Contact |
| 84316 | Unit, Turn Signal |
| 84317 | Sensor, Steering Position |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84330D | Cap, Hazard Warning Switch Bulb |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84580E | Switch Assy, Throttle Position |
| 84580F | Bulb, Throttle Position Switch |
| 84650 | Switch Assy, Windshield Wiper |
| 84727 | Switch, Shift Lock Control |
| 84742 | Switch, Slide Roof Limit |
| 84751 | Switch, Seat Heater |
| 84755 | Relay, Seat Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84870A | Switch Assy, Outer Mirror |
| 84875 | Knob, Outer Mirror Switch |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84920 | Switch Assy, Power Seat |
| 84921 | Knob, Power Seat Switch |
| 84927 | Switch, Seat Memory |
| 84975 | Switch, Trip |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85490A | Solenoid Assy, Fuel Lid Opener |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916F | Relay, Cornering Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85926 | Relay, Headlamp Dimmer |
| 85933 | Computer, Shift Lock Control |
| 85940B | Relay Assy, Rear Wiper |
| 85980 | Relay Assy, Door Control |
| 85991 | Relay, Seat Belt Warning |
| 86530 | Relay Assy, Horn |
| 87989 | Relay, Mirror Control |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89140 | Computer,Assy Mirror Viblation Control |
| 89230 | Computer Assy, Tilt Steering |
| 89233 | Sensor, Tilt Position |
| 89234 | Sensor, Telescopic Position |
| 89235 | Switch, Tilt Steering |
| 89257 | Computer, Cooling Fan |
| 89279A | Cover, Computer |
| 89311 | Relay, Turn Signal |
| 89373 | Sensor, Lamp Failure Indicator |
| 89422A | Sensor, Water Temperature |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89430 | Computer Assy, Outer Mirror Control |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89641 | Sensor, Magnetic Field |
| 89650 | Computer Assy, Power Steering |
| 89710 | Computer Assy, Position Control |
| 89711 | Sensor, Position Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
