Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

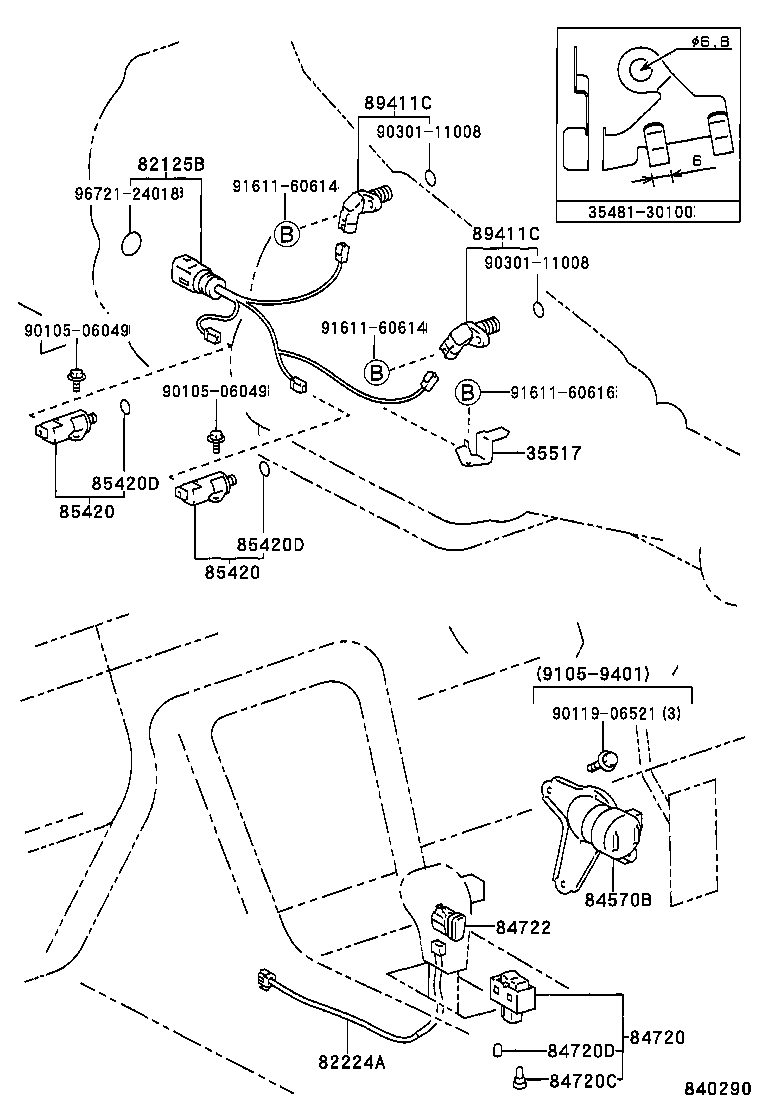

Overdrive & Electronic Controlled Transmission
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 82224A | Wire, Overdrive |
| 84570B | Switch Assy, Kick Down |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84720D | Cap, Pattern Select Switch |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89413C | Sensor,Speed |
| 89414 | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
