Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

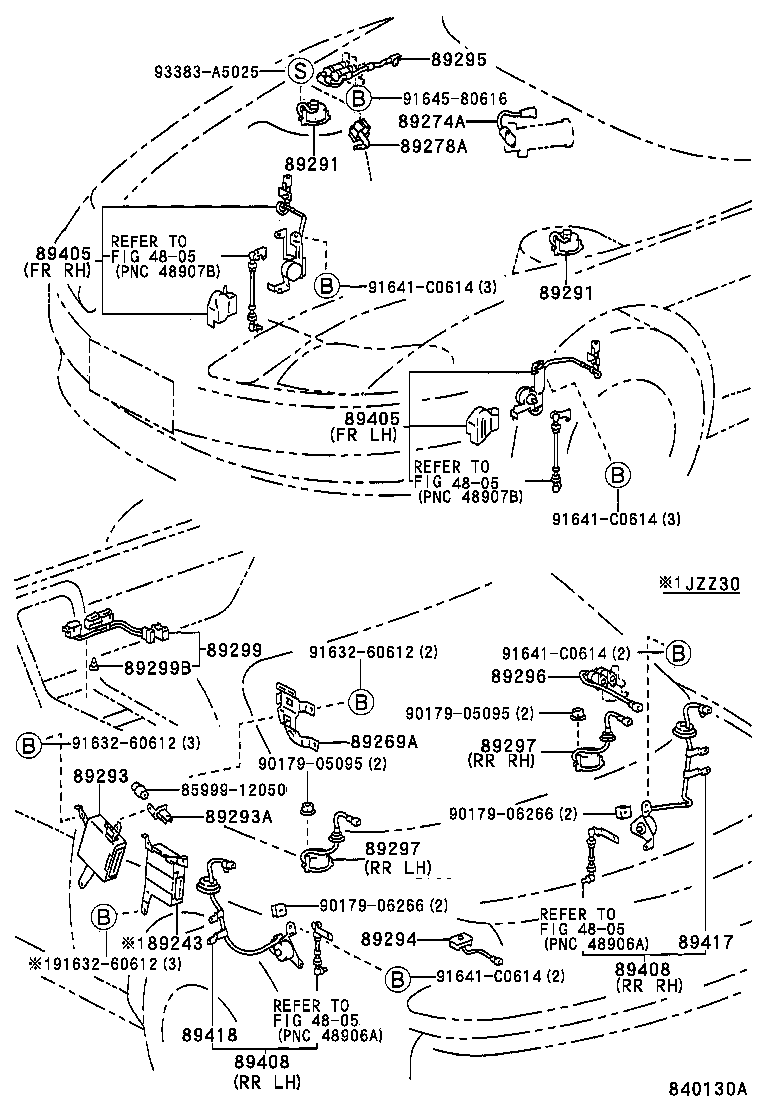

Electronic Modulated Suspension
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 89191A | Sensor, Acceleration |
| 89243 | Computer, Absorber Control |
| 89269A | Bracket, Suspension Control |
| 89274A | Solenoid, Air Valve |
| 89278A | Relay, Height Control |
| 89291 | Actuator, Suspension Control, Front |
| 89293 | Computer, Suspension Control |
| 89293A | Relay, Suspension Control |
| 89294 | Switch, Suspension Control Inhibition |
| 89295 | Solenoid, Suspension Control, Front |
| 89296 | Solenoid, Suspension Control, Rear |
| 89297 | Actuator, Suspension Control, Rear |
| 89299 | Switch, Suspension Control |
| 89299B | Bulb(FOR SUSPENSION CONTROL SWITCH) |
| 89299E | Cap, Suspension Control Switch Bulb |
| 89405 | Sensor Sub-assy, Height Control, Front |
| 89408 | Sensor Sub-assy, Height Control, Rear |
| 89417 | Sensor, Height Control, Rear RH |
| 89418 | Sensor, Height Control, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
