Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

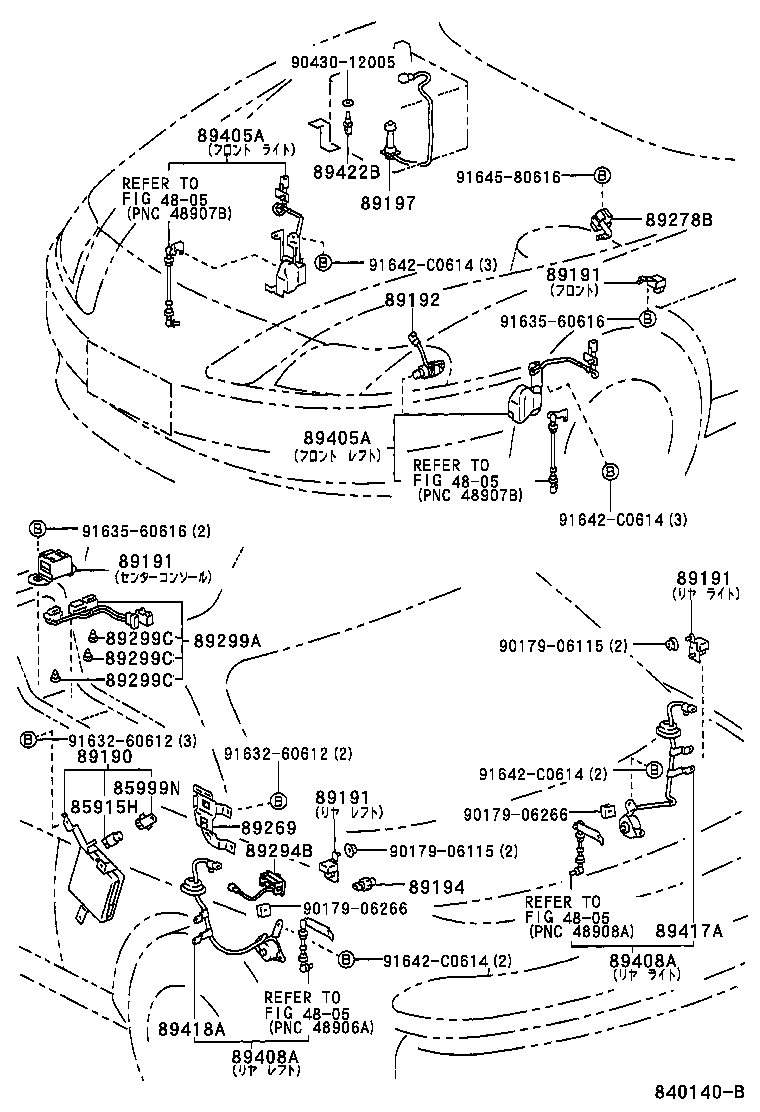

Active Control Suspension (ELECTRICAL PARTS)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85915H | Relay, Hydropneumatic Suspension |
| 85999N | Bracket, Relay |
| 89190 | Computer Assy, Hydropneumatic Suspension |
| 89191 | Sensor, Acceleration |
| 89192 | Sensor, Pressure Accumulator |
| 89194 | Sensor, Pressure Absorber, NO.1 |
| 89197 | Sensor, Oil Level |
| 89269 | Bracket, Suspension Control |
| 89278B | Relay, Height Control |
| 89294B | Switch, Suspension Control Inhibition |
| 89299A | Switch, Suspension Control |
| 89299C | Bulb (FOR SUSPENSION CONTROL SWITCH) |
| 89405A | Sensor Sub-assy, Height Control, Front |
| 89408A | Sensor Sub-assy, Height Control, Rear |
| 89417A | Sensor, Height Control, Rear RH |
| 89418A | Sensor, Height Control, Rear LH |
| 89422B | Sensor, Water Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
