Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

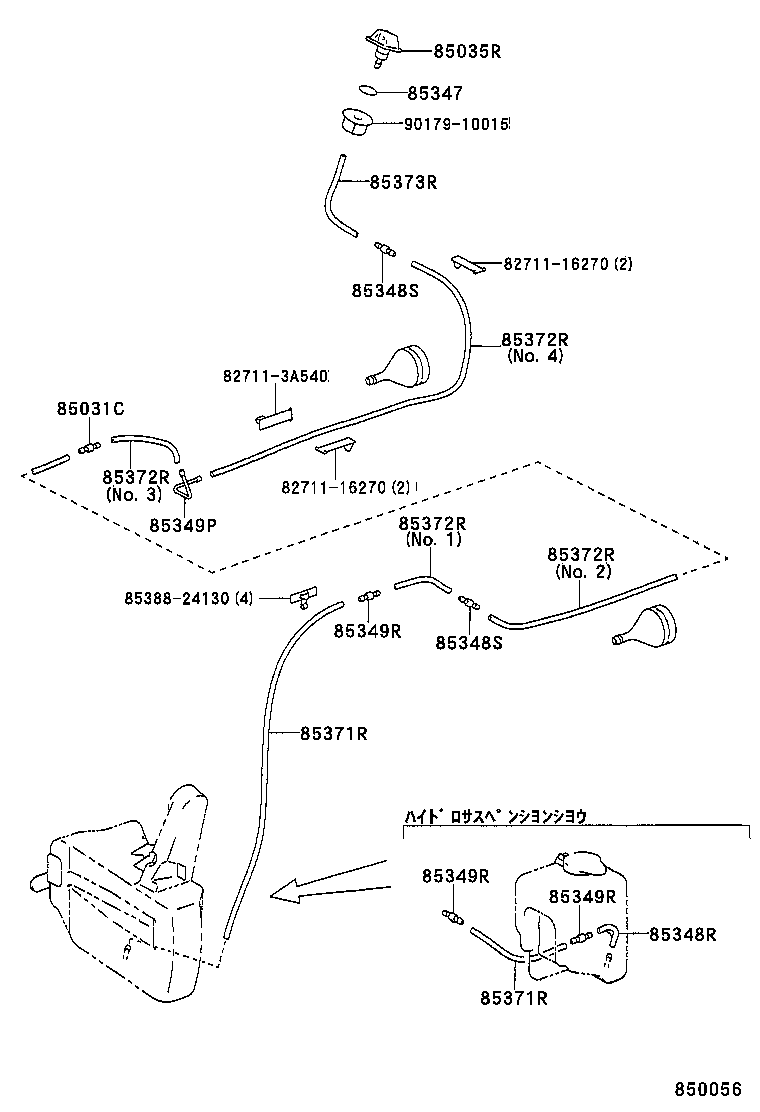

Rear Washer
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031C | Valve Sub-assy, Washer |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85347 | Packing, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85349P | Joint, Rear Washer Elbow, NO.3 |
| 85349R | Joint, Rear Washer Hose, NO.5 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372R | Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
