Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07
Telephone & Mayday
29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011L | Filter, Noise |

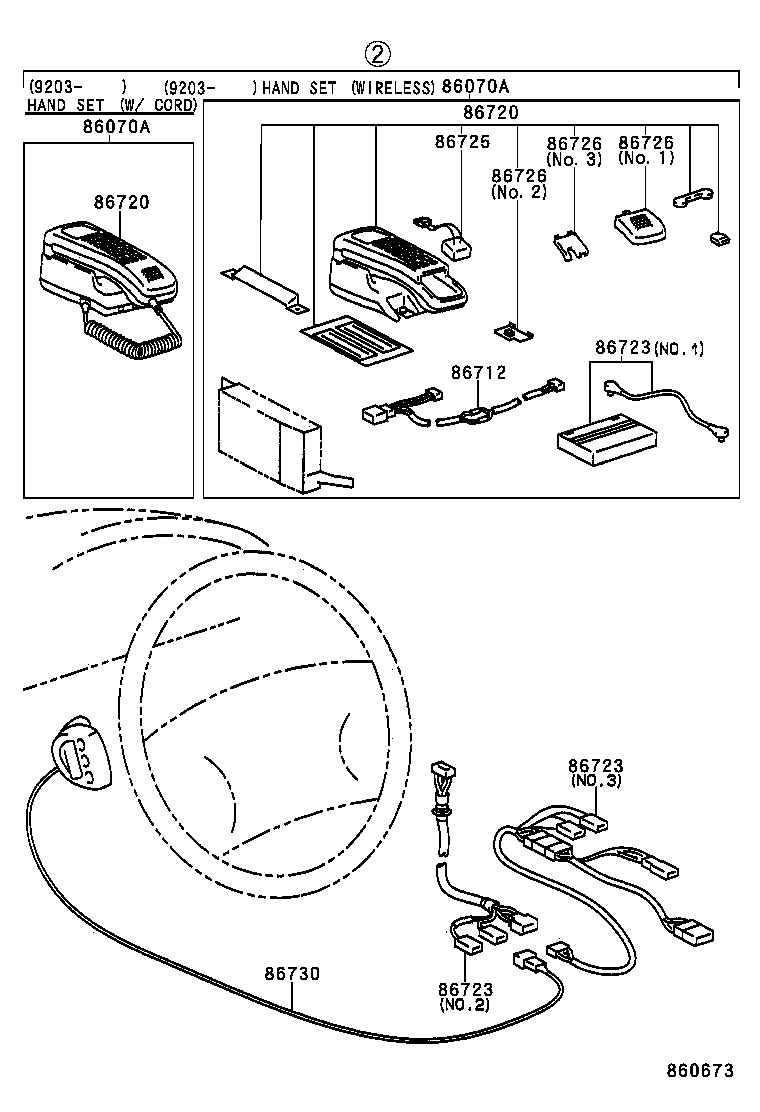

| 86070A | Mobilephone & Accessory Assy (HANDSET) |
| 86701 | Wire Set, Transceiver Cover |

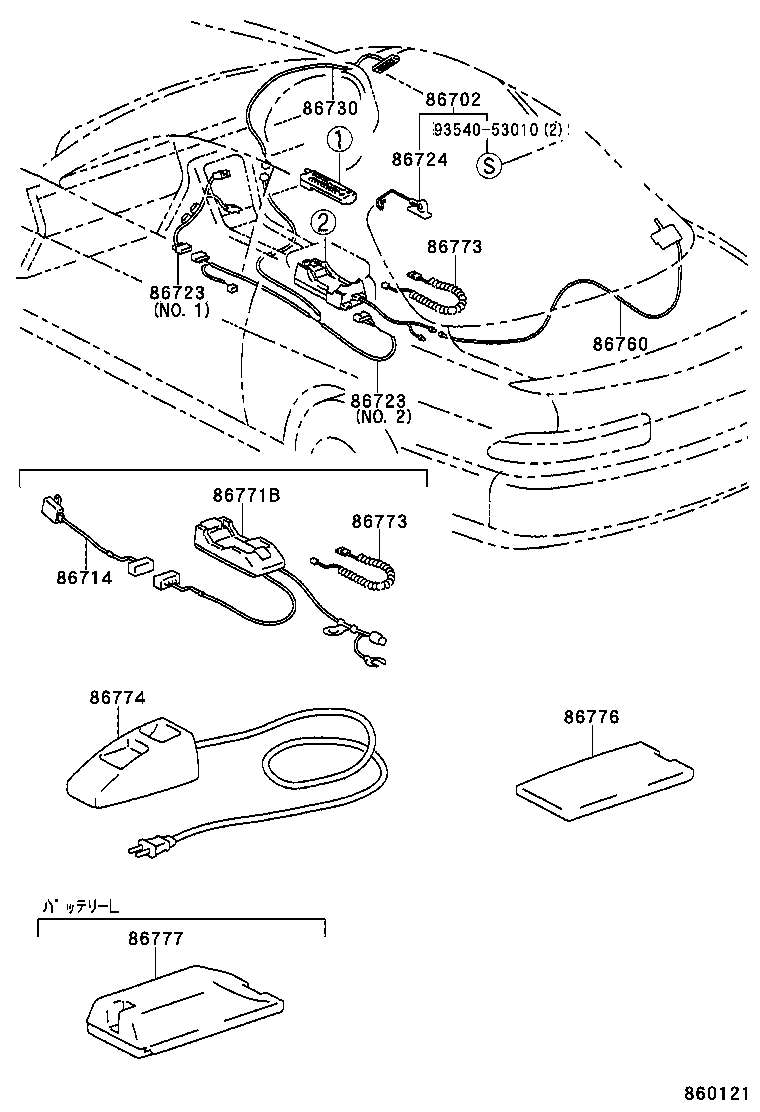

| 86702 | Bracket Set, Telephone |
| 86710 | Computer Assy, Telephone |
| 86712 | Wire, Telephone |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86713B | Wire, Telephone Computer, (TO FRAM W/H) |
| 86714 | Controller, Telephone |
| 86719 | Bracket, Telephone |
| 86720 | Mobilephone Assy |
| 86722 | Cradle, Mobilephone |
| 86723 | Wire, Mobilephone |
| 86724 | Guide, Curl Cord |
| 86725 | Battery, Mobilephone |
| 86726 | Cover, Mobilephone |
| 86726A | Cover, Mobilephone, NO.2 |
| 86726D | Cover, Mobilephone |
| 86726E | Cover, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86760 | Antenna Assy, Telephone |
| 86771B | Charger, Portablephone Battery |
| 86773 | Wire, Portablephone |
| 86774 | Charger, Portablephone AC |

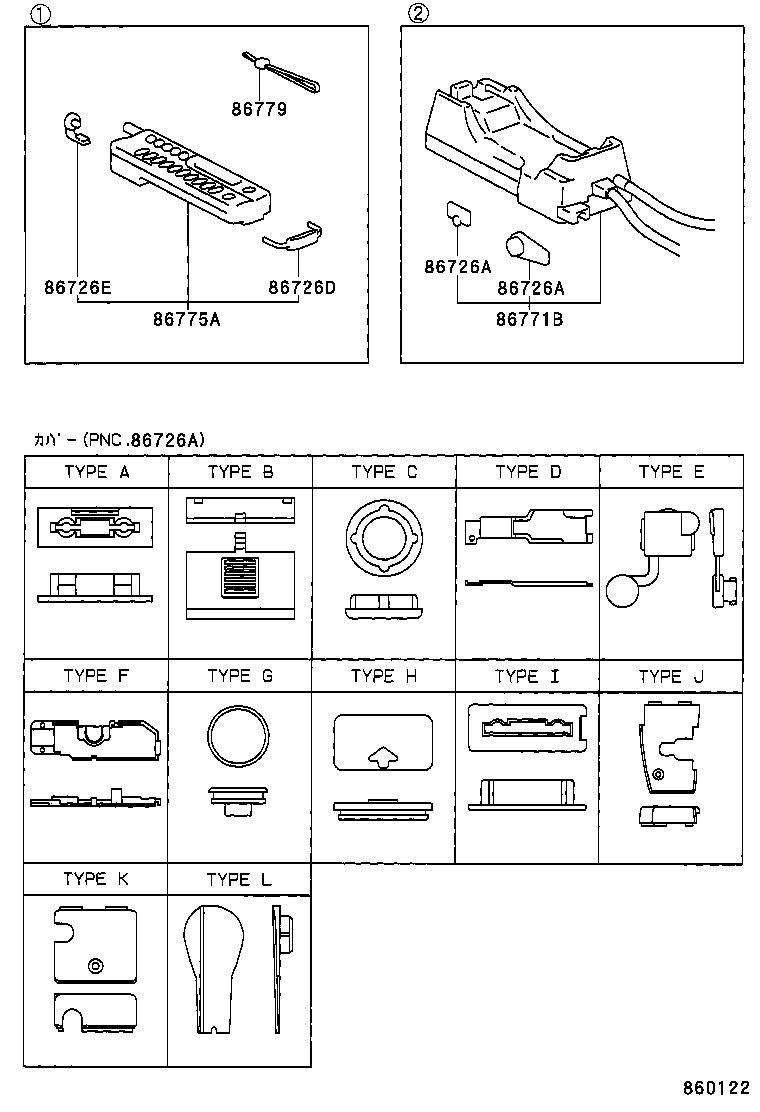

| 86775A | Handset, Portablephone |
| 86776 | Battery, Portablephone-s |
| 86777 | Battery, Mayday |
| 86779 | Strap, Portablephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
