Toyota Soarer
1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan
Discontinued model
Data version 2001-07

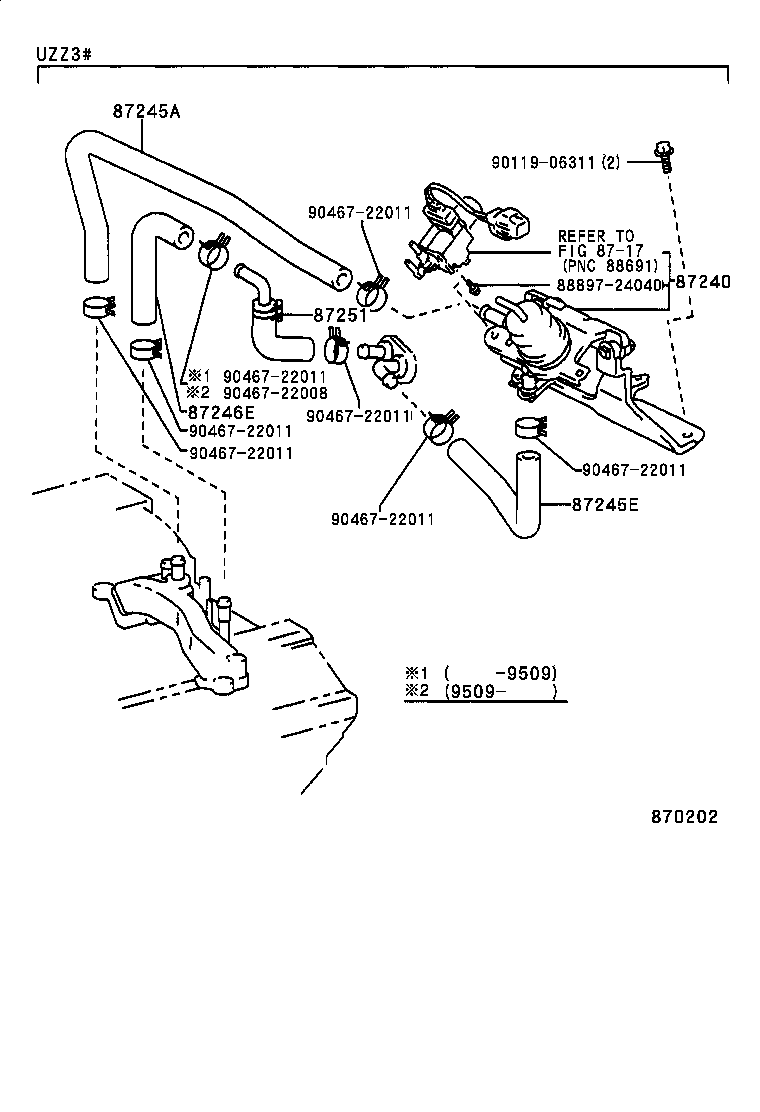

Heating & Air Conditioning - Water Piping
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245E | Hose, Heater Water, Inlet E |
| 87246E | Hose, Heater Water, Outlet E |
| 87251 | Joint OR Union, Water Hose Through |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
