Heating & Air Conditioning - Cooler Piping

24 part groups · 6 illustrations

Illustrations

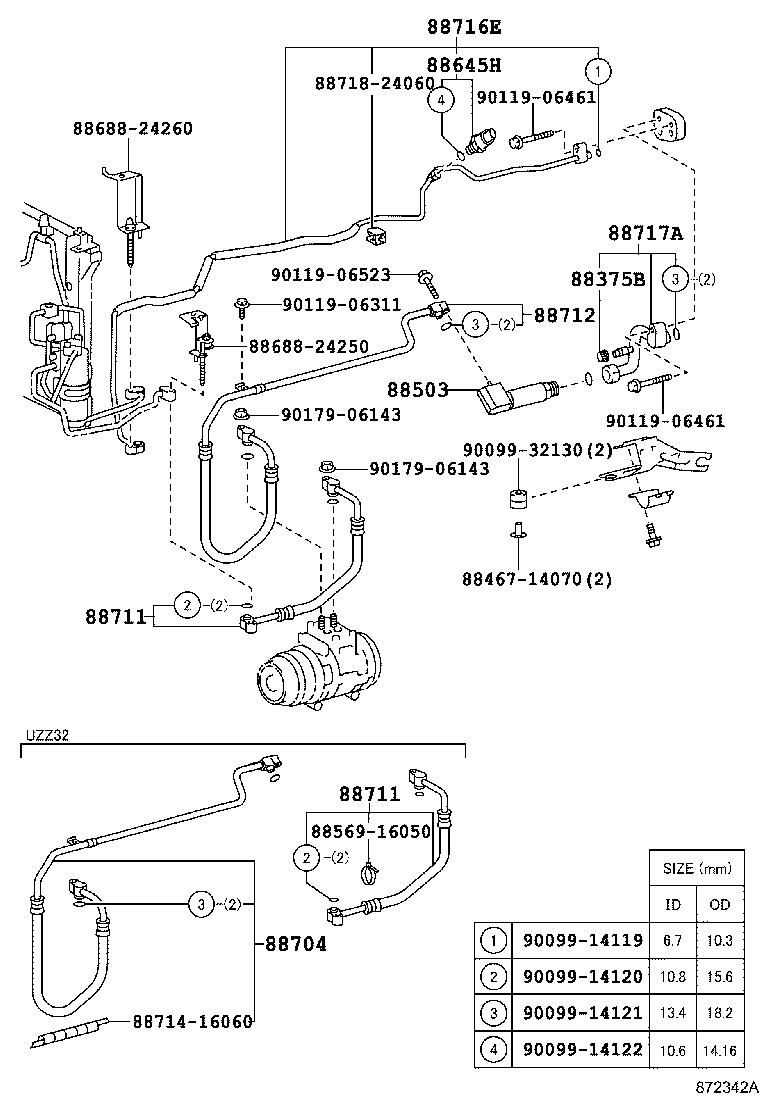

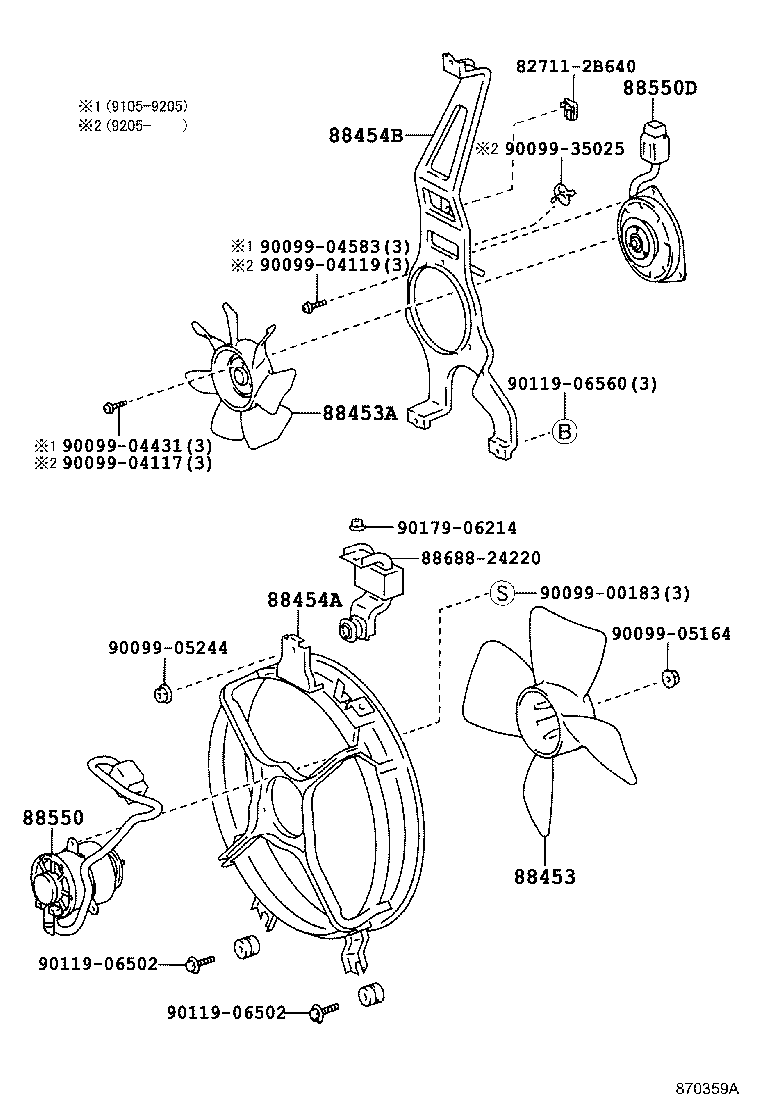

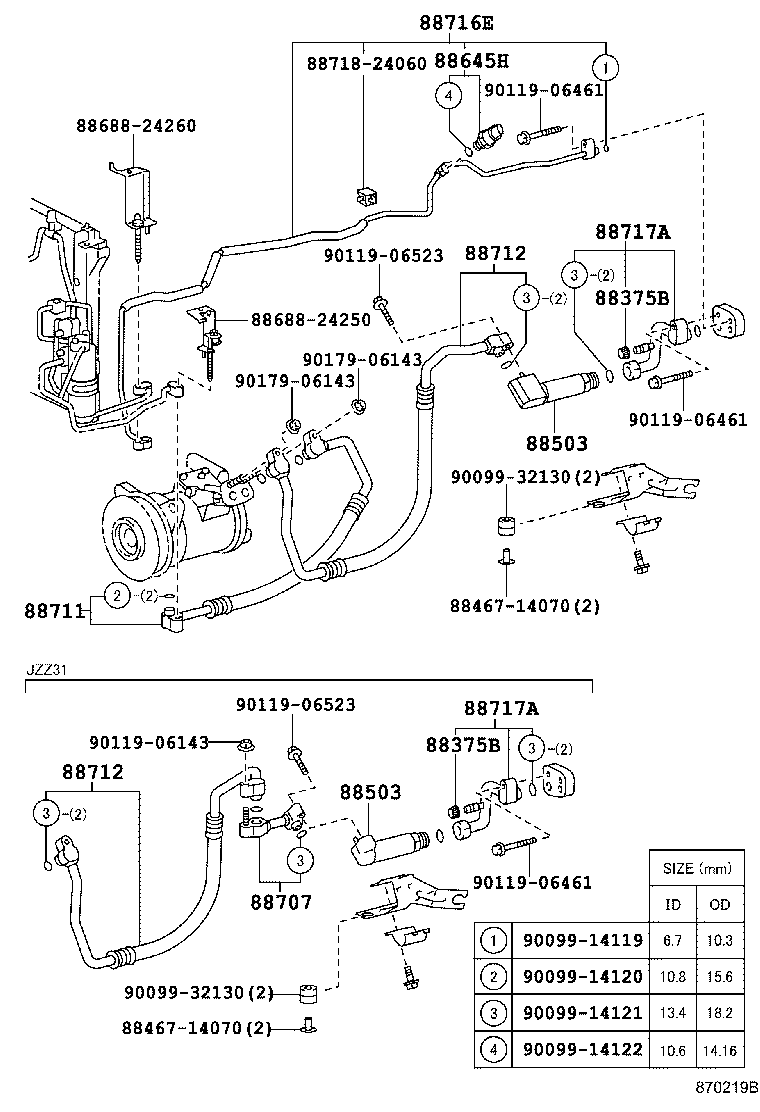

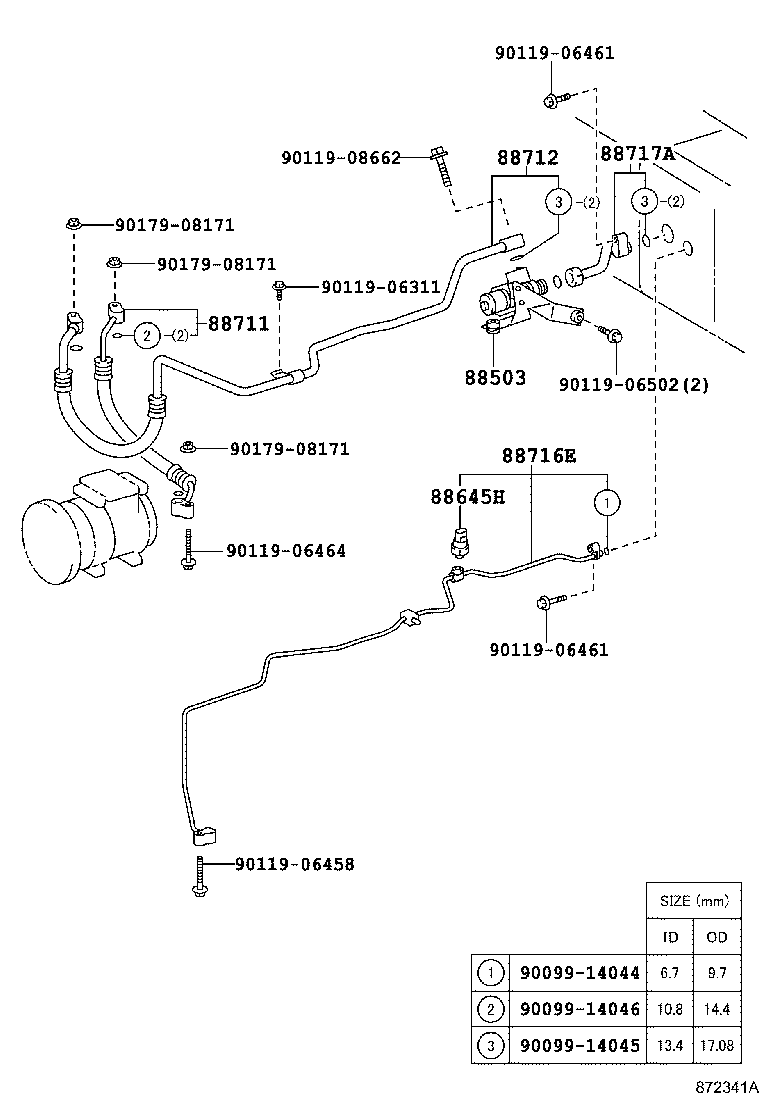

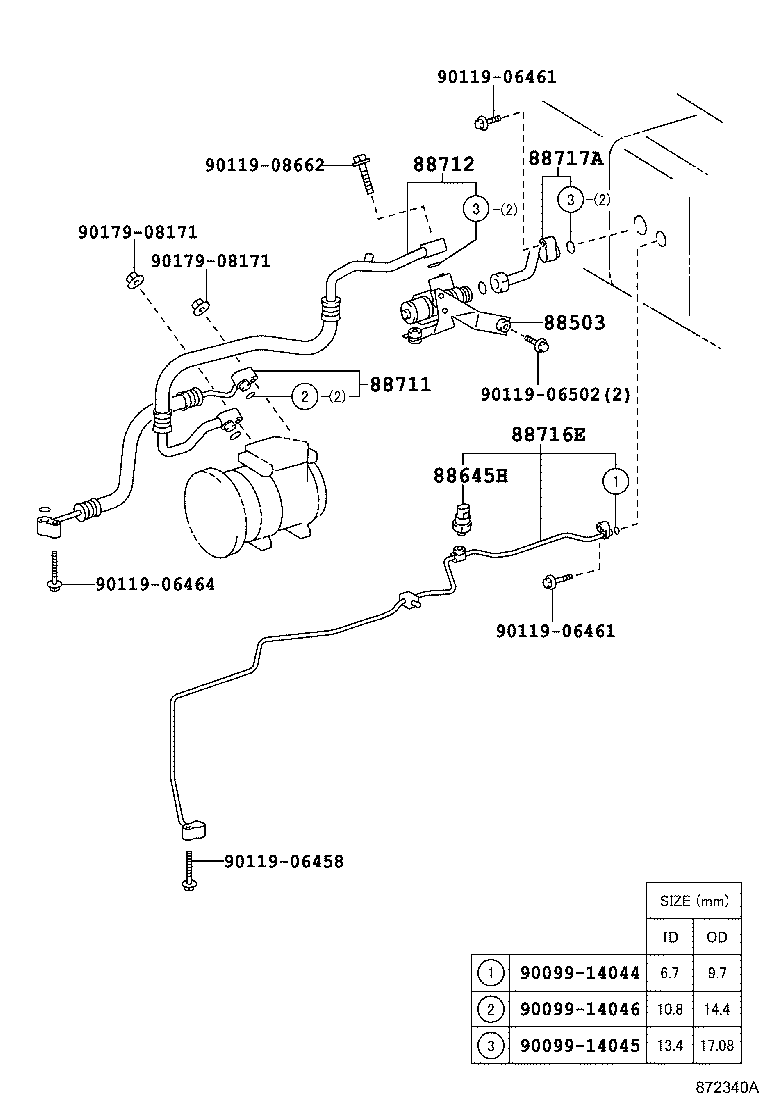

Figure 872339A 872339A 1991-05 → — Figure 870359A 870359A 1991-05 → — Figure 872340A 872340A 1991-05 → 1994-01 Figure 872341A 872341A 1991-05 → 1994-01 Figure 870219B 870219B 1994-01 → — Figure 872342A 872342A 1994-01 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88453A Fan, Cooling
88454A Shroud, Fan
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88550D Motor Assy, Blower
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
