Toyota Soarer/Lexus SC430

2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan

Discontinued model Data version 2010-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

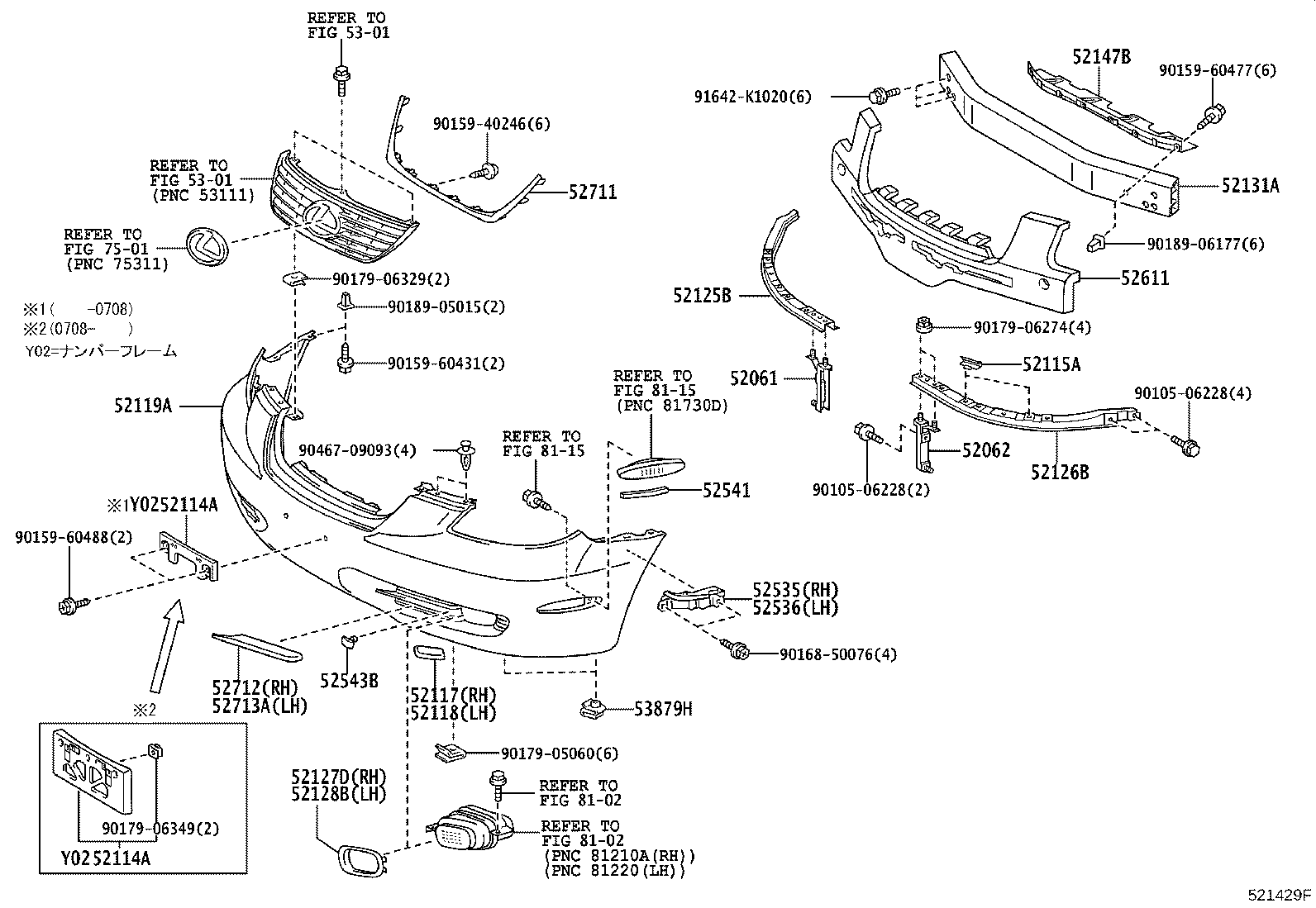

Figure 520709D 520709D 2001-04 → 2005-08 Figure 521429F 521429F 2005-08 → —

Part groups

PNCDescription
52061 Support Sub-assy, Front Bumper Side, RH
52062 Support Sub-assy, Front Bumper Side, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52117 Moulding, Bumper Side, RH
52118 Moulding, Bumper Side, LH
52119A Cover, Front Bumper
52125B Extension, Front Bumper Reinforcement, RH
52126B Extension, Front Bumper Reinforcement, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52147B Bracket, Front Bumper Mounting
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52543B Seal, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
