Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12

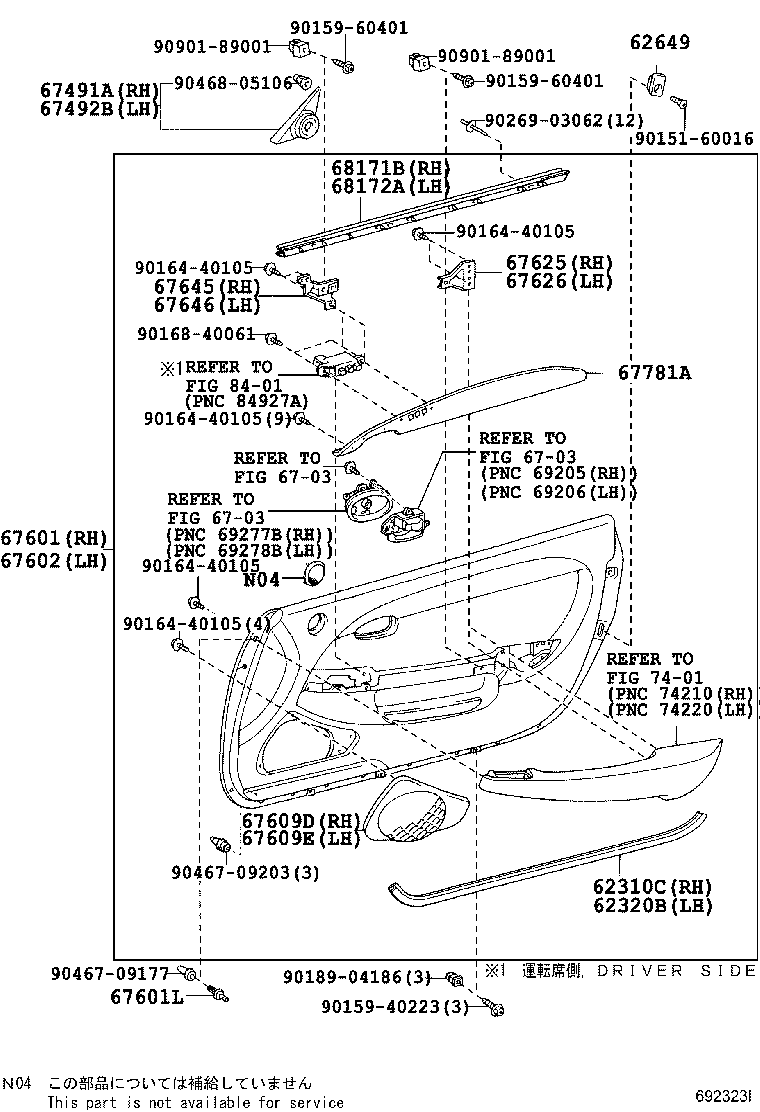

Front Door Panel & Glass
48 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62310C | Weatherstrip Assy, Front Door Opening Trim, RH |
| 62320B | Weatherstrip Assy, Front Door Opening Trim, LH |
| 62649 | Bracket, Side Trim |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67443E | Plate, Front Door Inside Panel, RH |
| 67444C | Plate, Front Door Inside Panel, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492B | Garnish, Front Door Window Upper Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601L | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67609D | Grille Sub-assy, Front Door Speaker, RH |
| 67609E | Grille Sub-assy, Front Door Speaker, LH |
| 67625 | Bracket, Front Door Trim, RH |
| 67626 | Bracket, Front Door Trim, LH |
| 67645 | Bracket, Front Door Armrest Set, RH |
| 67646 | Bracket, Front Door Armrest Set, LH |
| 67781A | Ornament, Front Door Trim |
| 67813D | Sheet, Quarter Panel Silencer, RH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67833D | Cover, Front Door Service Hole, NO.2 RH |
| 67834 | Cover, Front Door Service Hole, NO.2 LH |
| 67837A | Seal, Front Door Vent, RH |
| 67838A | Seal, Front Door Vent, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863B | Weatherstrip, Front Door, NO.2 RH |
| 67864B | Weatherstrip, Front Door, NO.2 LH |
| 67867H | Retainer, Door Weatherstrip, RH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
