Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12
Fuel Tank & Tube

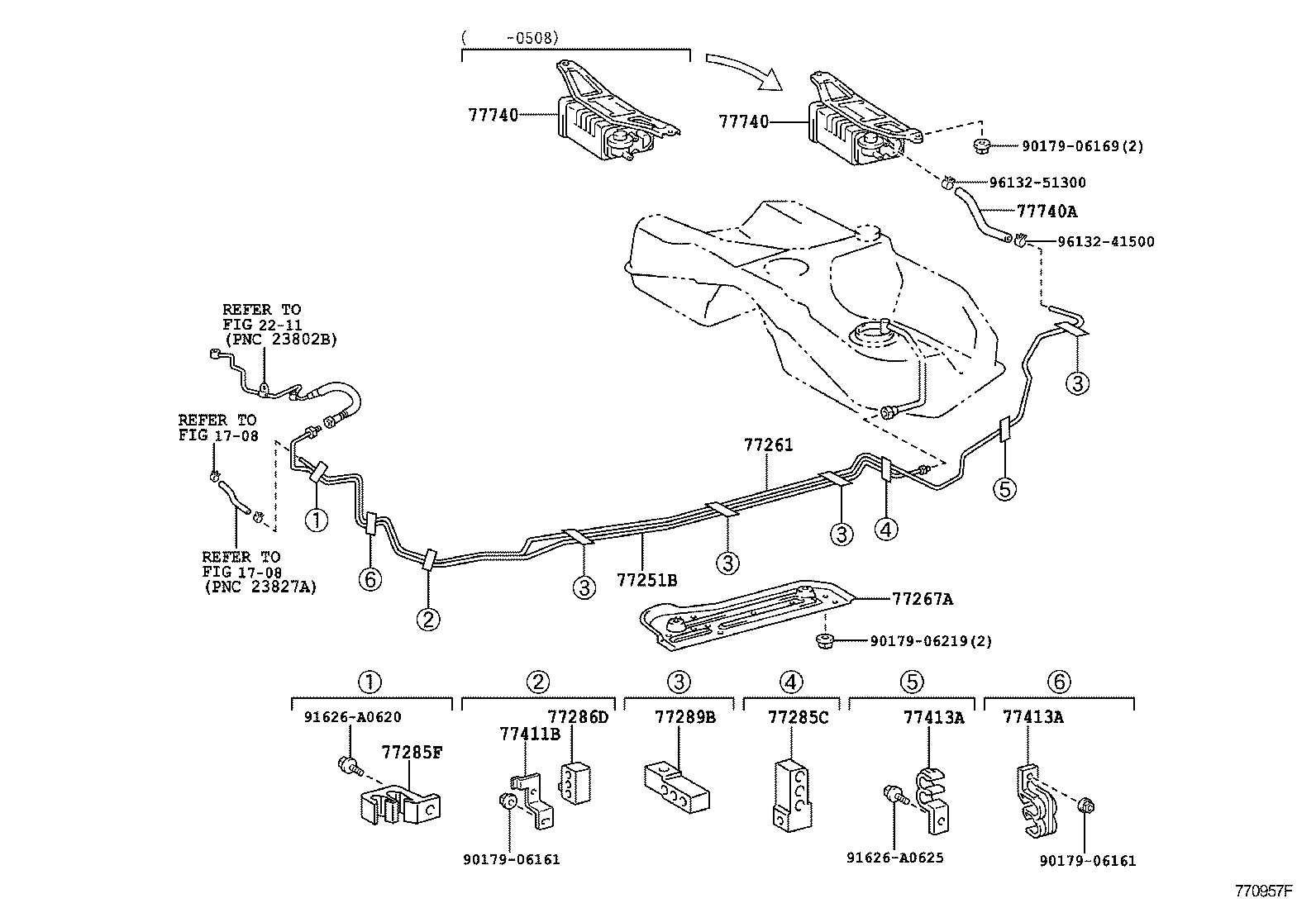

48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177 | Gasket, Check Valve |
| 77179B | Gasket, Fuel Tank Evaporation Vent Tube |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77269A | Hose, Fuel Tank Breather |
| 77285C | Clamp, Fuel Tube, NO.1 (FOR FRONT FUEL MAIN) |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77359 | Cushion, Fuel Inlet Box Cover |
| 77361 | Bracket, Fuel Filler Opening Lid Hinge |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77399A | Cover, Fuel Filler Opening Lid |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77413A | Support, Fuel Tube Grommet, NO.3 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681A | Seat, Fuel Tank Band |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
