Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12
Wiring & Clamp
44 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |
| 82111 | Wire, Engine Room Main |

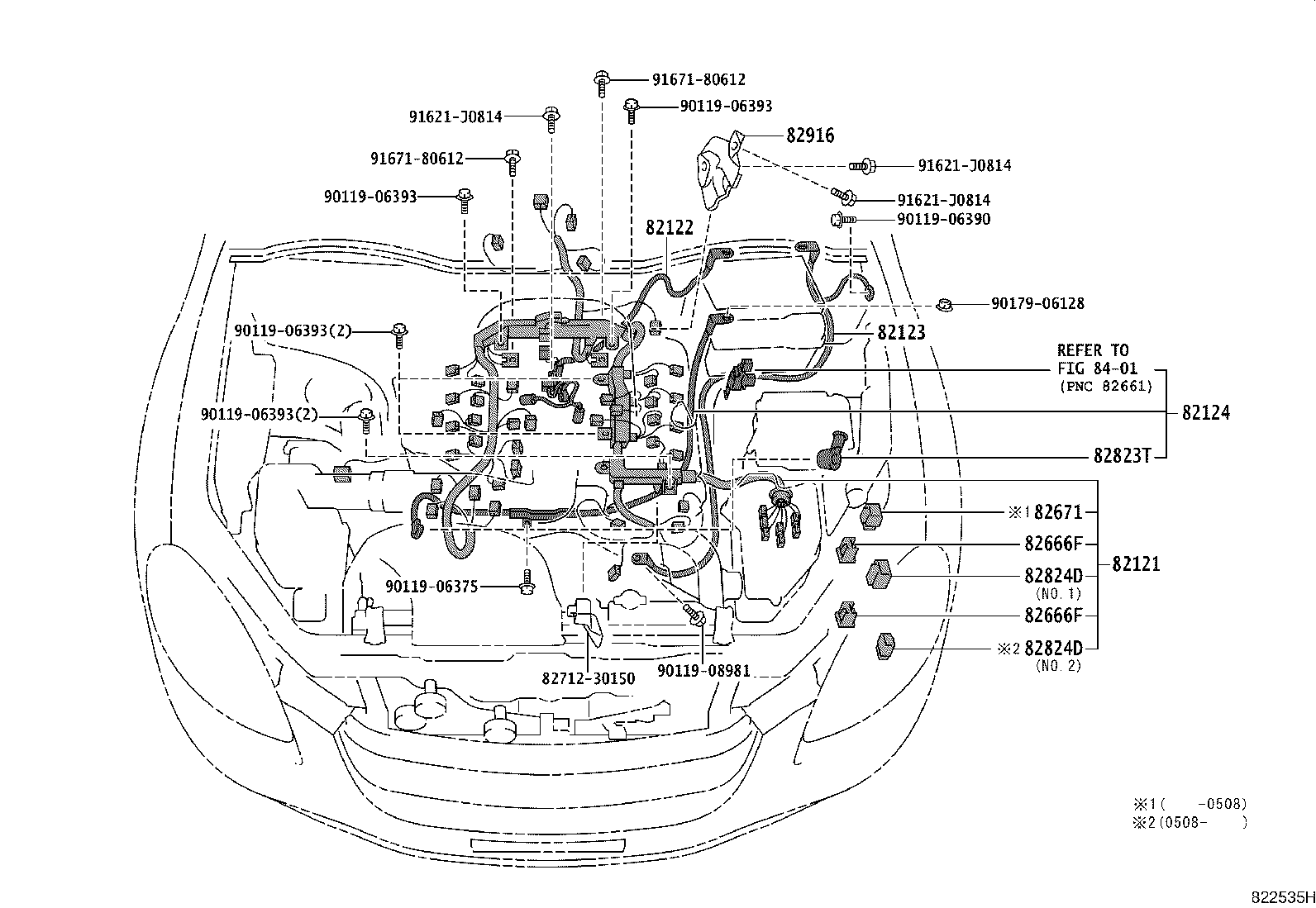

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |

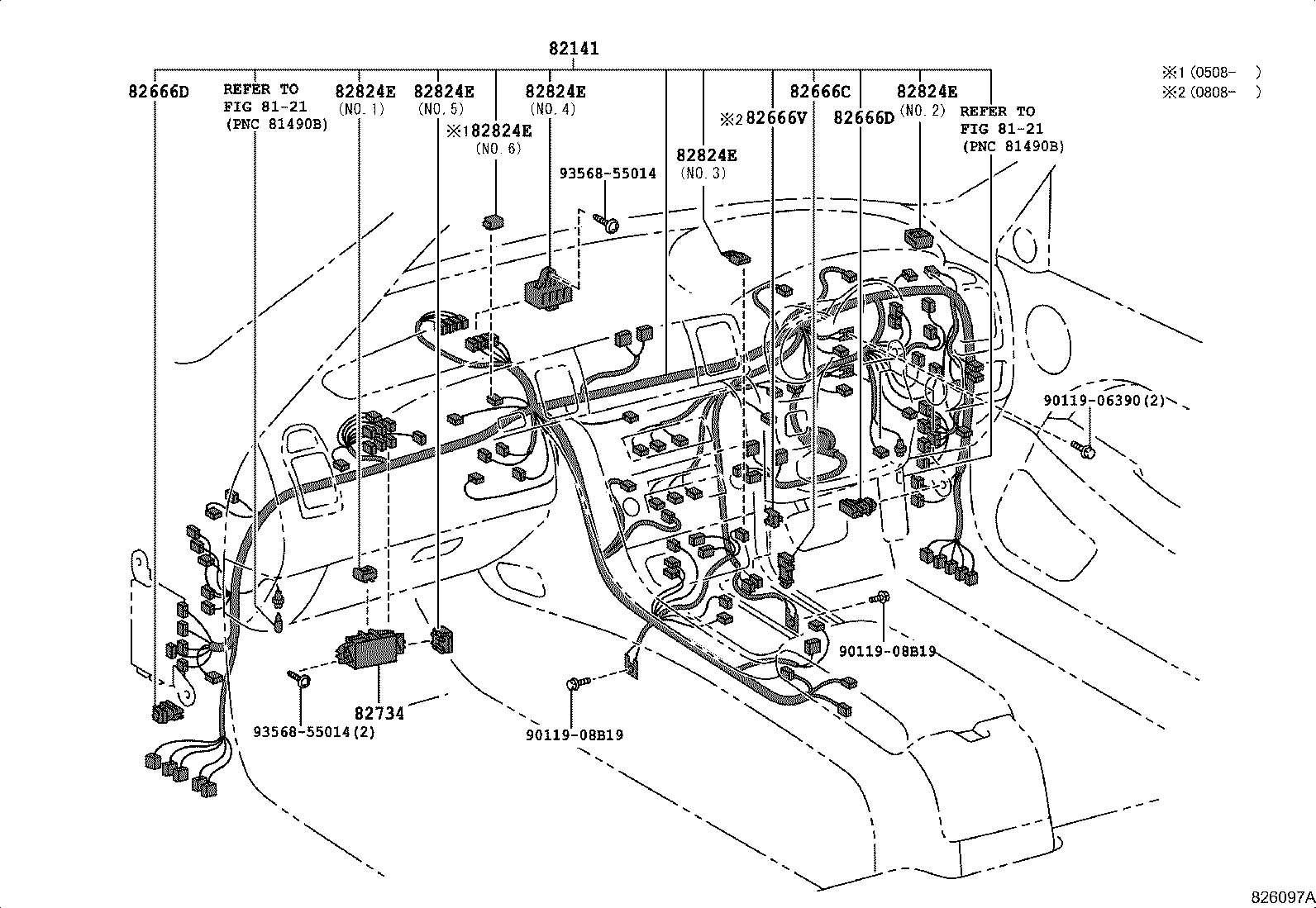

| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |

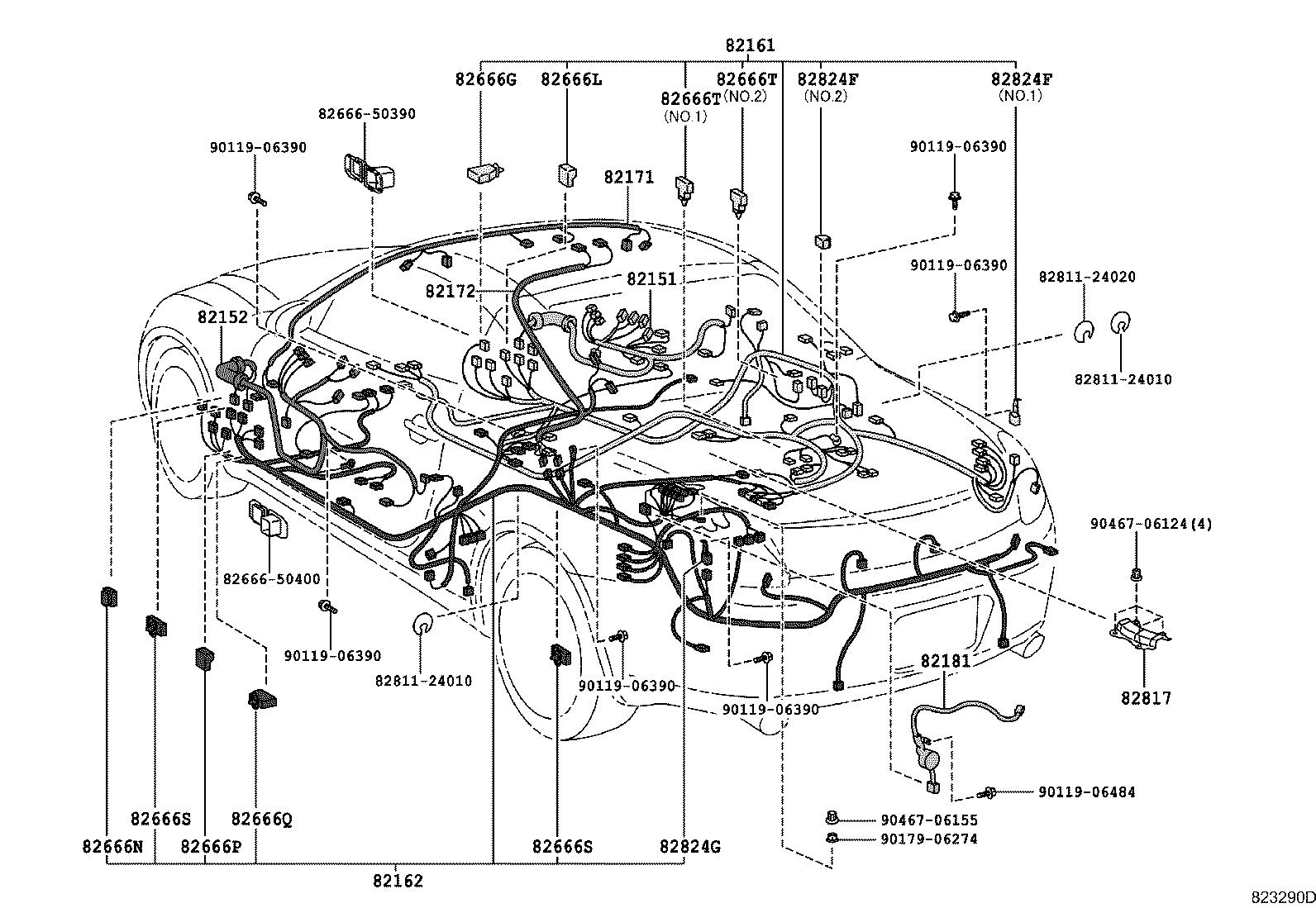

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82181 | Wire, Luggage Room, NO.1 |

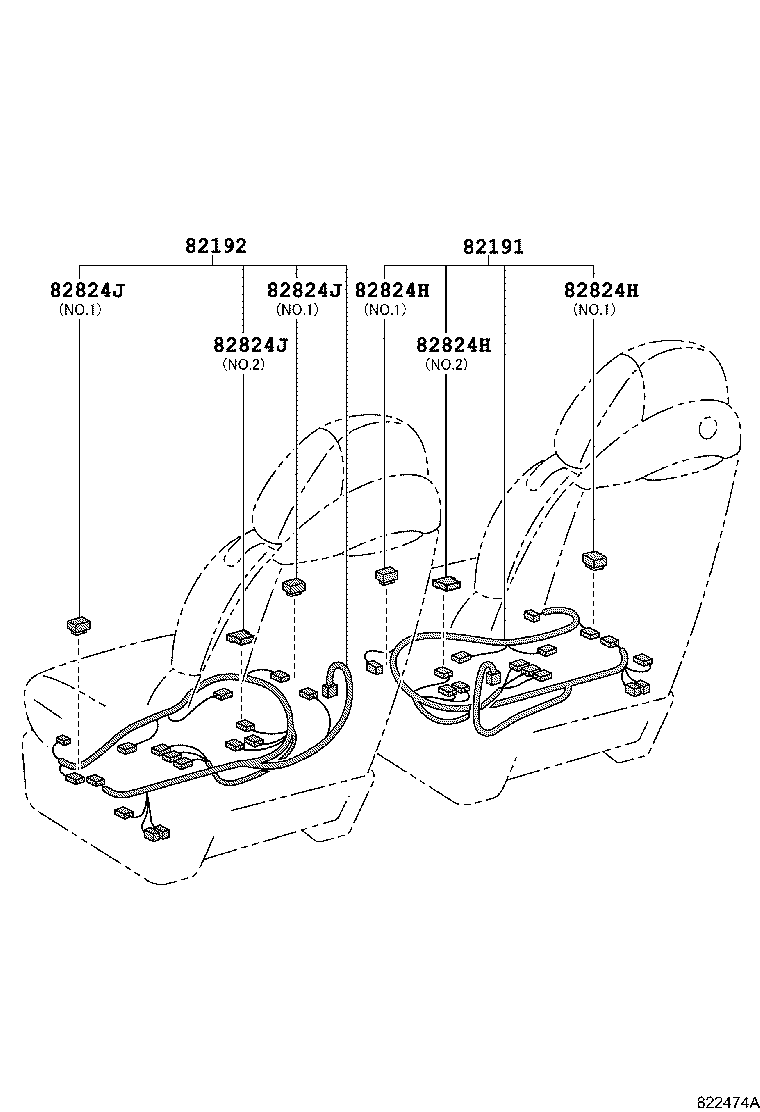

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82671 | Block, Junction |
| 82734 | Block, Center Junction |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 82824H | Connector, Wiring Harness |
| 82824J | Connector, Wiring Harness |
| 82916 | Insulator, Wiring Harness Heat, NO.2 |
| 86214A | Bracket, Radio Earth |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
