Toyota Soarer/Lexus SC430

2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan

Discontinued model Data version 2010-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

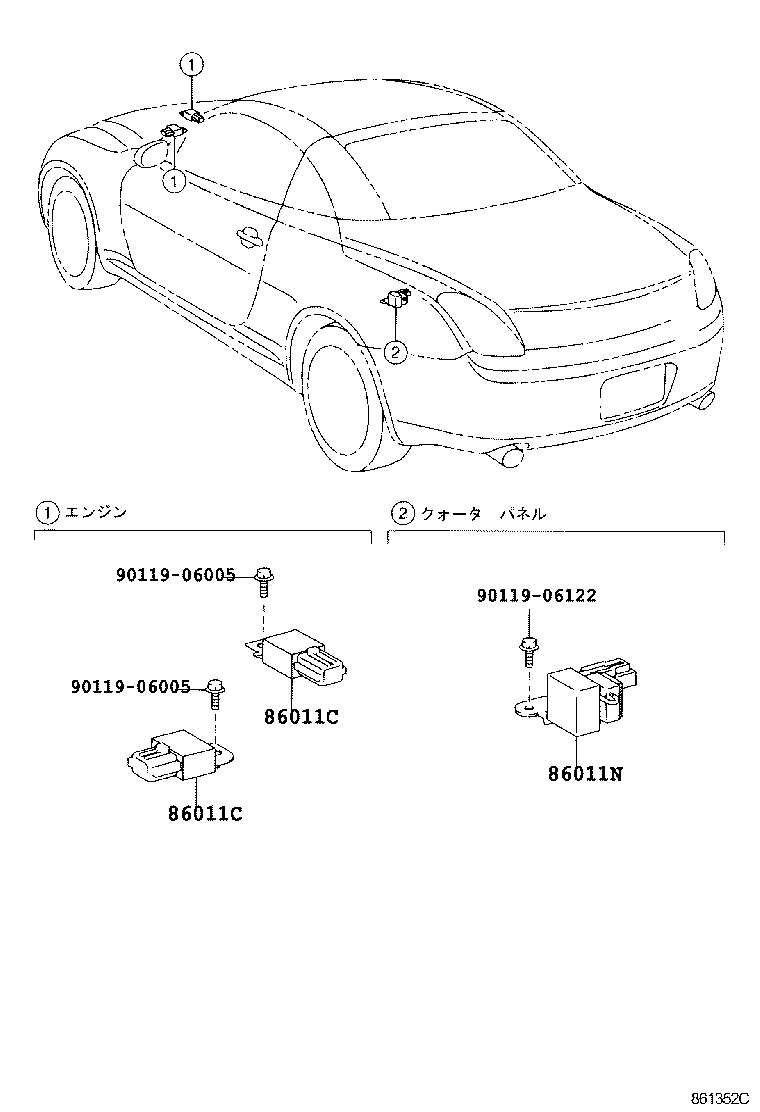

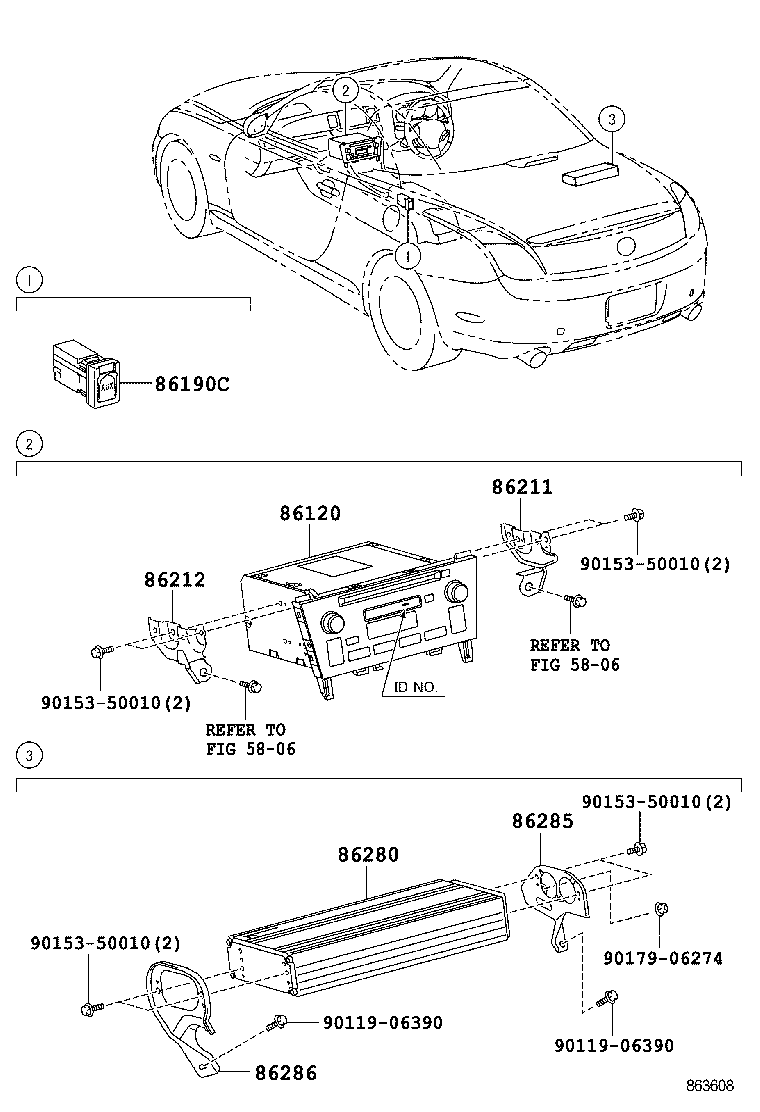

Figure 861351C 861351C 2001-04 → 2008-08 Figure 863608 863608 2008-08 → — Figure 861352C 861352C 2001-04 → —

Part groups

PNCDescription
86011C Filter, Noise
86011N Filter, Noise
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
