Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12

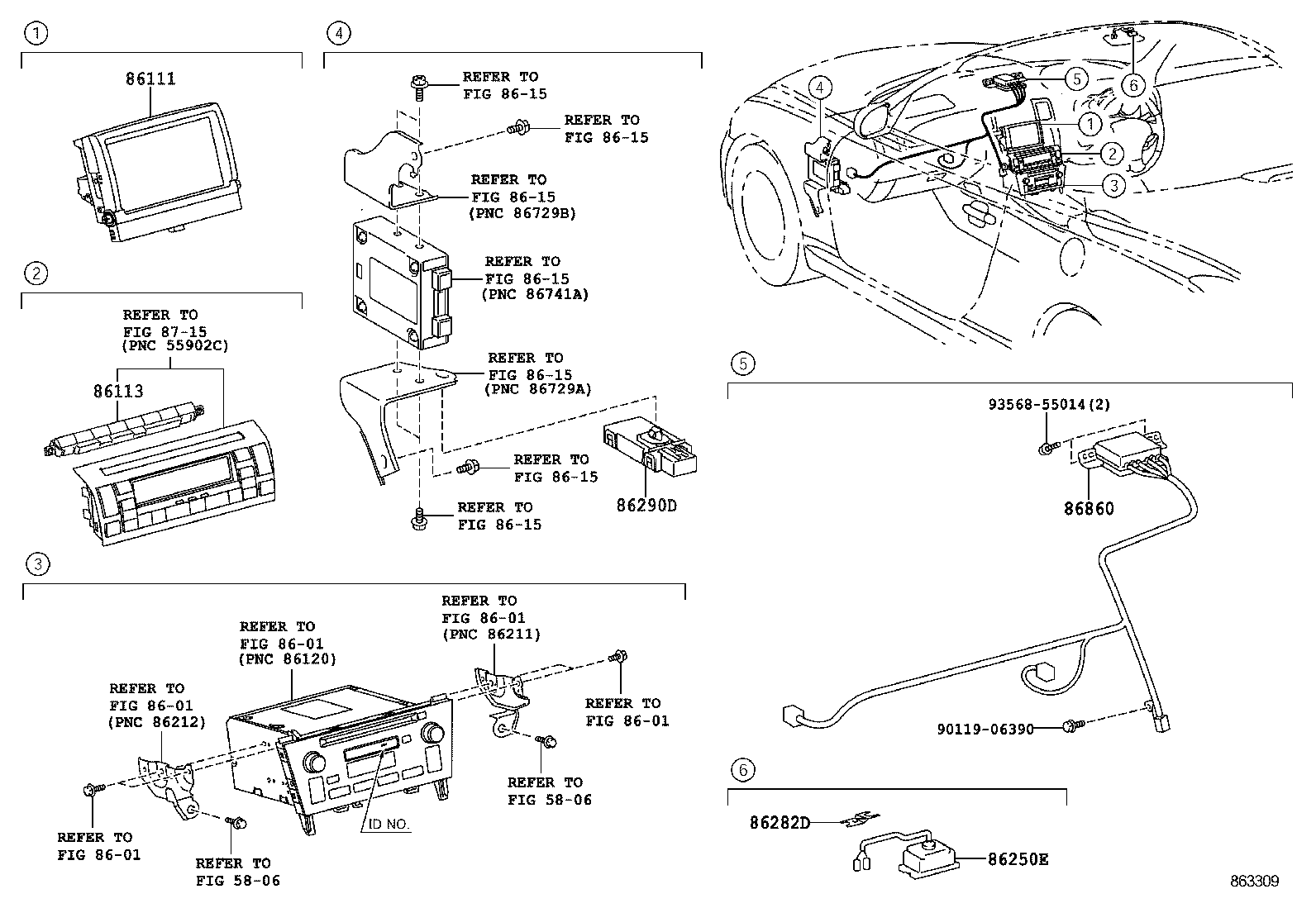

Navigation & Front Monitor Display
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010 | Tuner Assy, Television |
| 86011W | Amplifier, Navigation |
| 86111 | Multi-display |
| 86113 | Block, Multi-display Junction |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86282D | Bracket, Microphone |
| 86290D | Amplifier Assy, Microphone |
| 86291A | Bracket, Television |
| 86841 | Computer, Navigation |
| 86846 | Plate, Navigation Computer |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
