Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12
Antenna

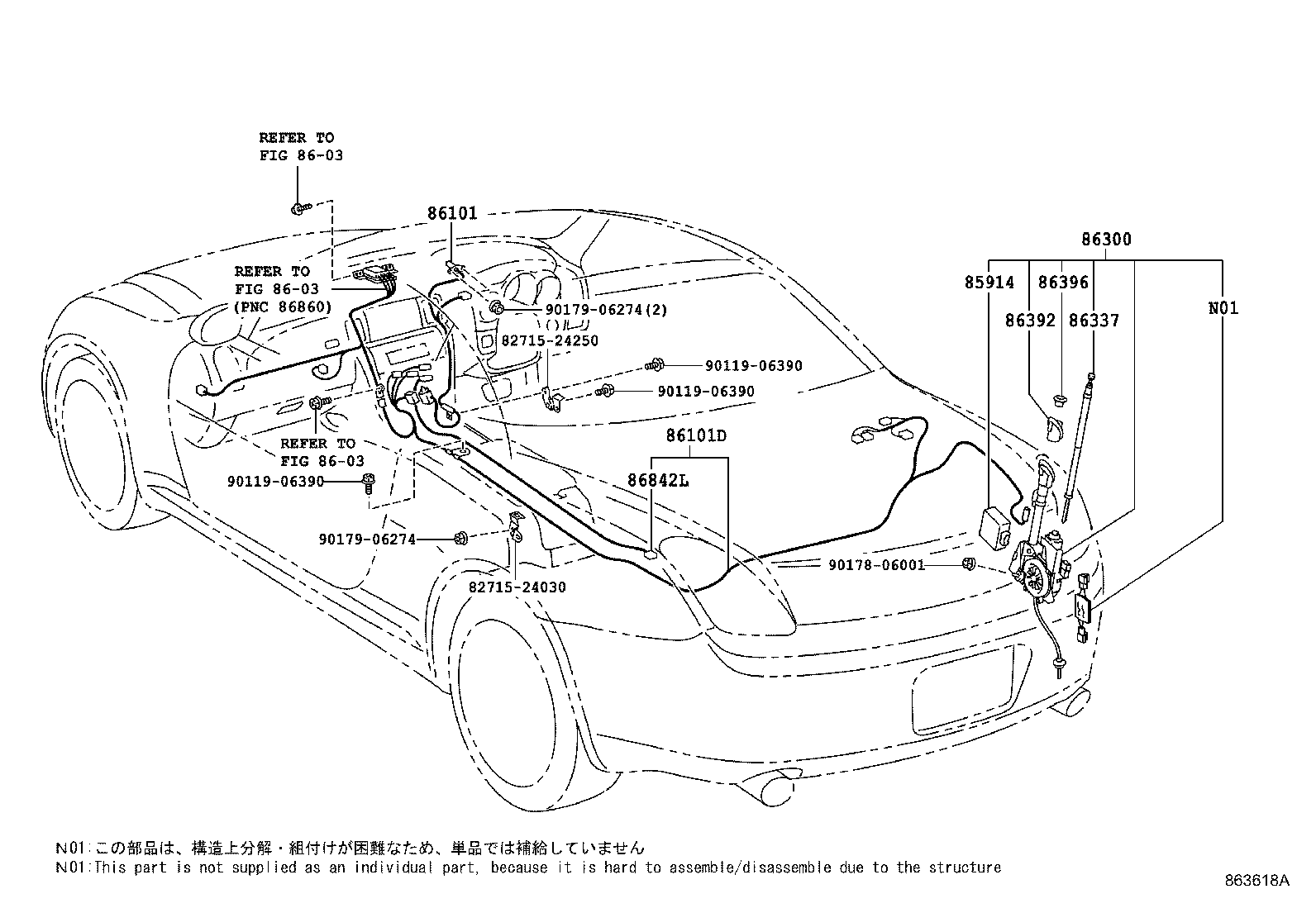

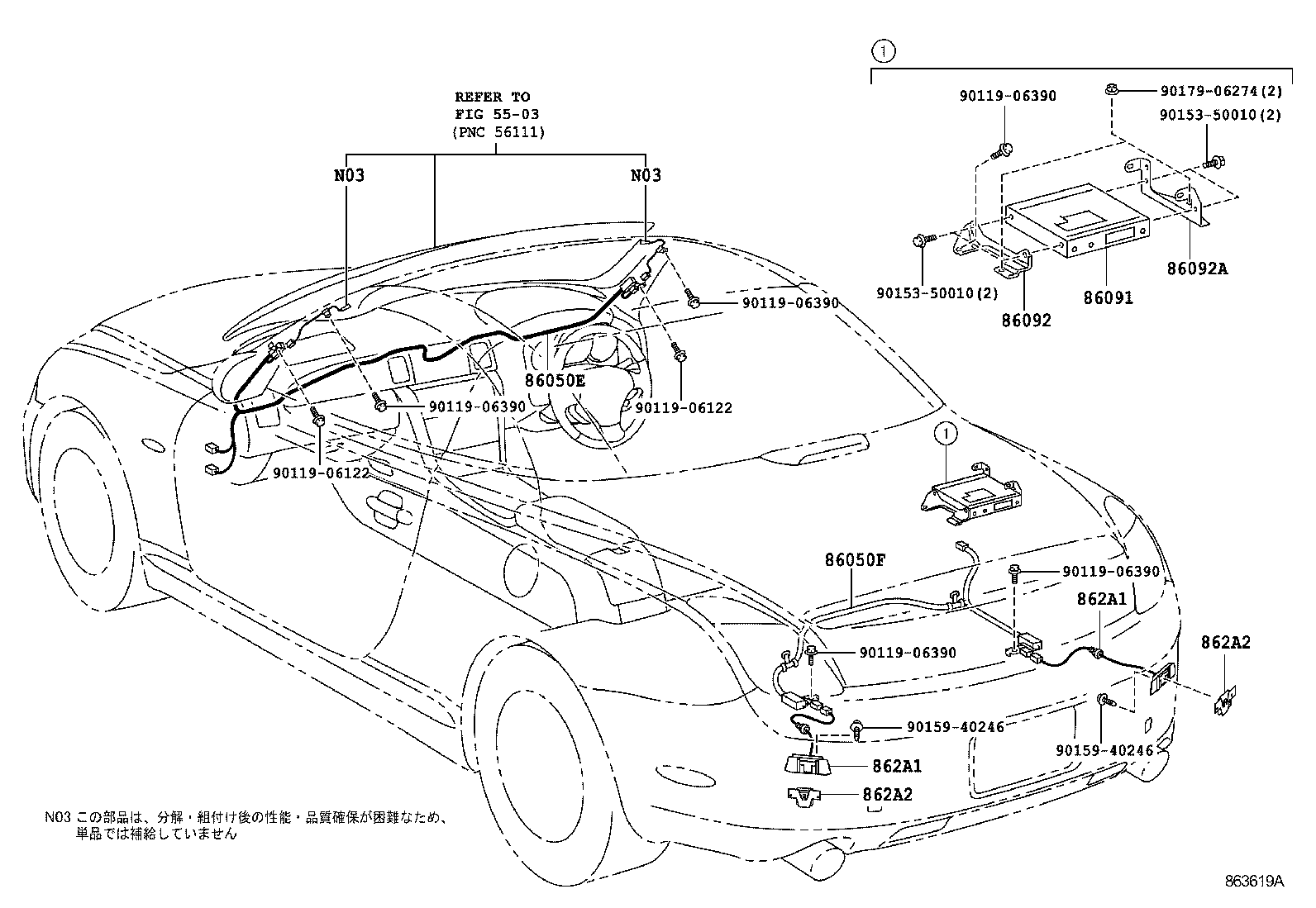

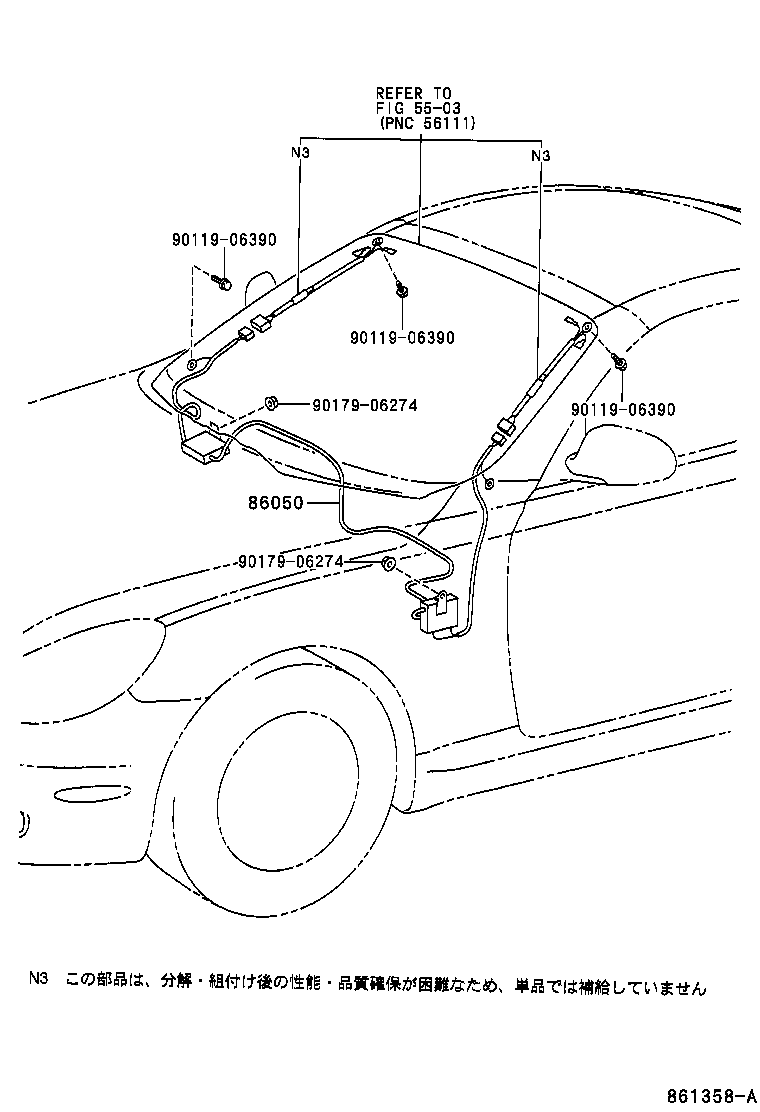

17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86050 | Antenna Assy, Television |
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86091 | Parts Set, Digital Television |
| 86092 | Bracket, Digital Television, Front |
| 86092A | Bracket, Digital Television, Rear |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 862A1 | Antenna, Digital Terevision, NO.1 |
| 862A2 | Bracket, Digital Television Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86337 | Rod & Pipe, Sealed W/Cable |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
| 86842L | Wire, Navigation, NO.1 |
| 86860C | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
