Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12
Telephone & Mayday
6 part groups · 2 illustrations
Part groups

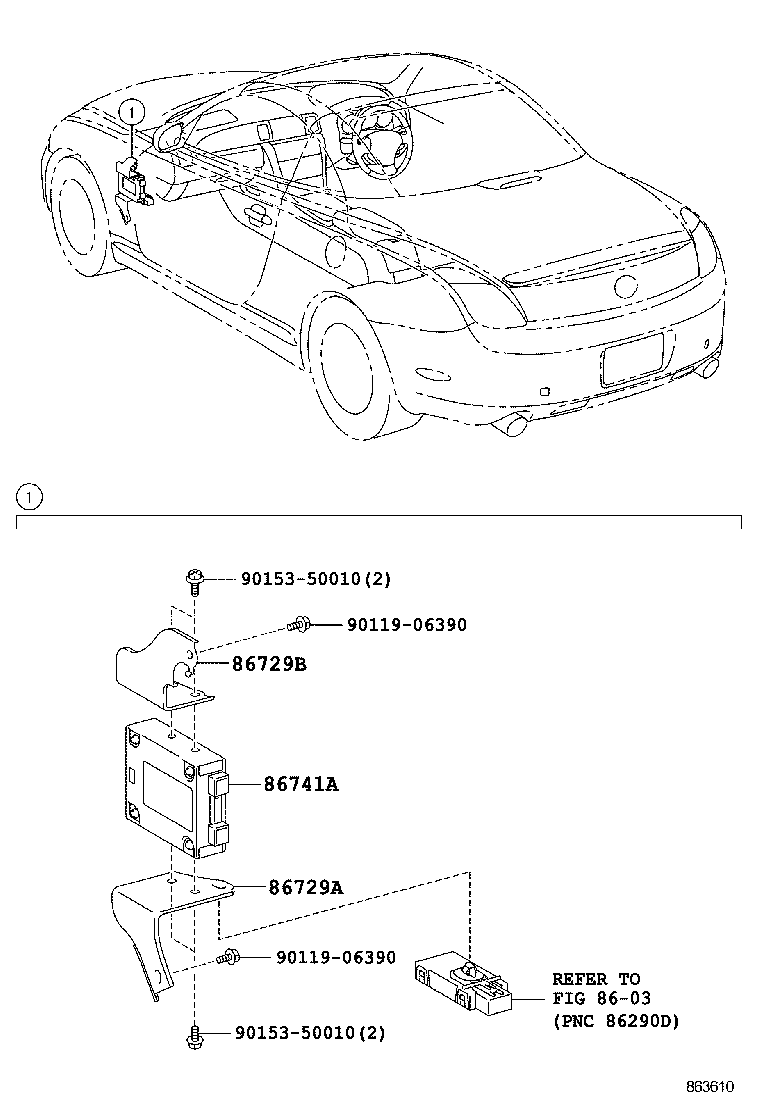

| PNC | Description |
|---|---|
| 86729A | Bracket, Mobilephone, NO.1 |
| 86729B | Bracket, Mobilephone, NO.2 |
| 86729C | Bracket, Mobilephone, NO.3 |
| 86729F | Bracket, Mobilephone, NO.4 |
| 86741A | Transceiver, Telematics |
| 86780A | Antenna Assy, Deflector Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
