Toyota Soarer/Lexus SC430
2001-04 → 2010-07 · chassis UZZ40 · catalogue 321150 · Japan
Discontinued model
Data version 2010-12

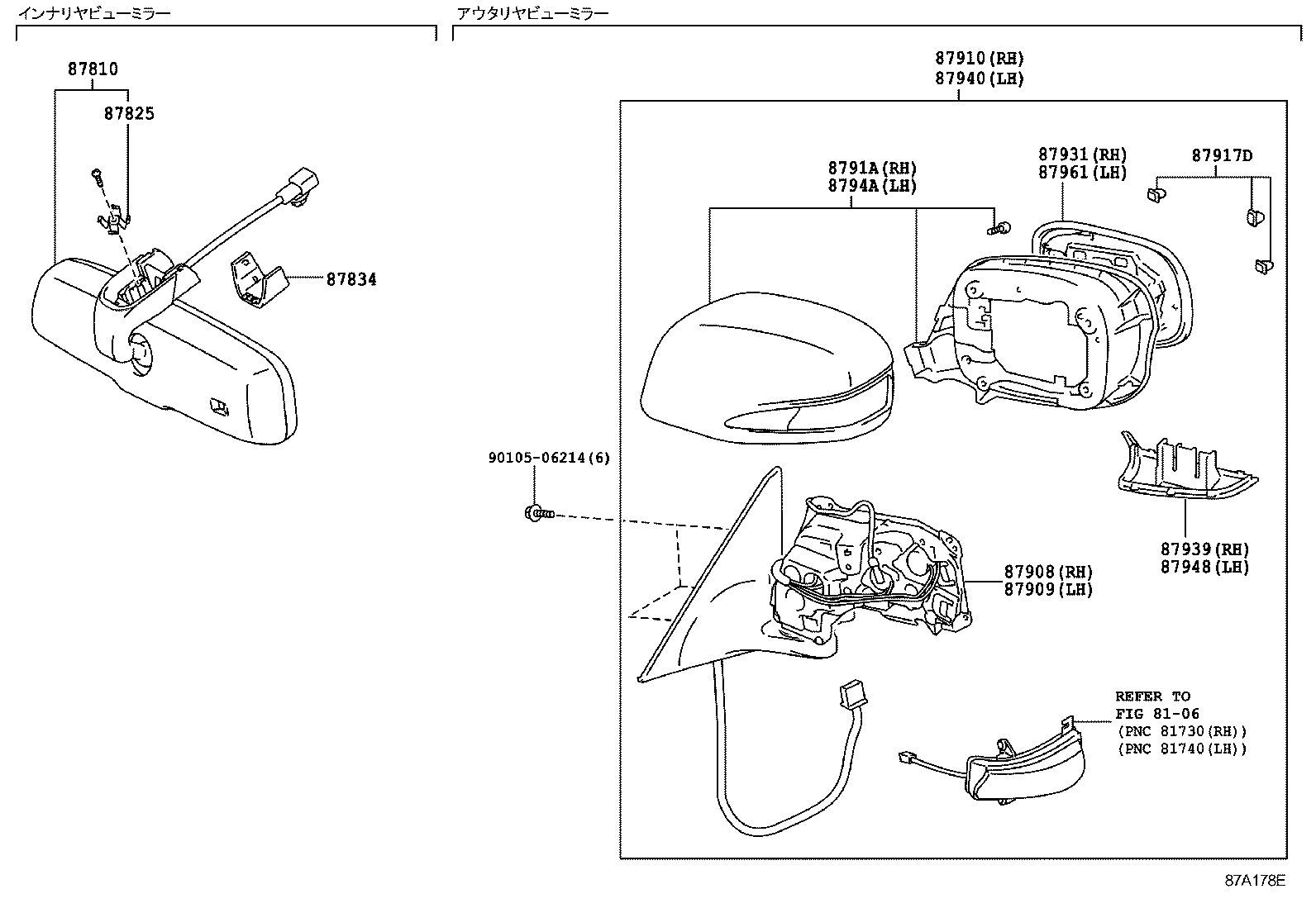

Mirror
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87825 | Spring, Inner Rear View Mirror Setting |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87917D | Clip, Outer Mirror |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
