Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 3 illustrations

Illustrations

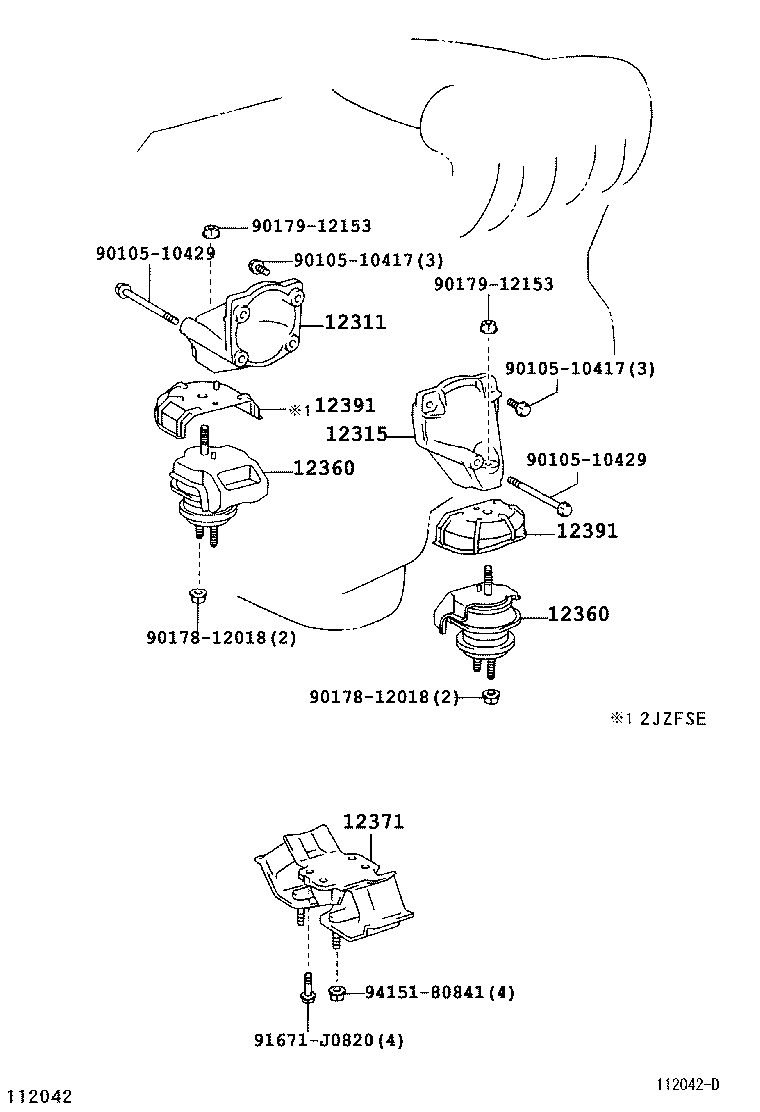

Figure 111094 111094 1998-05 → 2001-04 Figure 112058A 112058A 1999-12 → — Figure 112042D 112042D 2001-04 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
