Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 3 illustrations

Illustrations

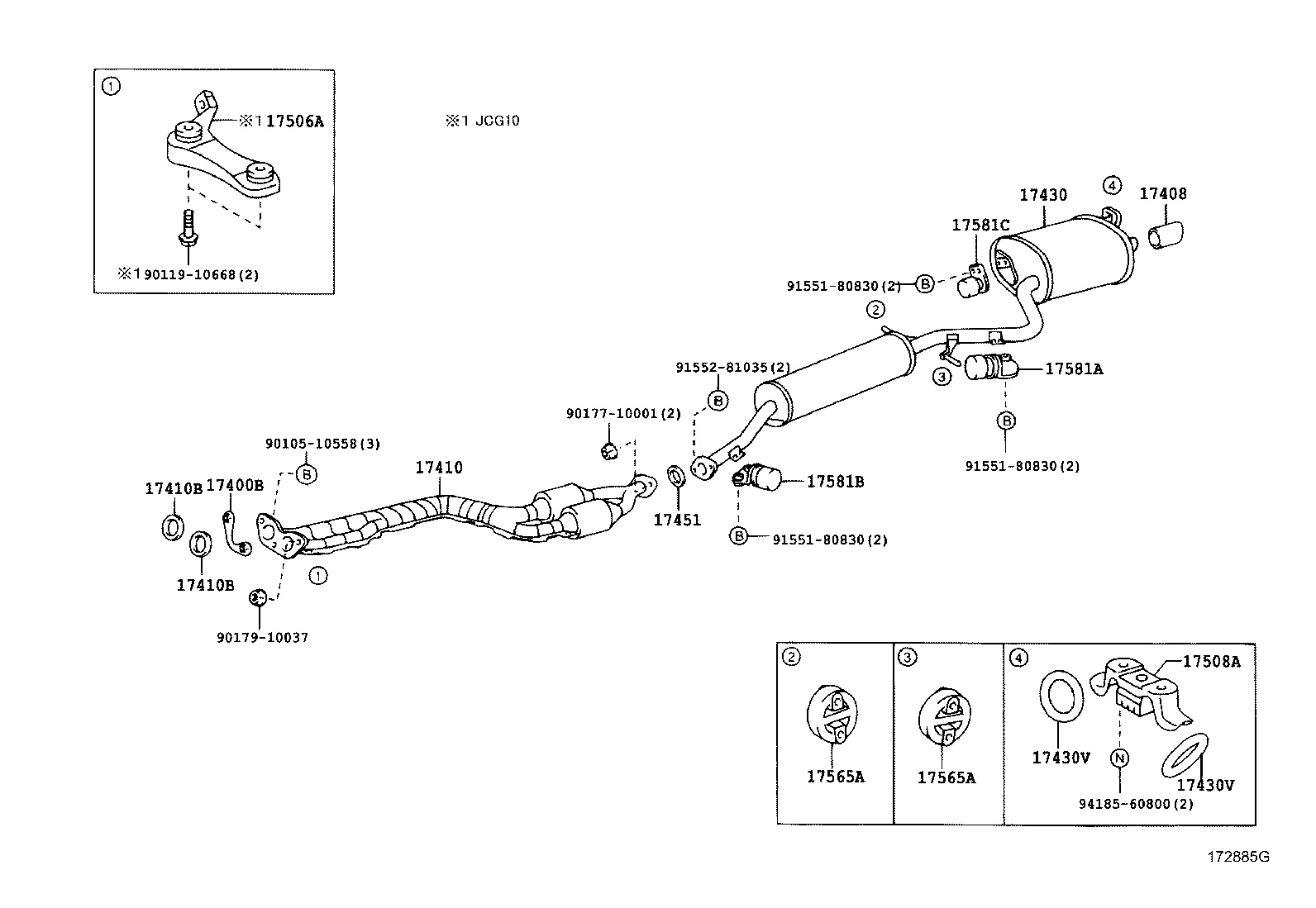

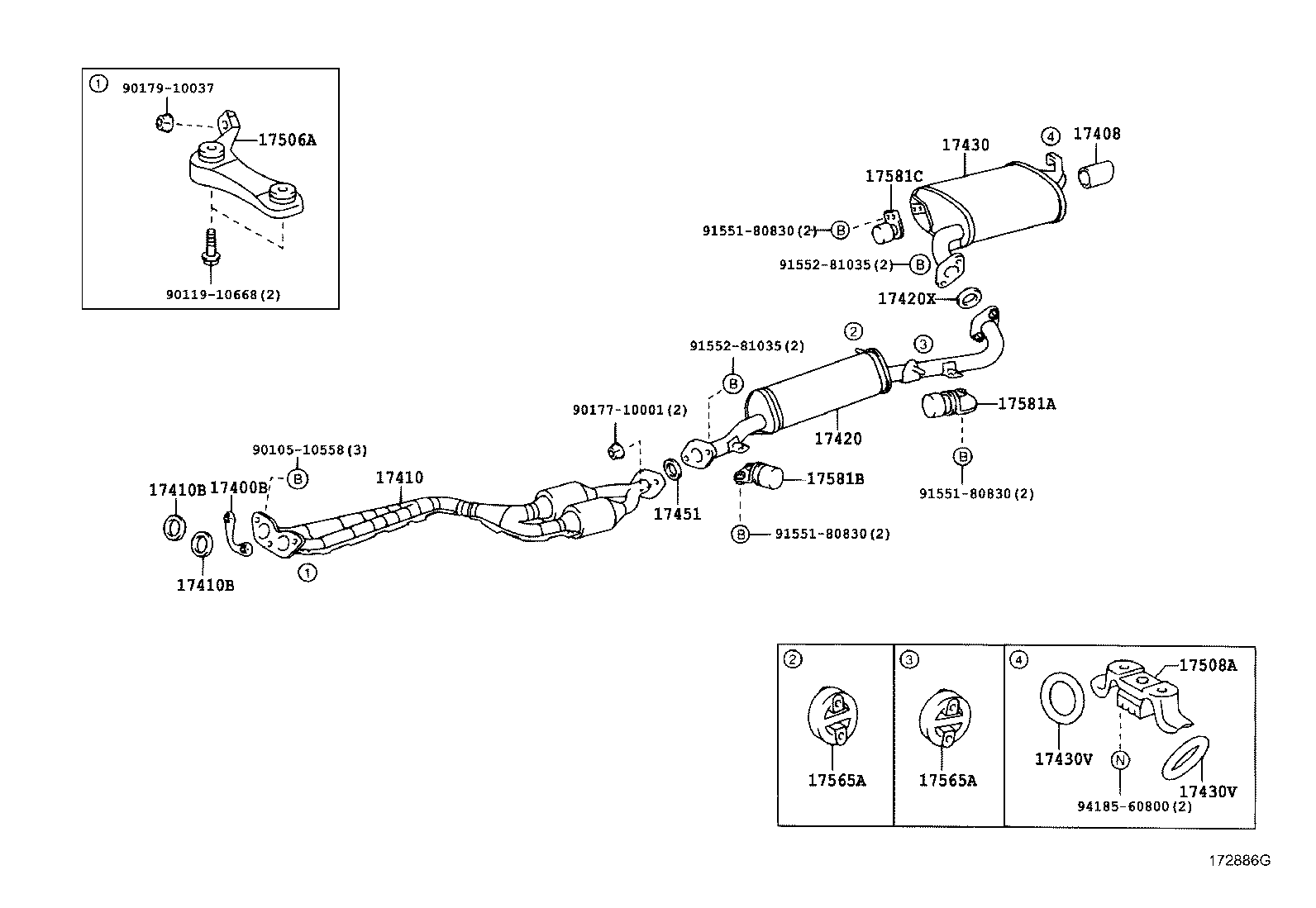

Figure 171702G 171702G 1998-05 → 2001-04 Figure 172885G 172885G 2001-04 → — Figure 172886G 172886G 2001-04 → —

Part groups

PNCDescription
17400B Retainer, Exhaust Pipe
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
17581C Damper, Exhaust Pipe, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
