Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 2 illustrations

Illustrations

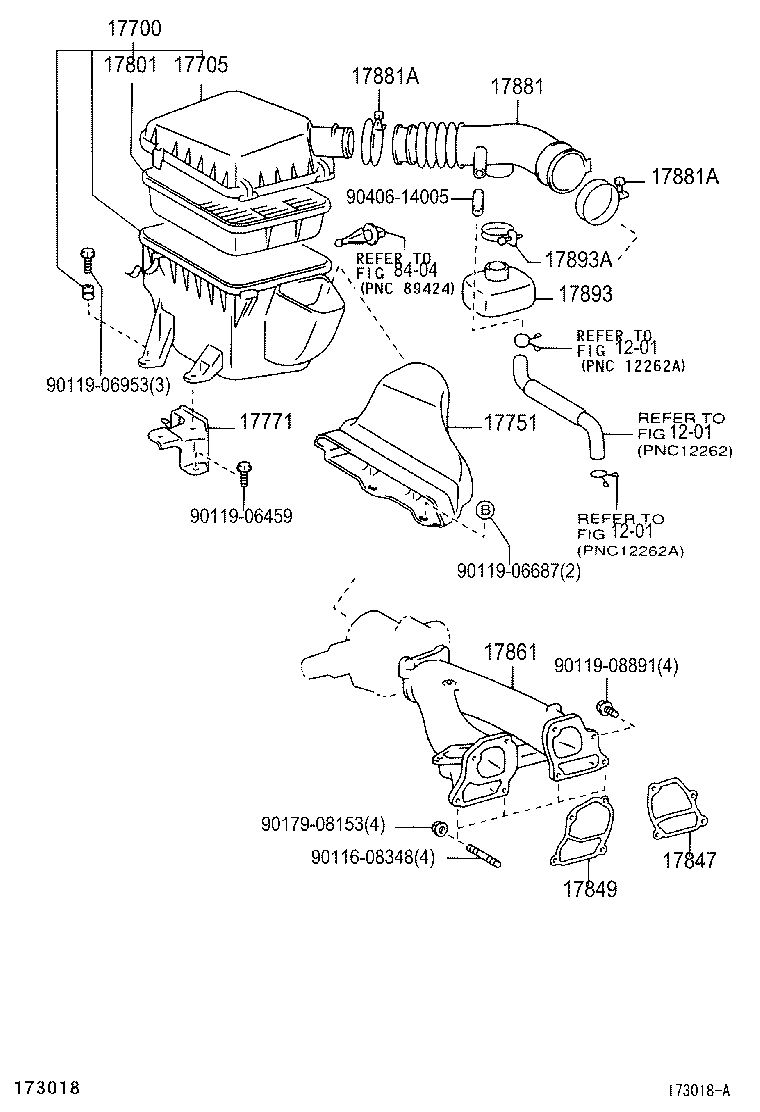

Figure 171713C 171713C 1998-05 → 2001-04 Figure 173018A 173018A 2001-04 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17847 Gasket, Intake Air Connector, NO.2
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17861L Elbow(FOR INTAKE AIR CONNECTOR)
17861M Ring, O(FOR INTAKE AIR CONNECTOR)
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17893 Resonator, Intake Air
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
