Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

46 part groups · 13 illustrations

Illustrations

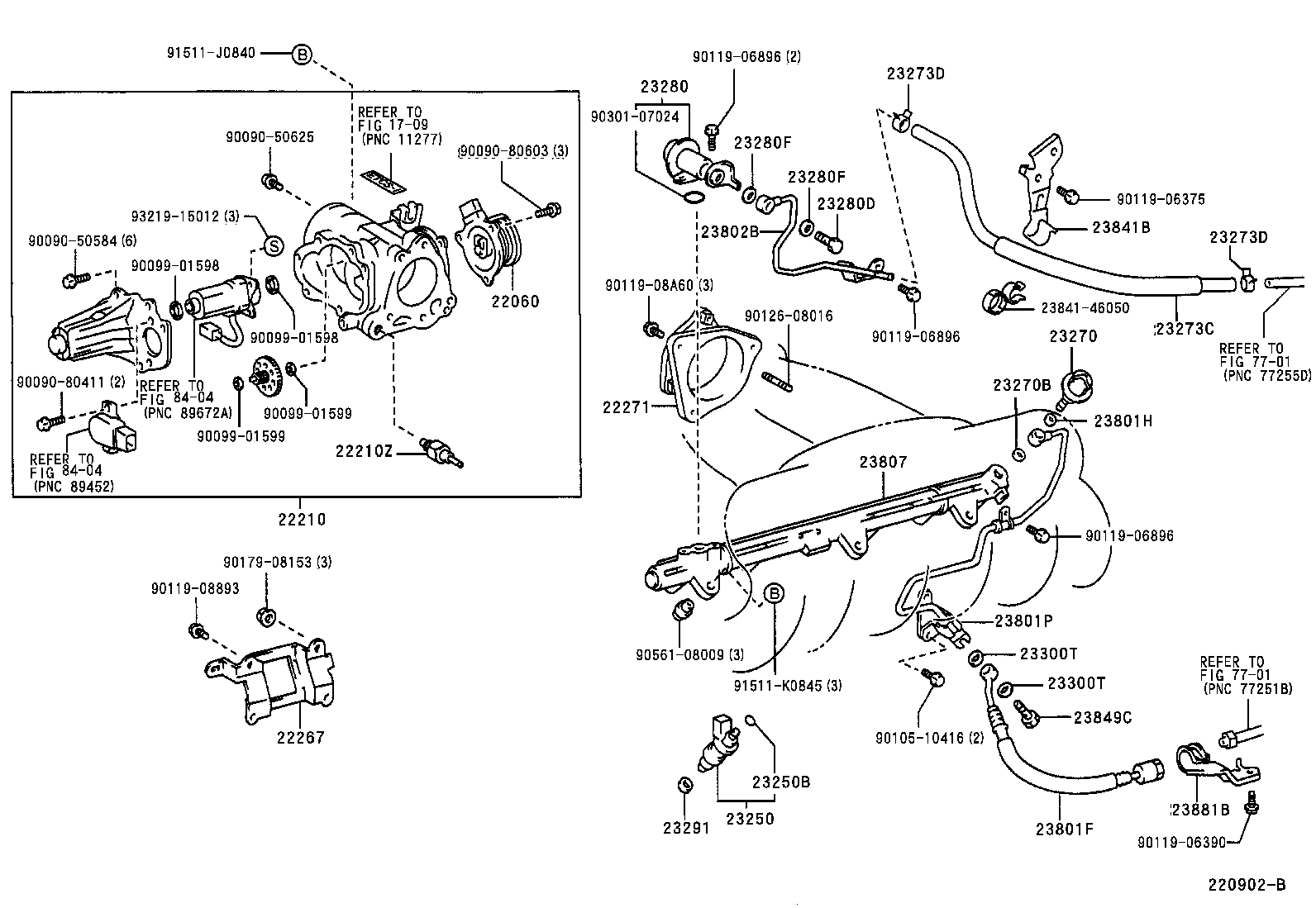

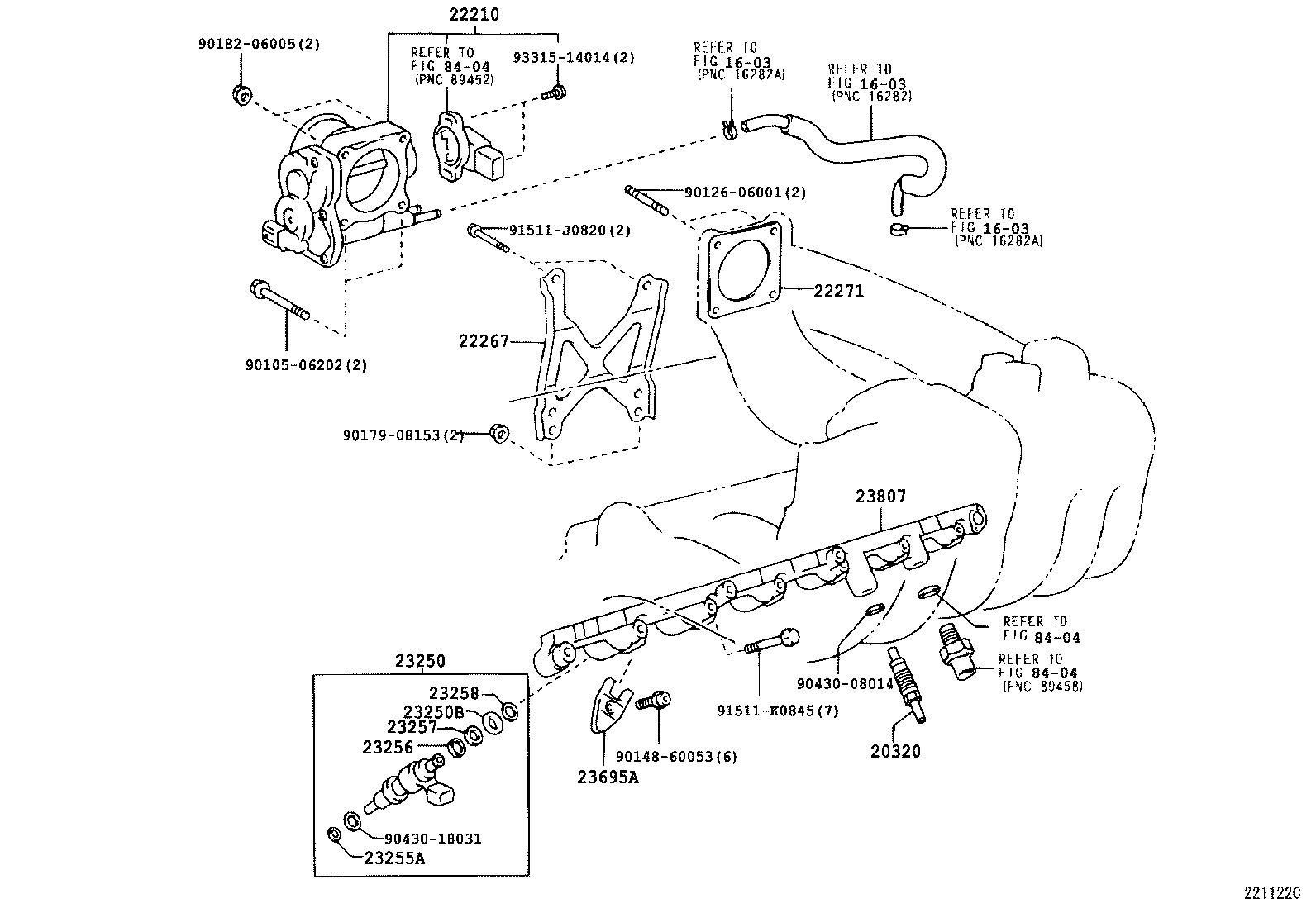

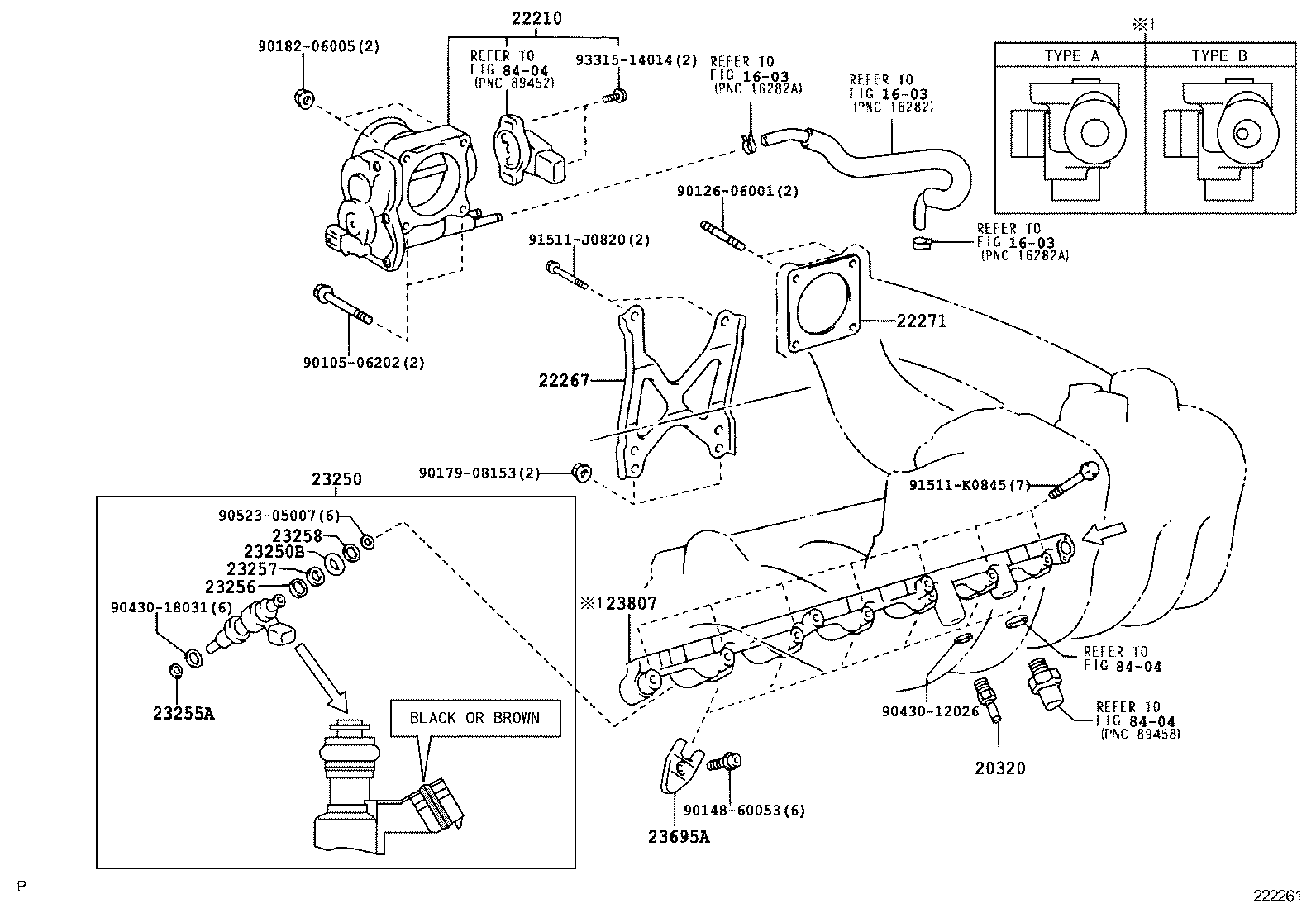

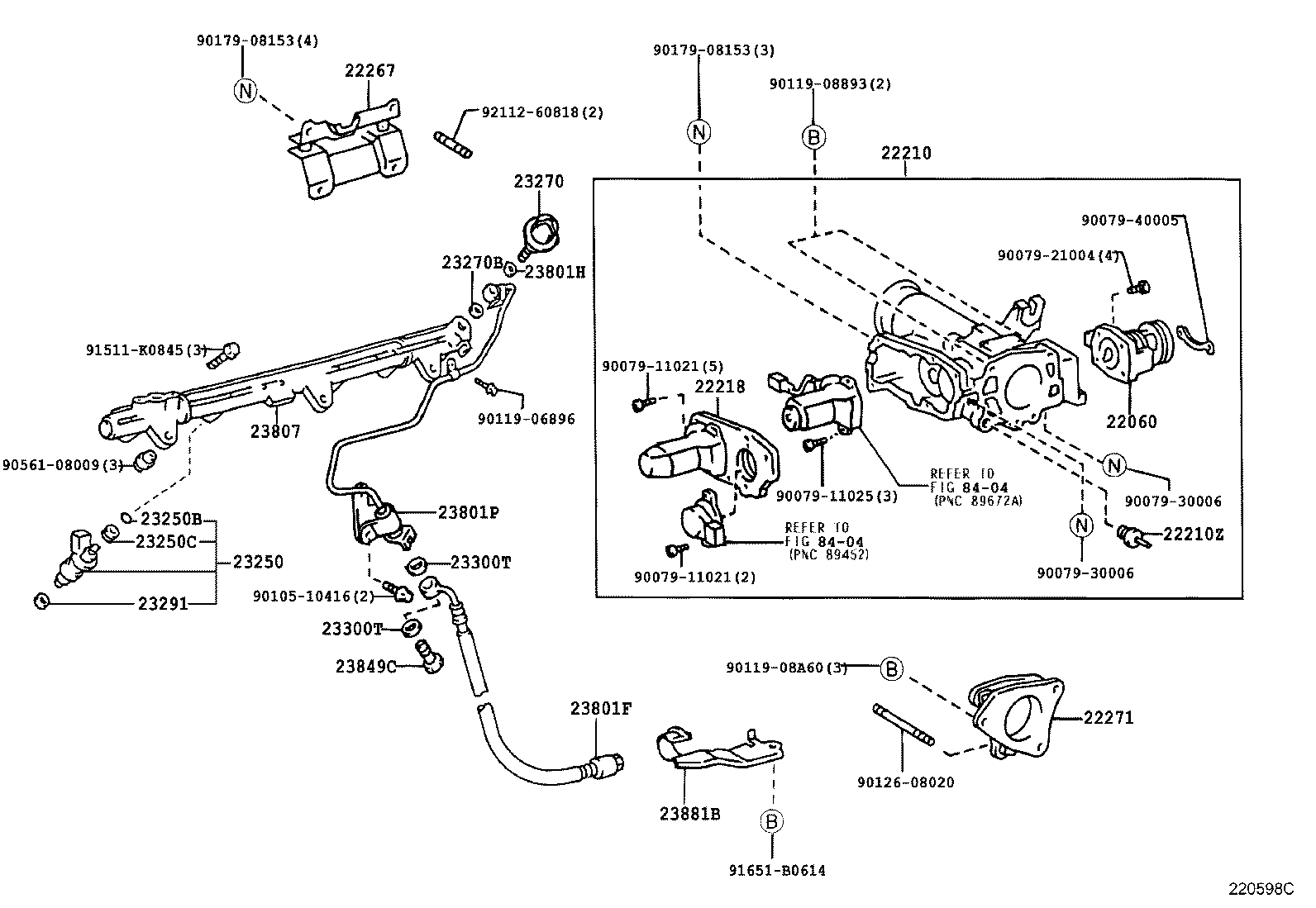

Figure 220596D 220596D 1998-05 → 2001-04 Figure 220902B 220902B 1999-12 → 2001-04 Figure 220598C 220598C 1998-05 → 2001-04 Figure 220597 220597 1998-05 → 1999-12 Figure 220919 220919 1999-12 → 2001-04 Figure 220969 220969 1998-05 → 1999-12 Figure 220918A 220918A 1999-12 → 2001-04 Figure 222261 222261 2001-04 → 2001-08 Figure 222261 222261 2001-08 → — Figure 221122C 221122C 2001-04 → 2001-08 Figure 221123E 221123E 2001-04 → — Figure 221124D 221124D 2001-04 → — Figure 221120 221120 2001-04 → —

Part groups

PNCDescription
20320 Valve Assy, Fuel Relief
22060 Lever Assy, Throttle W/Sensor
22210 Body Assy, Throttle
22210Z Thermostat, Manifold
22218 Cover(FOR THROTTLE BODY)
22267 Bracket, Throttle Body
22271 Gasket, Throttle Body
23020A Regulator Assy, Fuel Pressure W/Jet Pump
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23217A Filter, Fuel Pump
23220P Pump Assy, Fuel
23222 Tube, Fuel Return Jet
23229 Clip(FOR FUEL PUMP FILTER)
23249 Rubber, Cushion(FOR FUEL PUMP)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23255A Seal, Fuel Injector
23256 Ring, Fuel Injector Back-up, NO.1
23256A Ring, Fuel Pipe, NO.1
23257 Ring, Fuel Injector Back-up, NO.2
23257A Ring, Fuel Pipe, NO.2
23258 Ring, Fuel Injector Back-up, NO.3
23258A Ring, Fuel Pipe, NO.3
23270 Damper Assy, Fuel Pressure Pulsation
23270B Gasket(FOR PULSATION DAMPER HOSE)
23271F Hose, Fuel
23273C Hose, Fuel, NO.2
23273D Clip(FOR FUEL HOSE NO.2)
23280 Regulator Assy, Fuel Pressure
23280D Bolt, Union(FOR FUEL PIPE OR HOSE SET)
23280F Gasket(FOR FUEL PRESSURE REGULATOR)
23291 Insulator, Injector Vibration
23300T Gasket(FOR FUEL FILTER)
23300Z Filter, Fuel(FOR FUEL TANK)
23695A Clamp, Nozzle Holder
23801F Hose, Fuel, NO.1
23801H Gasket(FOR FUEL PIPE)
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2
23803B Pipe Sub-assy, Fuel, NO.3
23807 Pipe Sub-assy, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23849C Bolt, Union(FOR FUEL PIPE SUPPORT)
23881B Bracket, Fuel Hose
23915 Insulator, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
