Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 3 illustrations

Illustrations

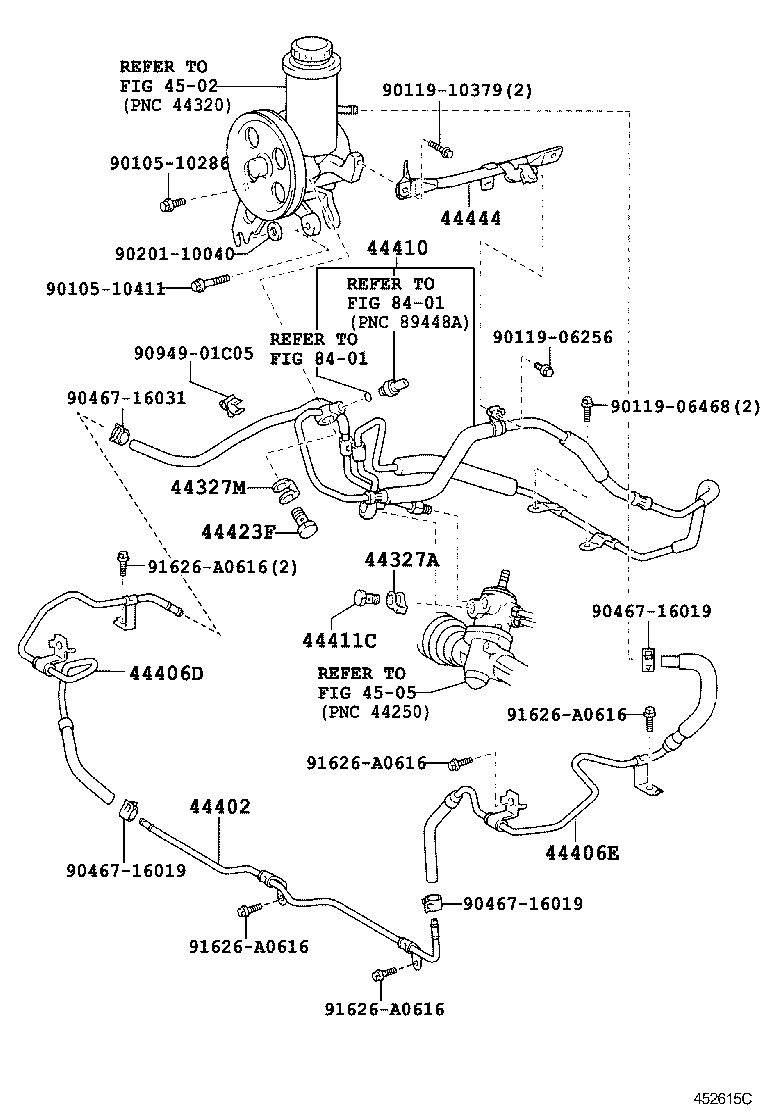

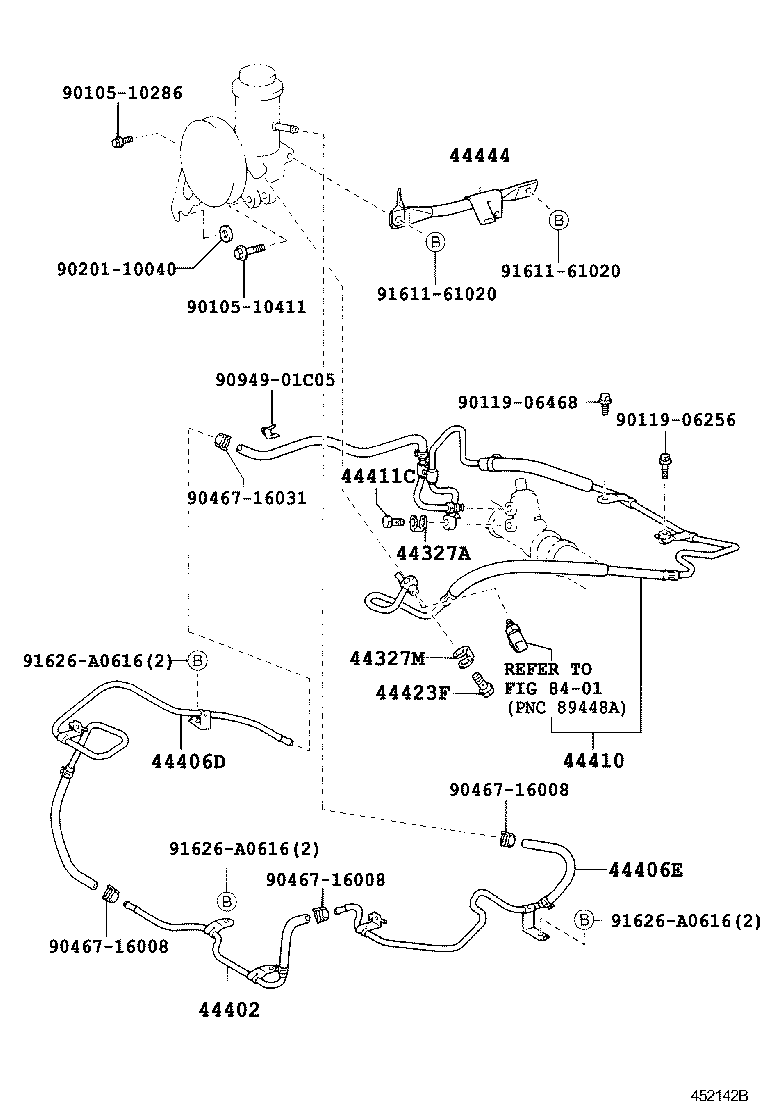

Figure 451327D 451327D 1998-05 → — Figure 452142B 452142B 1999-12 → 2001-04 Figure 452615C 452615C 2001-04 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44423F Bolt, Union
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
