Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 2 illustrations

Illustrations

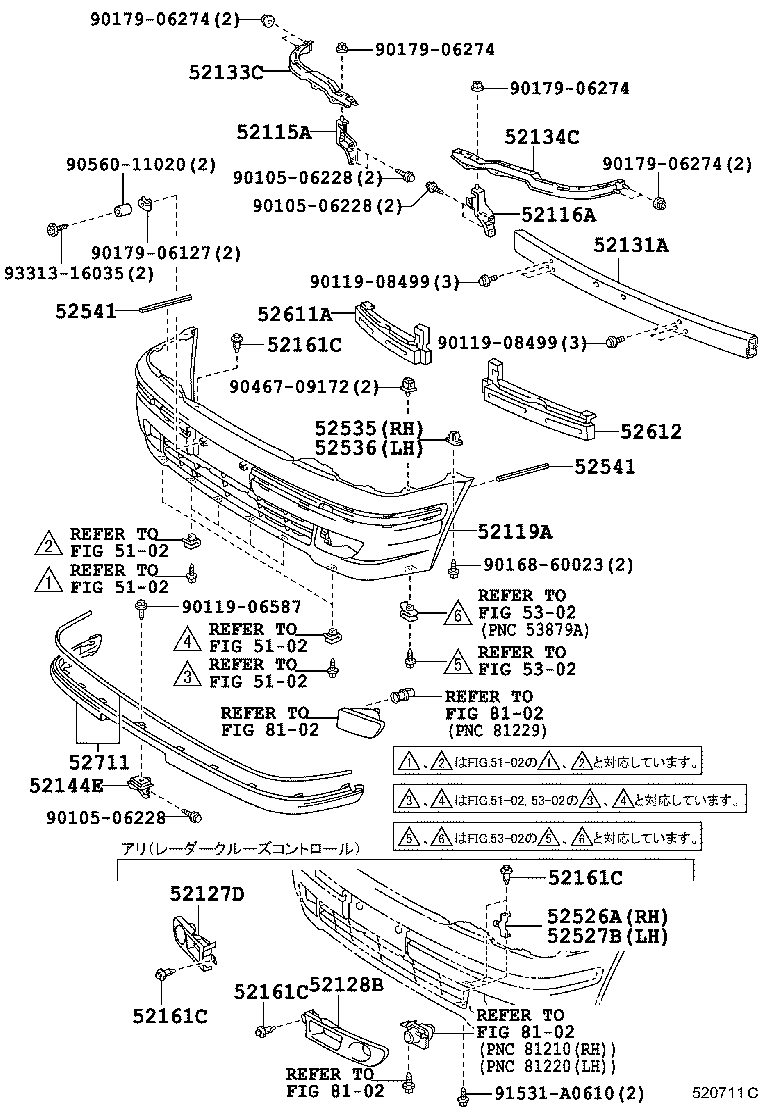

Figure 520404H 520404H 1998-05 → 2001-04 Figure 520711C 520711C 2001-04 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52133C Reinforcement, Front Bumper Bar, RH
52134C Reinforcement, Front Bumper Bar, LH
52144E Stay, Front Bumper, Center
52161C Piece, Front Bumper
52526A Retainer, Front Bumper, Lower NO.1
52527B Retainer, Front Bumper, Lower NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
