Toyota Progres
1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan
Discontinued model
Data version 2008-01

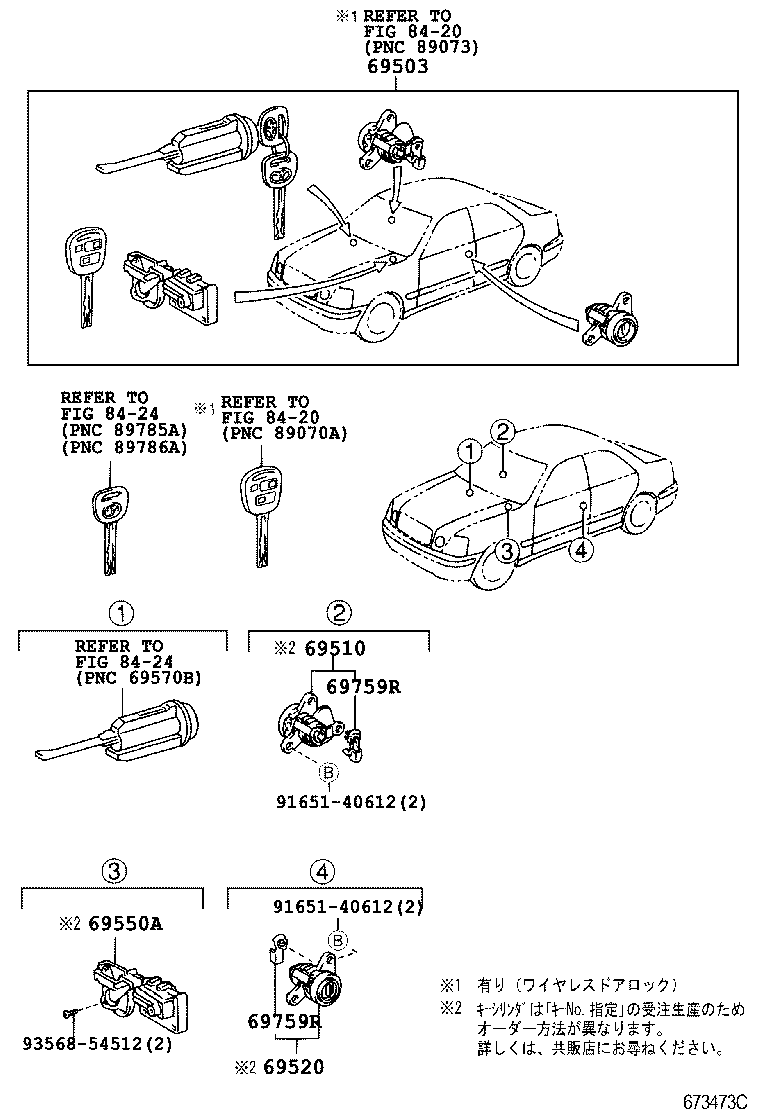

Lock Cylinder Set
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69560A | Cylinder Assy, Luggage Compartment Door Lock |
| 69759G | Snap, Luggage Door Lock Cylinder |
| 69759R | Snap, Front Door Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
