Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

12 part groups · 2 illustrations

Illustrations

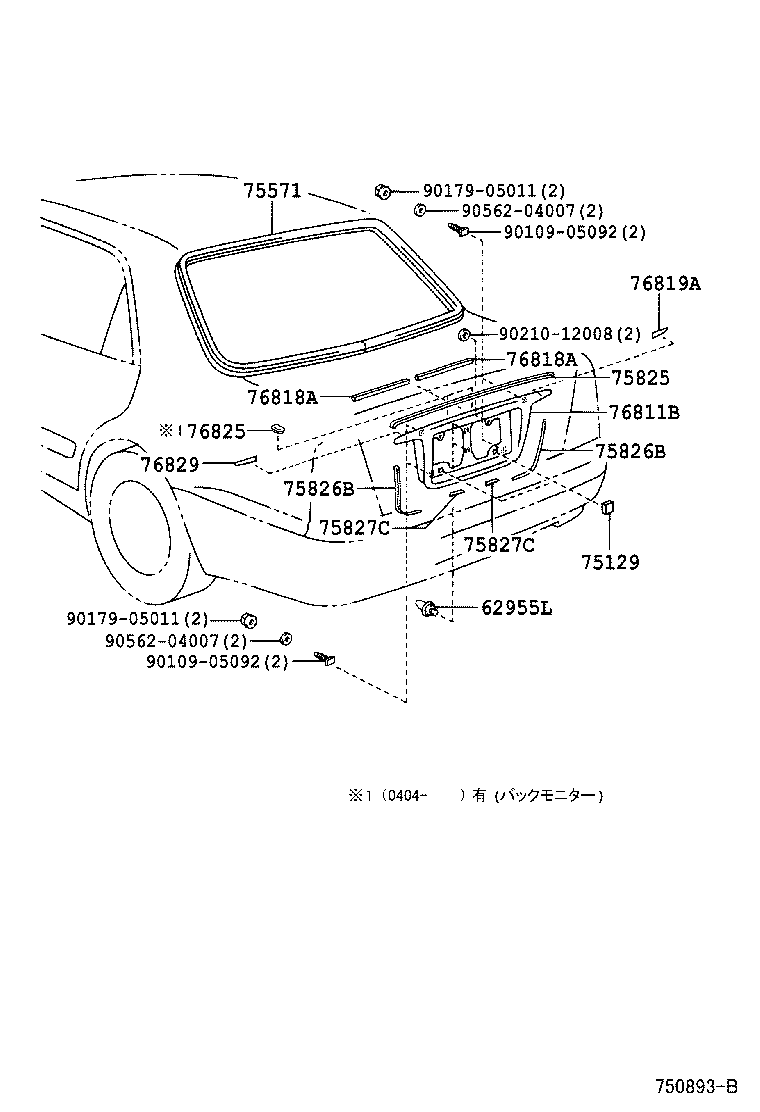

Figure 750494B 750494B 1998-05 → 2001-04 Figure 750893B 750893B 2001-04 → —

Part groups

PNCDescription
62955L Retainer, Quarter Vent Louver
75129 Cushion, Rear License Plate
75571 Moulding, Back Window, Outside Upper
75819 Clip, Luggage Compartment Door Moulding
75825 Pad, Luggage Compartment Door Moulding
75826B Pad, Luggage Compartment Door Moulding, NO.2
75827C Pad, Luggage Compertment Door Moulding, NO.3
76811B Garnish, Luggage Compartment Door, Outside
76818A Pad, Luggage Garnish, NO.1
76819A Seal, Luggage Compertment Door Moulding, RH
76825 Protector, Back Door Outside Garnish
76829 Seal, Luggage Compertment Door Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
