Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

6 part groups · 2 illustrations

Illustrations

Figure 810929A

810929A 1998-05 → 2001-04

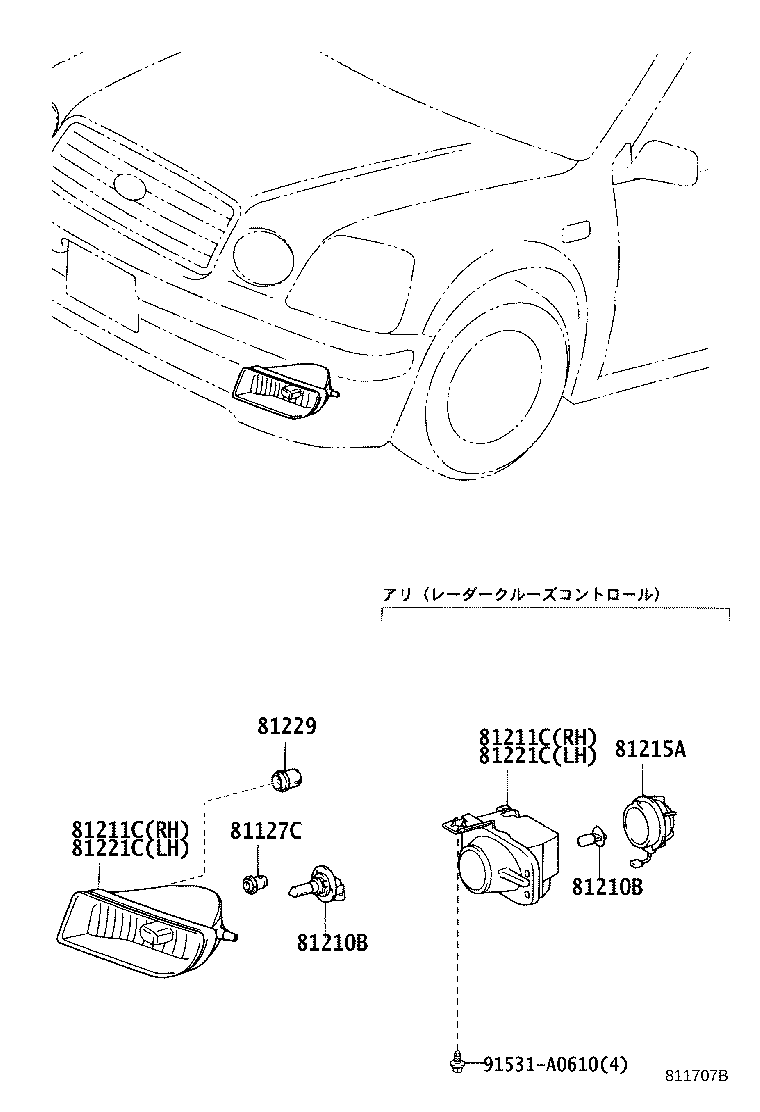

Figure 811707B

811707B 2001-04 → —

Part groups

PNC	Description
81127C	Bearing Fog Lamp
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81215A	Socket & Wire, Fog Lamp
81221C	Lamp Unit, Fog Lamp, LH
81229	Bracket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
