Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

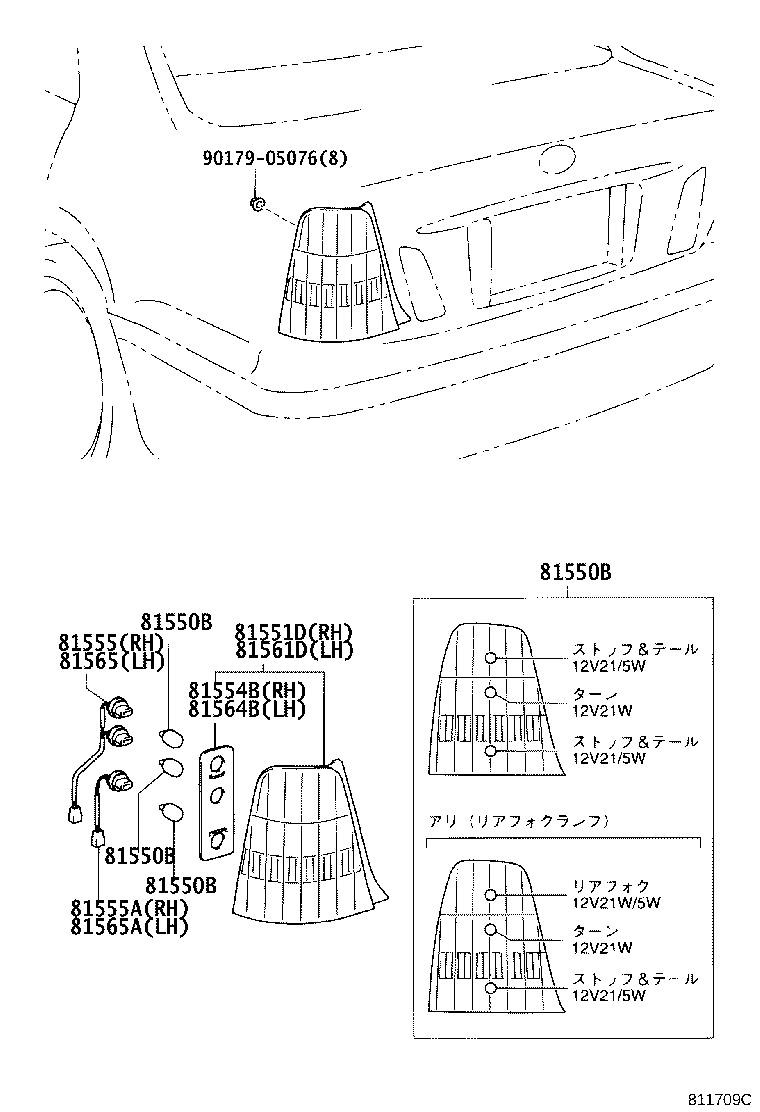

Figure 810931C 810931C 1998-05 → 2001-04 Figure 811709C 811709C 2001-04 → —

Part groups

PNCDescription
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551D Lens & Body, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555A Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
