Toyota Progres
1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan
Discontinued model
Data version 2008-01
Wireless Door Lock

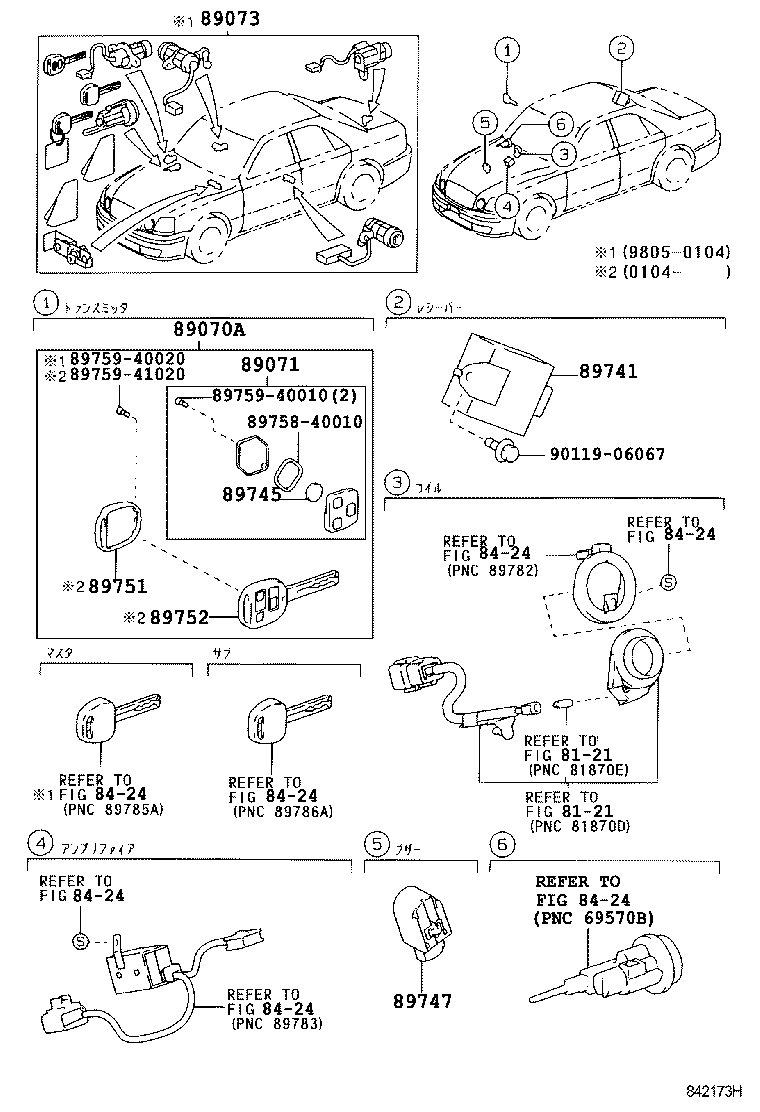

9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 69570A | Cylinder Assy, Ignition Switch Lock |
| 89070A | Transmitter, Door Control (CUT KEY) |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89741 | Receiver, Door Control |
| 89745 | Battery, Transmitter |
| 89747 | Buzzer, Wireless Door Lock |
| 89751 | Cover, Transmitter Housing |
| 89752 | Case, Transmitter Housing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
