Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

5 part groups · 2 illustrations

Illustrations

Figure 842174F

842174F 1998-05 → 2001-04

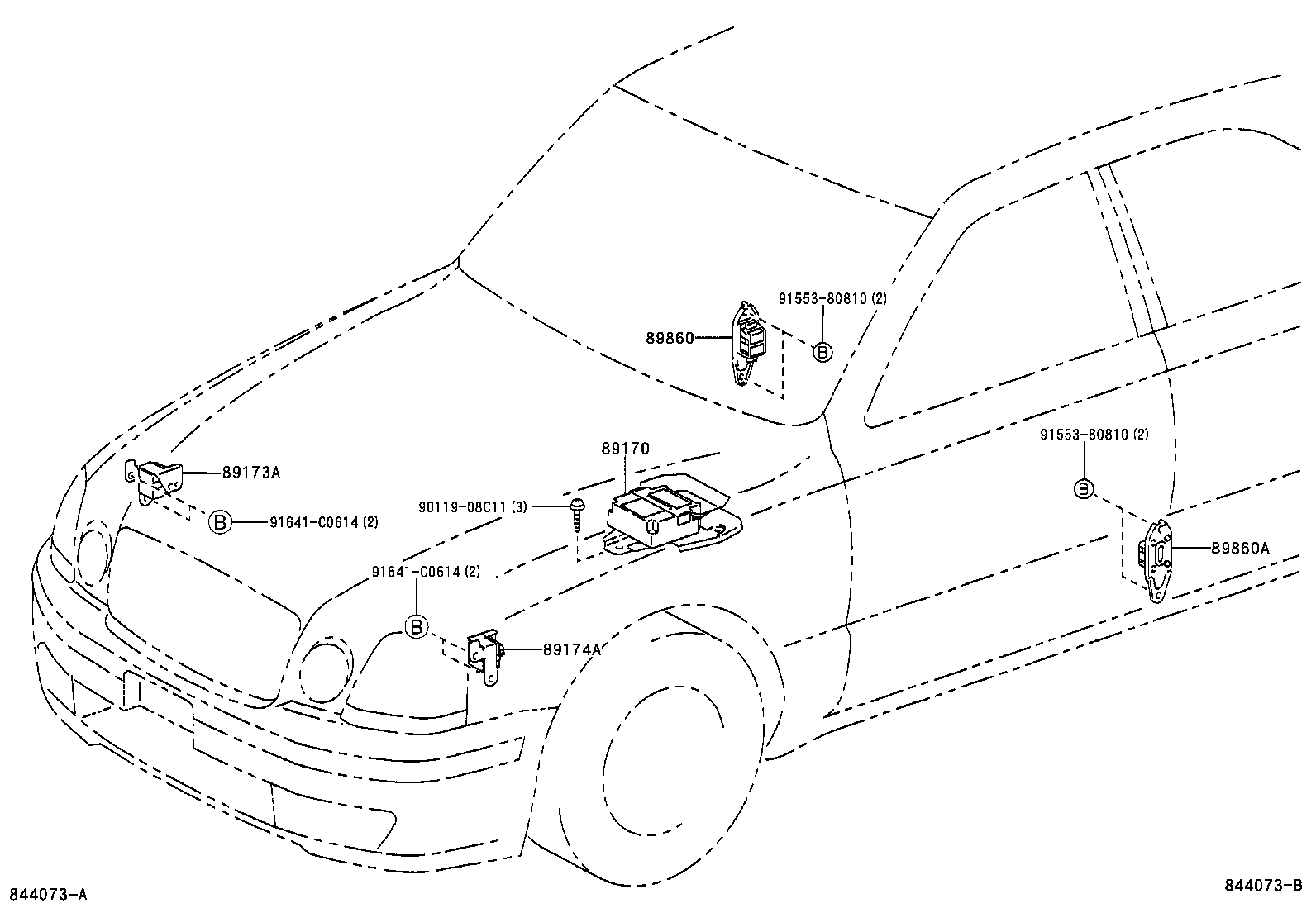

Figure 844073B

844073B 2001-04 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
