Toyota Progres

1998-05 → 2007-06 · chassis JCG1# · catalogue 322110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

18 part groups · 3 illustrations

Illustrations

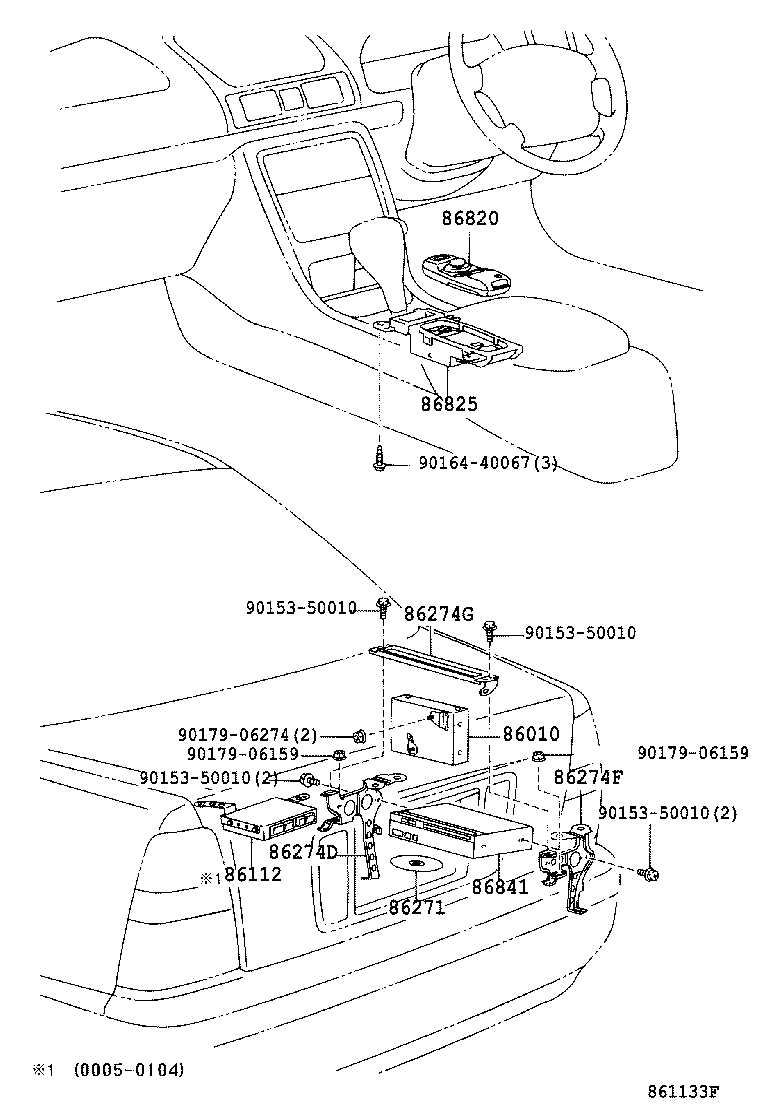

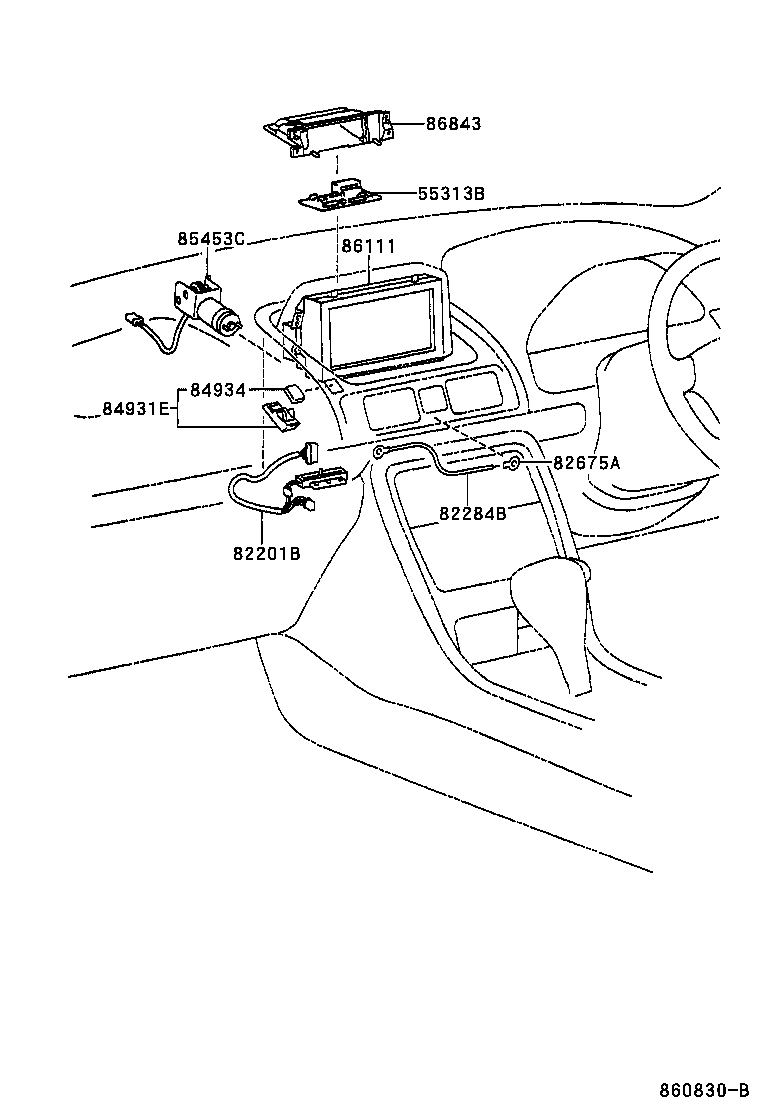

Figure 860745A 860745A 1998-05 → 2000-05 Figure 861133F 861133F 2000-05 → — Figure 860830B 860830B 1998-05 → —

Part groups

PNCDescription
55313B Circuit, Door Control Unit
82201B Wire, Instrument Panel
82284B Wire, Earth
82675A Terminal, Earth
84931E Switch, Door Control
84934 Cover, Door Control Switch
85453C Motor, Door Control
86010 Tuner Assy, Television
86111 Multi-display
86112 Computer, Multi-display (COMPUTER CRT DISPLAY)
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86820 Controller Assy, Navigation
86825 Holder, Navigation Controller
86841 Computer, Navigation
86843 Cover, Navigation Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
