Toyota Origin
2000-08 → 2001-04 · chassis JCG17 · catalogue 323110 · Japan
Discontinued model
Data version 2000-08

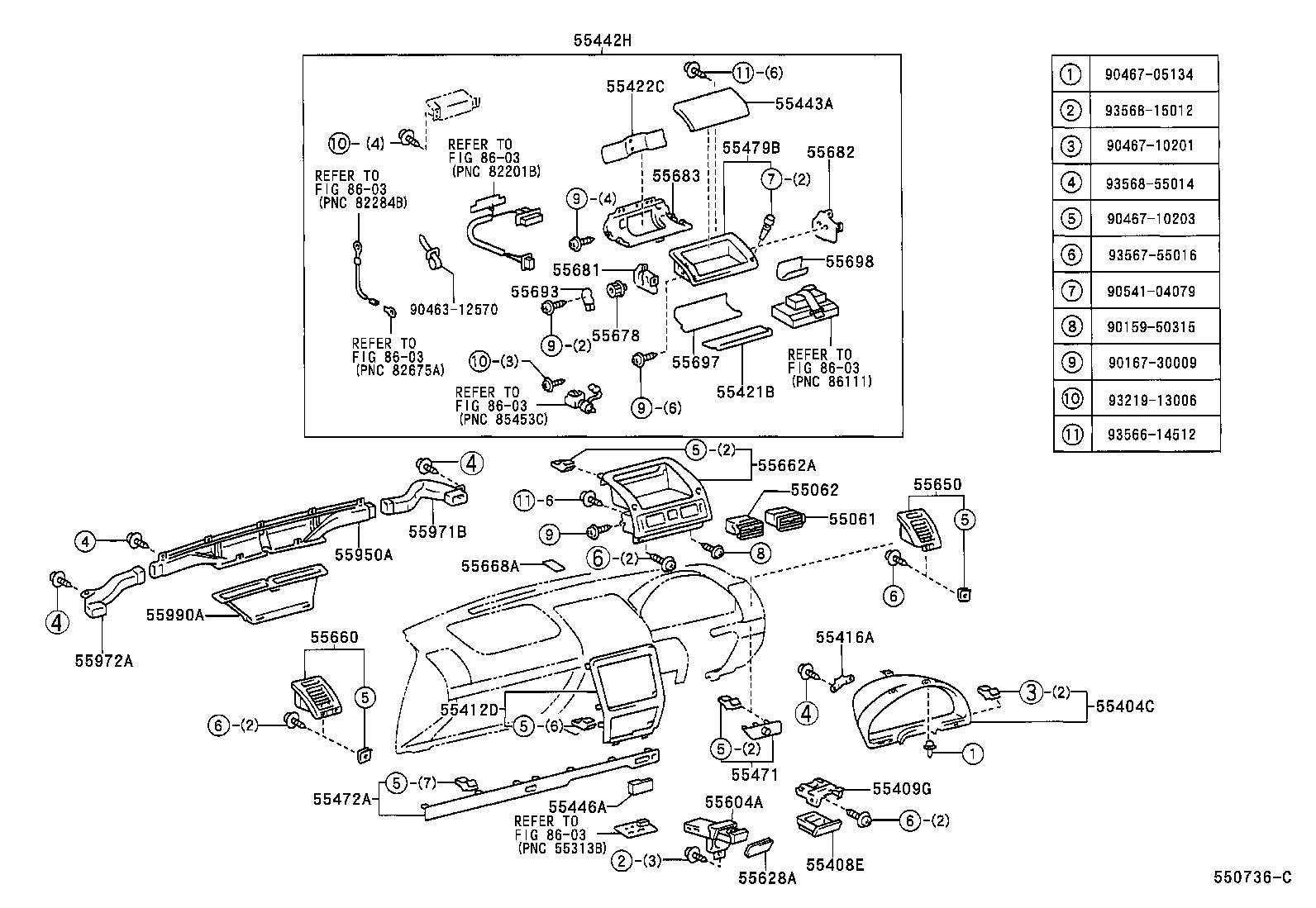

Instrument Panel & Glove Compartment
70 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55352B | Bracket, Center Console, NO.2 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55381A | Bracket, Finish Panel Mounting |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55408E | Box Sub-assy, Instrument Panel Coin |
| 55409G | Retainer Sub-assy, Coin Box |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55418B | Spacer,Meter Hood |
| 55419B | Spacer, Meter Hood, NO.2 |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55423E | Cushion, Center Cluster, NO.1 |
| 55424D | Cushion, Center Cluster, NO.2 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55442H | Door, Instrument Panel |
| 55443A | Cover, Instrument Panel Box Door |
| 55445B | Plate, Instrument Panel Finish |
| 55445C | Plate, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55448A | Cushion, Instrument Panel Finish, NO.1 |
| 55449C | Cushion, Instrument Panel Finish Panel, NO.2 |
| 55471 | Moulding, Instrument Cluster, NO.1 |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55479B | Cover, Instrument, Lower Center |
| 55488B | Lens, Front Foot Lamp, NO.1 |
| 55489B | Lens, Front Foot Lamp, NO.2 |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55524 | Cover, Switch Bace Hole |
| 55554 | Seal, Glove Compartment Door |
| 55560A | Lock Assy, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55628A | Knob, Instrument Panel Cup Holder |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55668A | Cushion, Instr Panel Register, NO.1 |
| 55678 | Seal, Instrument Panel Register Control, NO.2 |
| 55681 | Support, Instrument Panel Register, NO.1 |
| 55682 | Spring, Instrument Panel Register Support |
| 55683 | Support, Instrument Register, NO.3 |
| 55693 | Protector, Control Knob, NO.1 |
| 55697 | Seal, Instrument Panel Register, NO.1 |
| 55698 | Seal, Instrument Panel Register, NO.2 |
| 55950A | Nozzle Assy, Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55990A | Nozzle Assy, Defroster, Lower |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
