Toyota Origin
2000-08 → 2001-04 · chassis JCG17 · catalogue 323110 · Japan
Discontinued model
Data version 2000-08
Wiring & Clamp
24 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

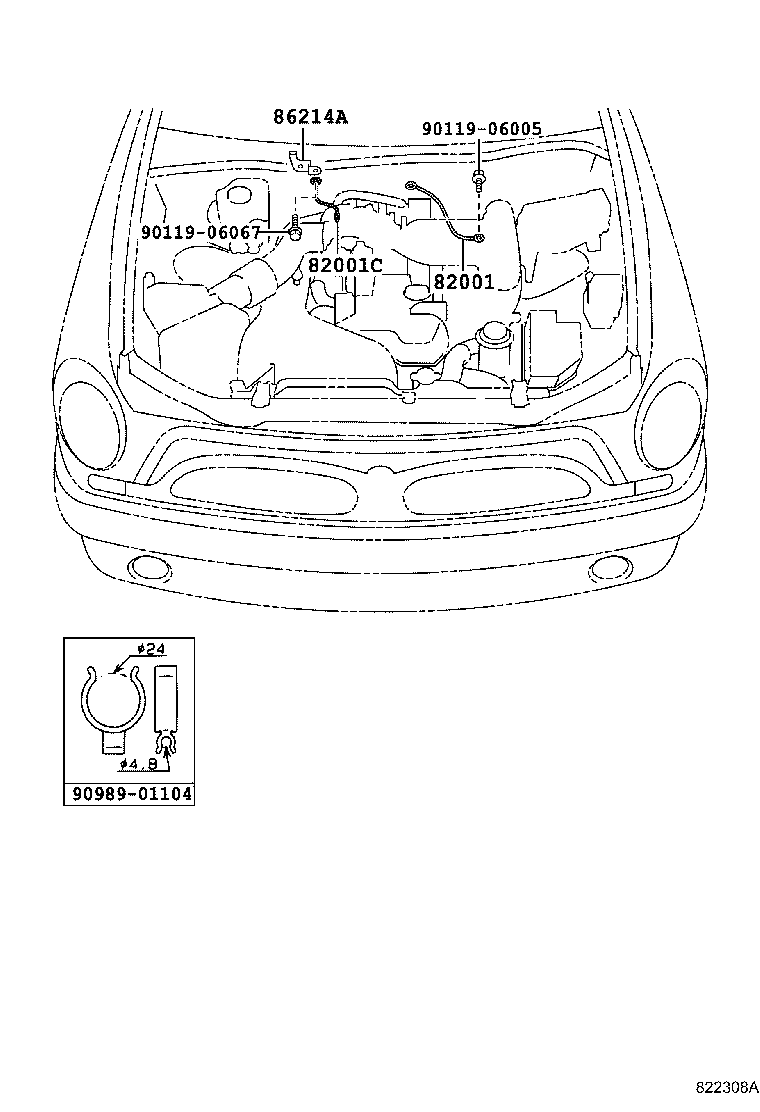

| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |
| 82111 | Wire, Engine Room Main |

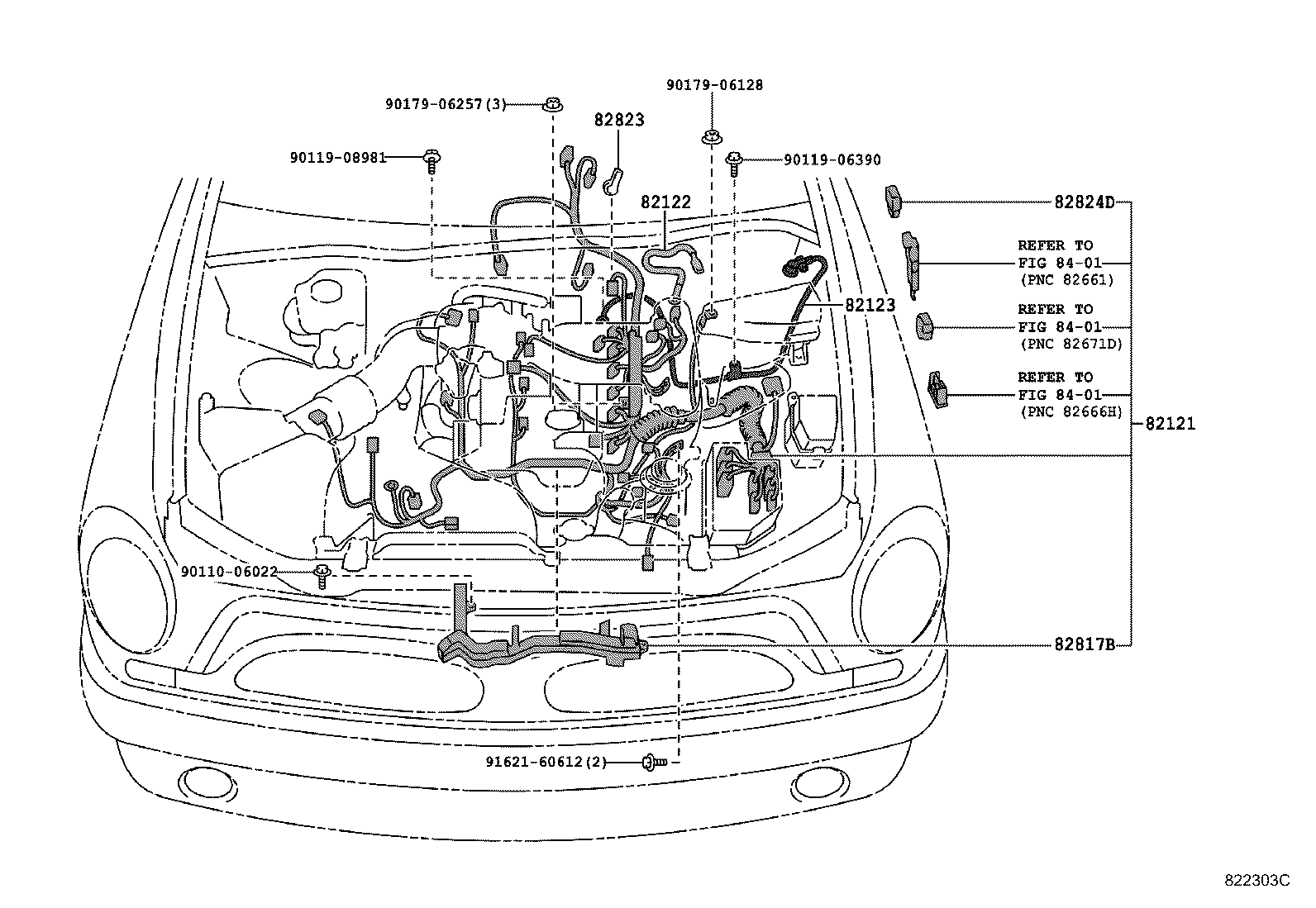

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |

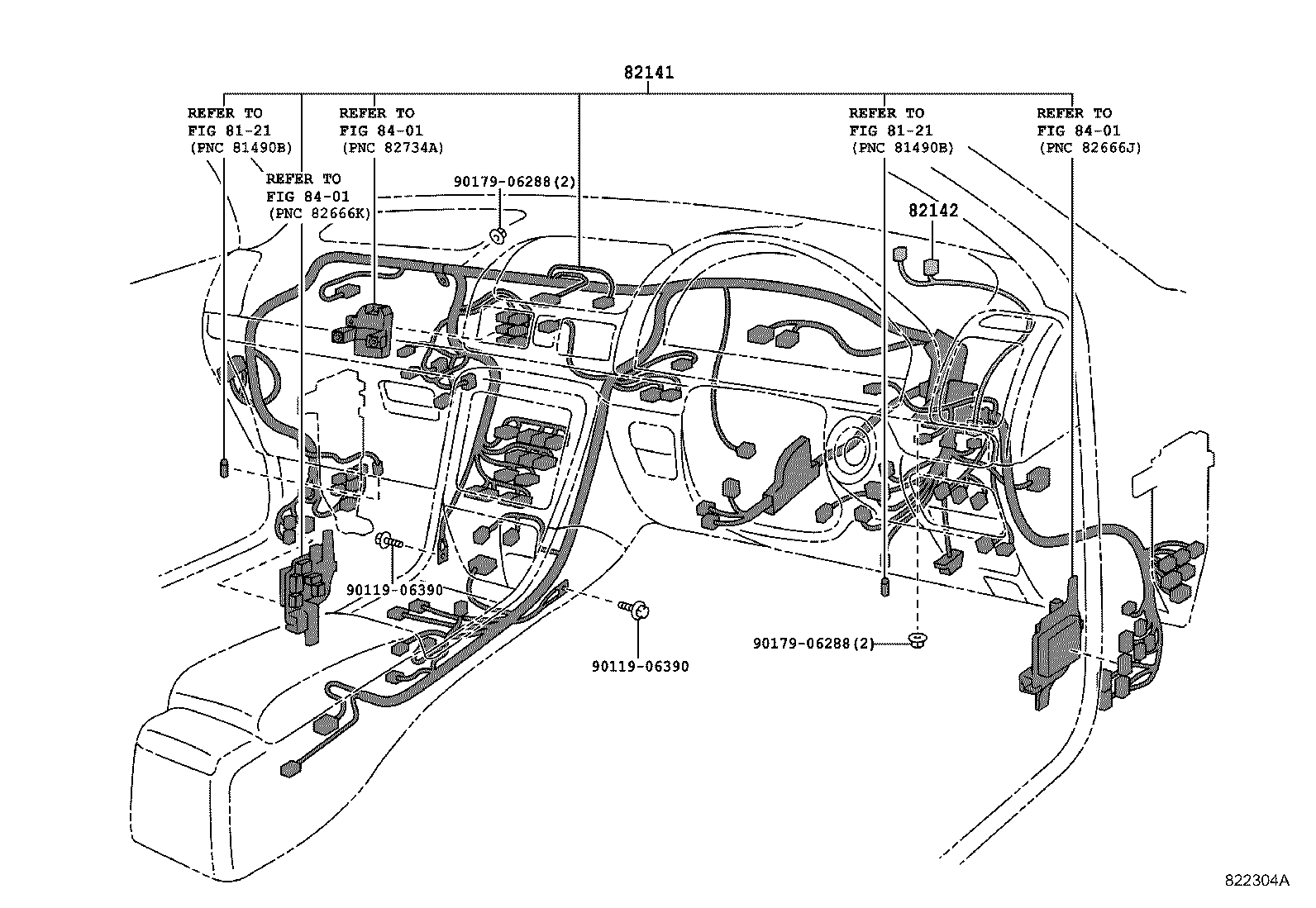

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

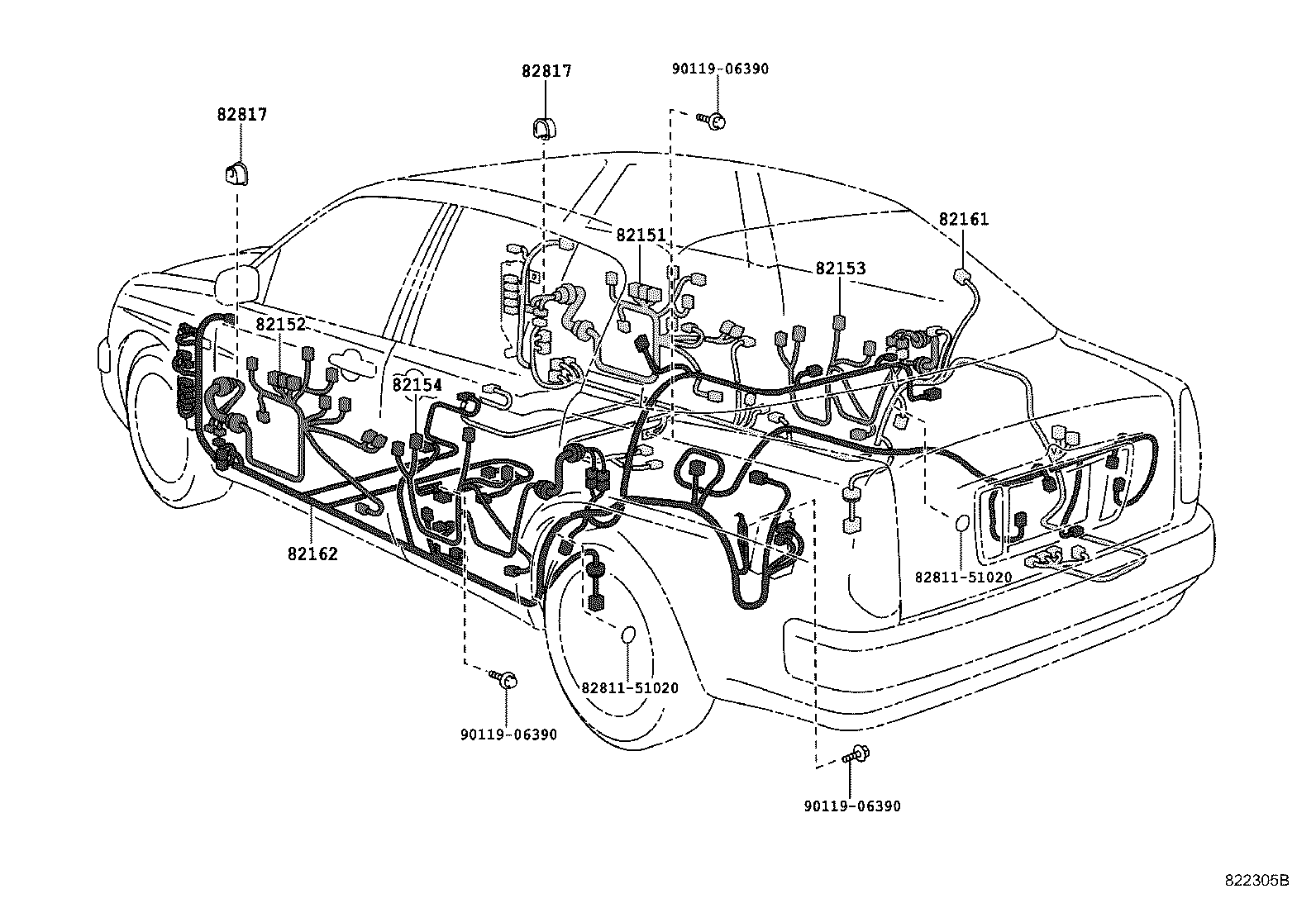

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |

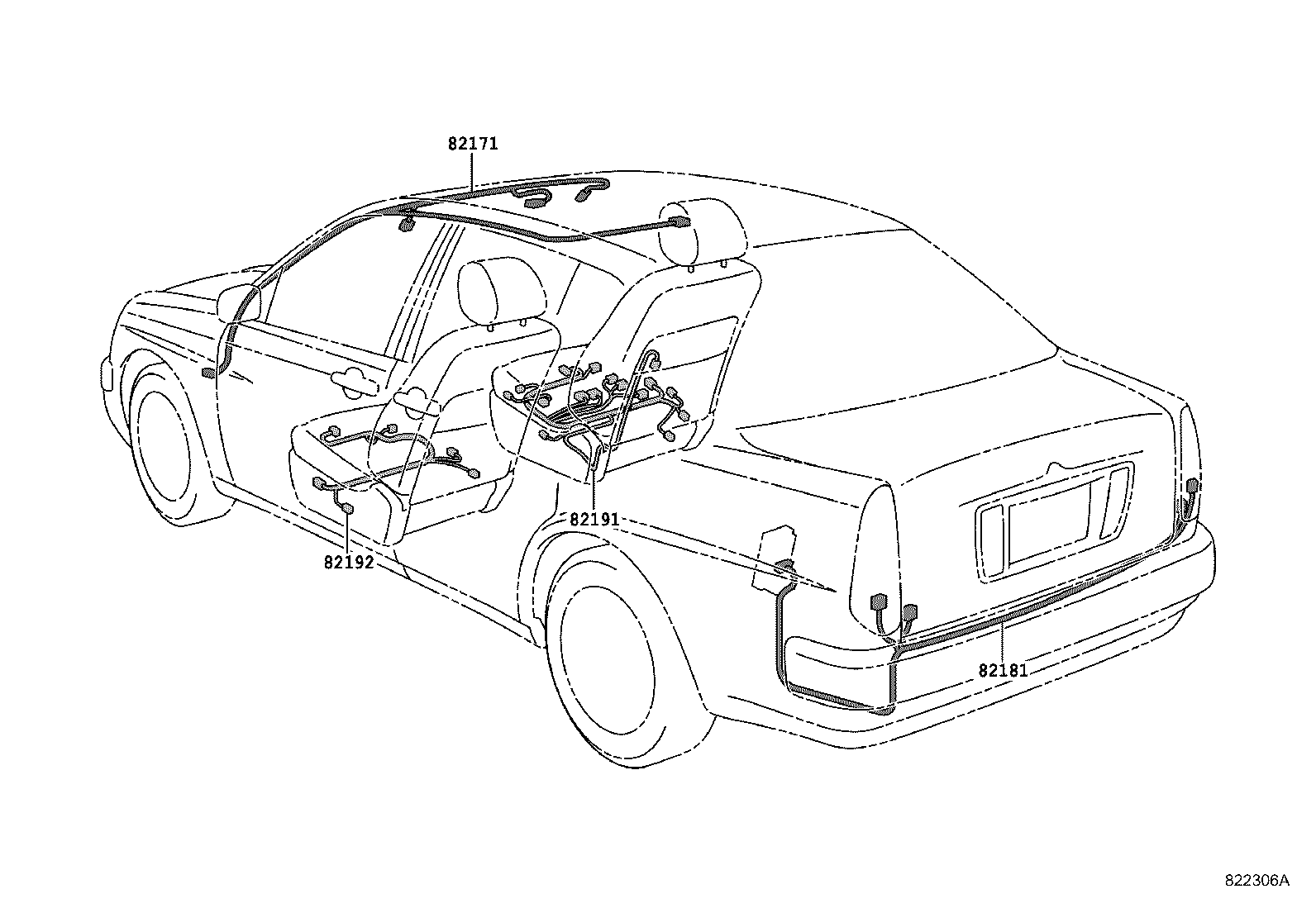

| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82823 | Cap, Terminal, NO.1 |
| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 86214A | Bracket, Radio Earth |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
