Toyota Origin
2000-08 → 2001-04 · chassis JCG17 · catalogue 323110 · Japan
Discontinued model
Data version 2000-08

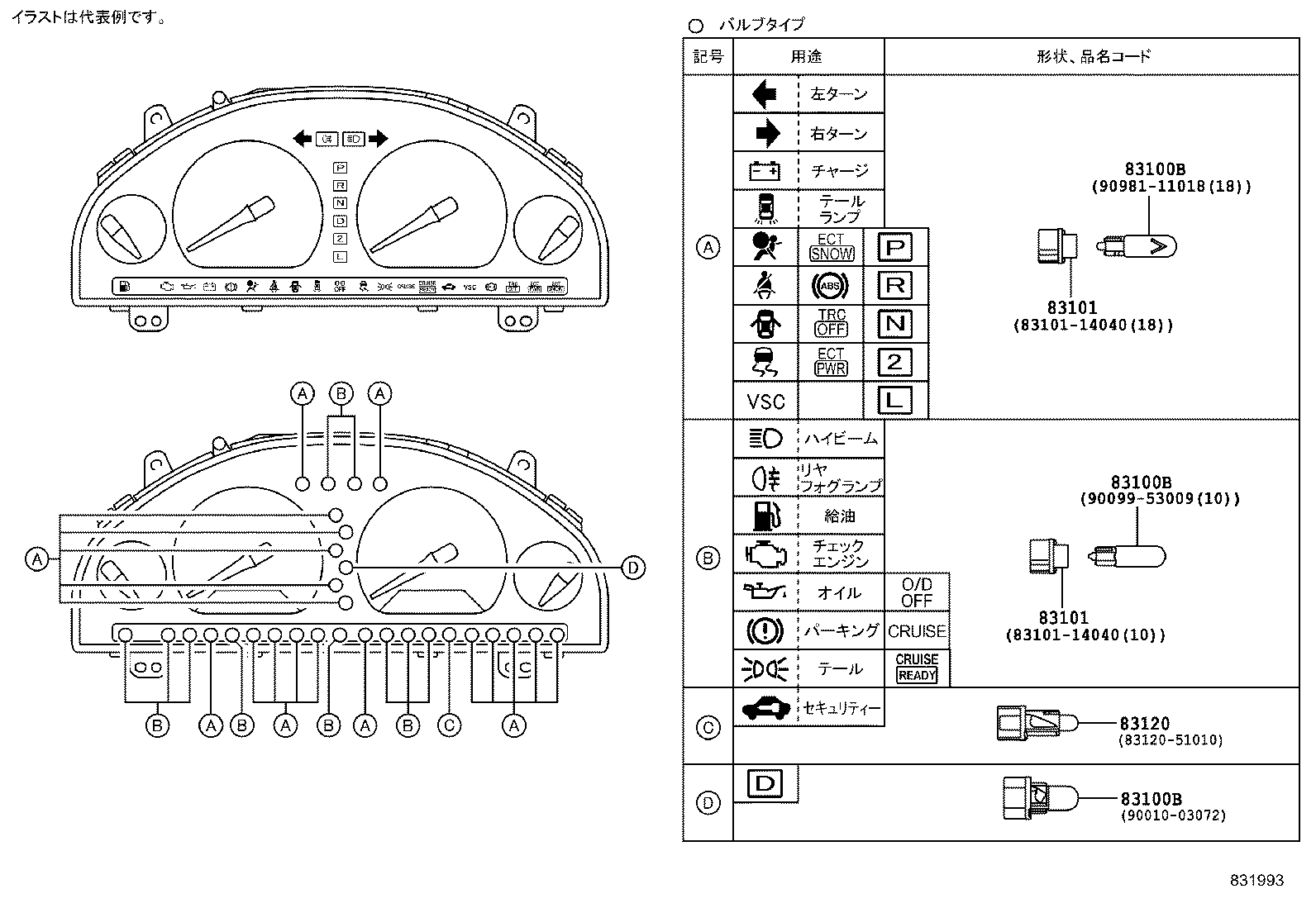

Meter
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83120 | Bulb Assy, Combination Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133C | Plate, Combination Meter,NO.4 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83291 | Computer, Combination Meter |
| 83864 | Plate, Meter Circuit, NO.4 (FOR COMPUTER) |
| 83910 | Clock Assy |
| 83915 | Bracket, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
