Toyota Origin
2000-08 → 2001-04 · chassis JCG17 · catalogue 323110 · Japan
Discontinued model
Data version 2000-08
Heating & Air Conditioning - Control & Air Duct
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55843A | Duct, Heater TO Register, NO.1 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211C | Duct, Air, NO.4 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215G | Guide, Air Duct, Rear RH |
| 87216G | Guide, Air Duct, Rear LH |

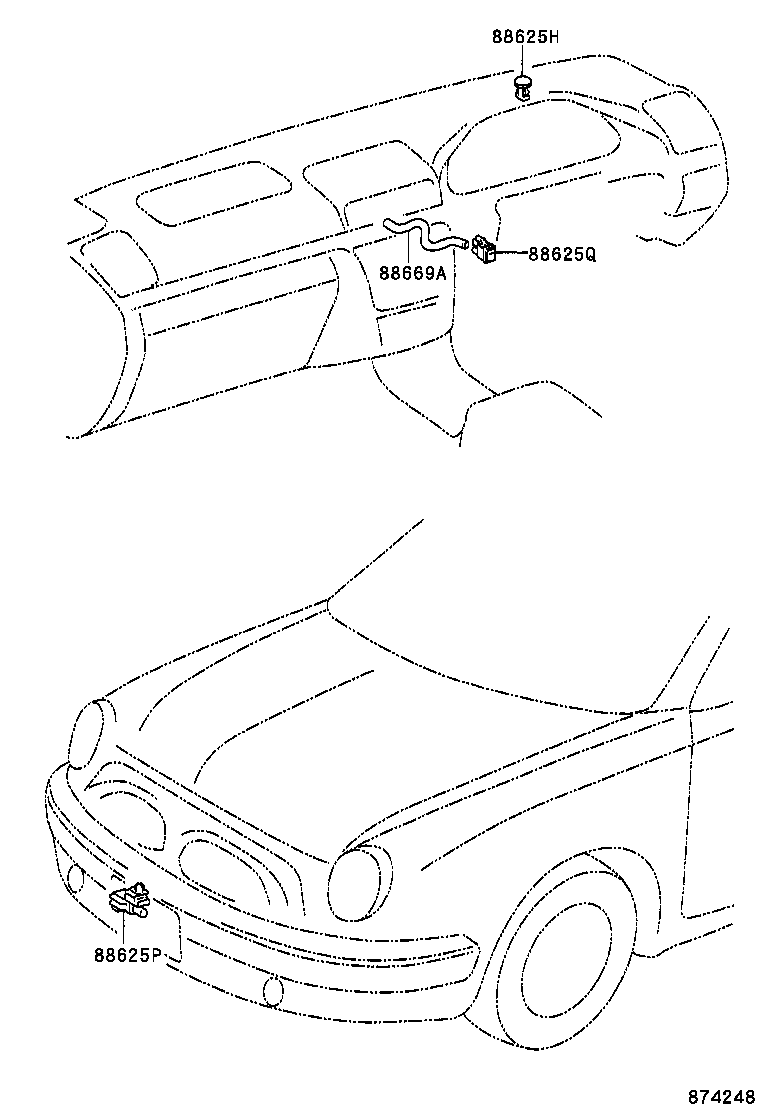

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
