Toyota Origin

2000-08 → 2001-04 · chassis JCG17 · catalogue 323110 · Japan

Discontinued model Data version 2000-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

Figure 874251B

874251B 2000-08 → —

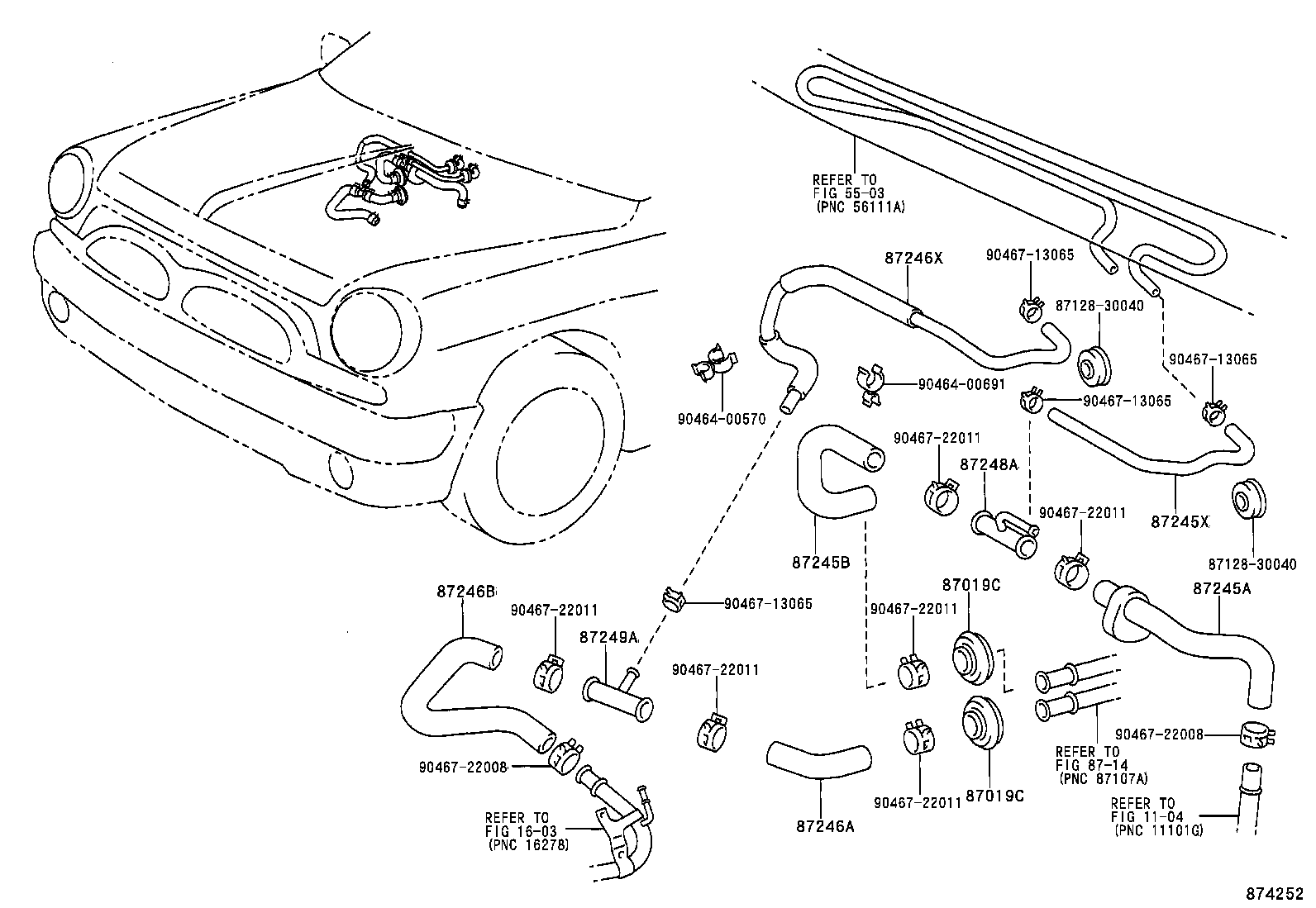

874252 2000-08 → —

Part groups

PNC	Description
87019C	Grommet, Heater Hose
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245X	Hose, Heater Water
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246X	Hose, Heater Water
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
