Toyota Brevis

2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

29 part groups · 2 illustrations

Illustrations

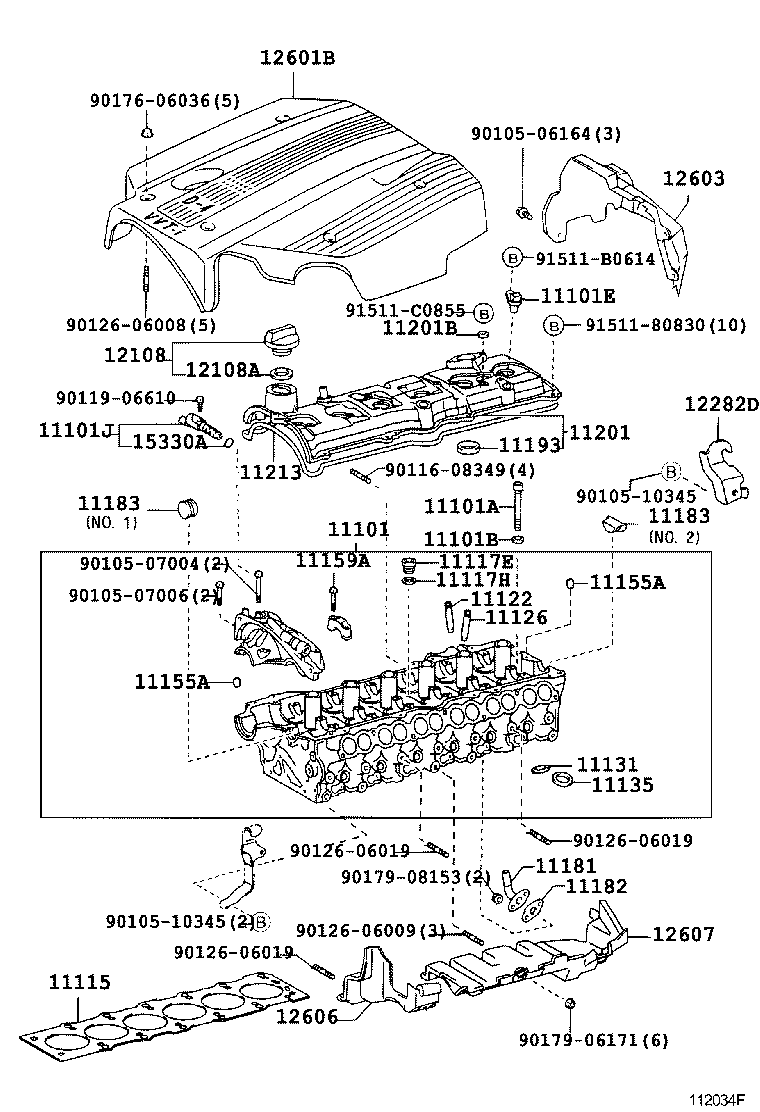

Figure 112033F 112033F 2001-05 → — Figure 112034F 112034F 2001-05 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101J Valve Assy, Camshaft Timing Oil Control
11115 Gasket, Cylinder Head
11117E Plug, W/Head Straight Screw, NO.1
11117H Gasket(FOR WATER HOLE)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
12603 Cover Sub-assy, Engine, Rear
12606 Cover Sub-assy, Engine, LH NO.1
12607 Cover Sub-assy, Engine, LH NO.2
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
