Toyota Brevis

2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

8 part groups · 2 illustrations

Illustrations

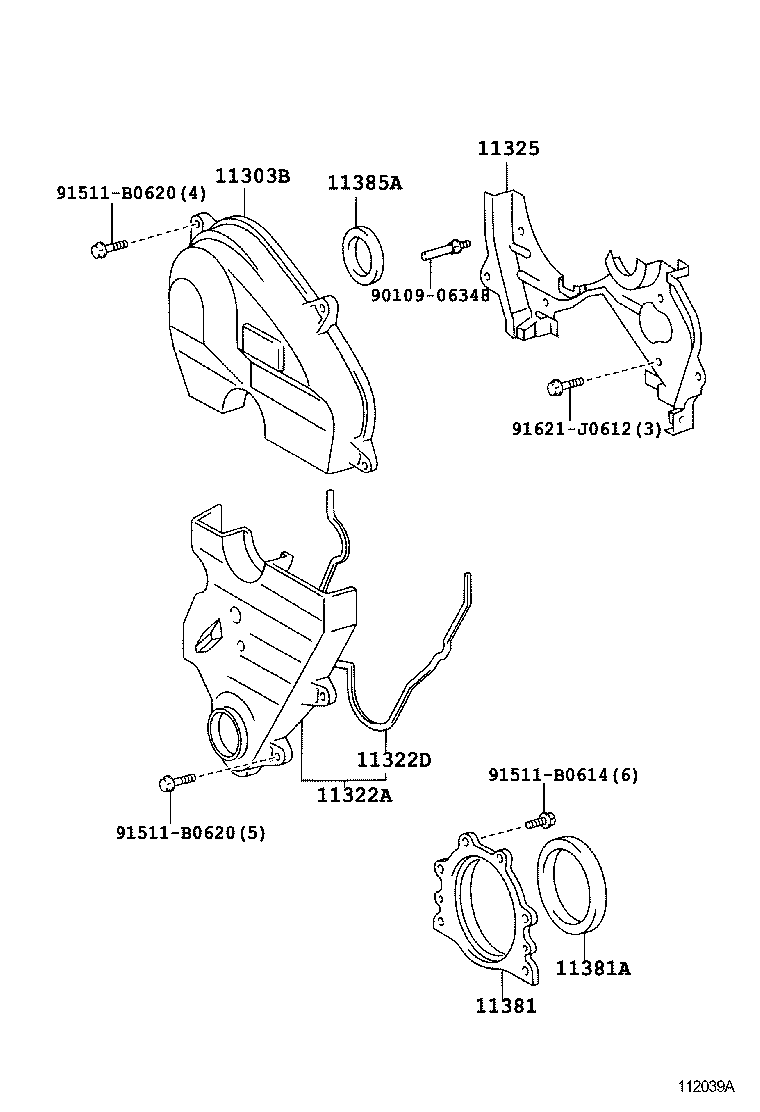

Figure 112038B 112038B 2001-05 → — Figure 112039A 112039A 2001-05 → —

Part groups

PNCDescription
11303B Cover Sub-assy, Timing Belt, NO.2
11322A Cover, Timing Belt, NO.1
11322D Gasket, Timing Belt Cover, NO.1
11324B Cover, Timing Belt, NO.5
11325 Cover, Timing Belt, NO.4
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11385A Seal, Oil(FOR CAMSHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
