Toyota Brevis

2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 2 illustrations

Illustrations

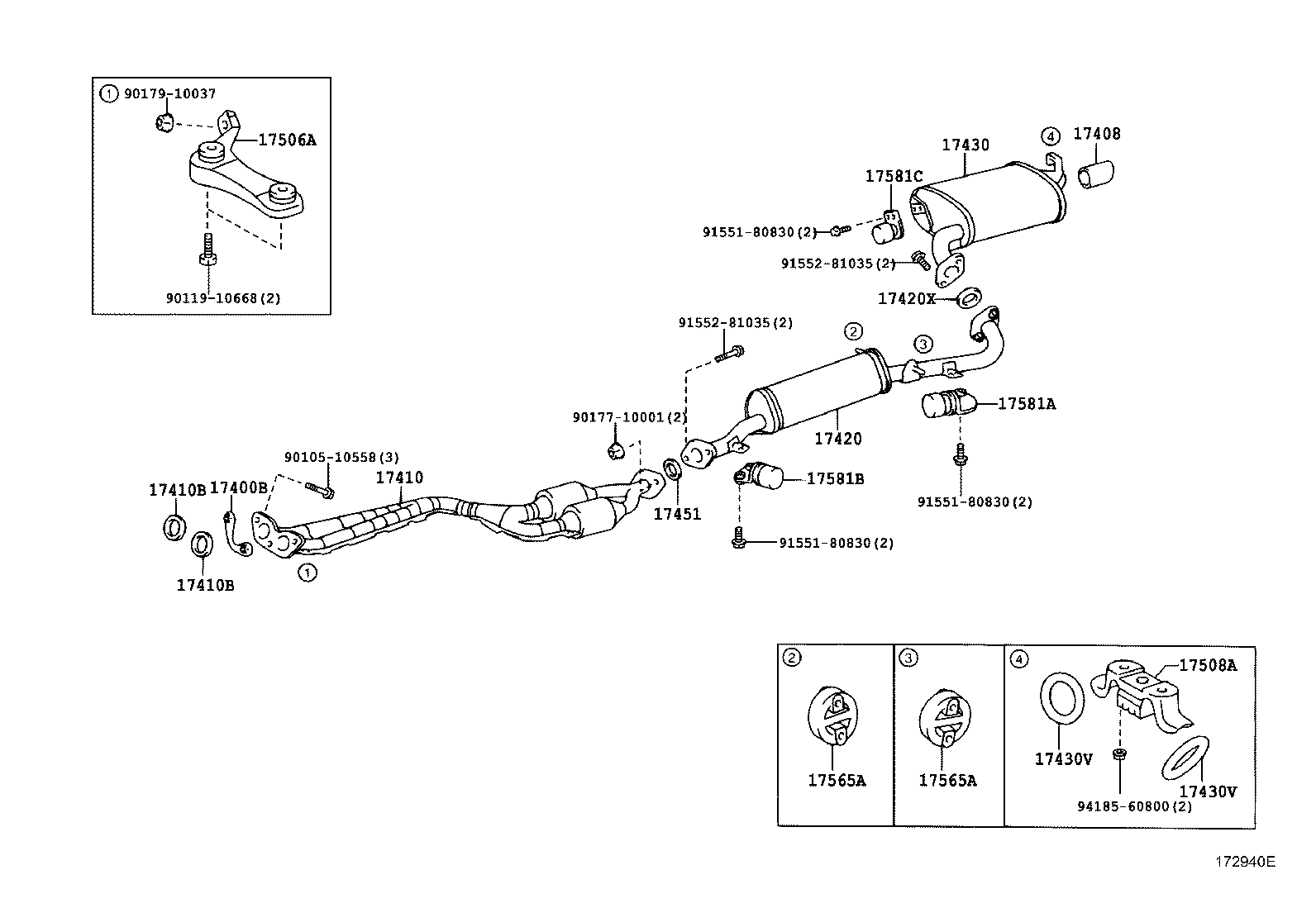

Figure 172939E 172939E 2001-05 → — Figure 172940E 172940E 2001-05 → —

Part groups

PNCDescription
17400B Retainer, Exhaust Pipe
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
17581C Damper, Exhaust Pipe, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
