Toyota Brevis
2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan
Discontinued model
Data version 2008-01

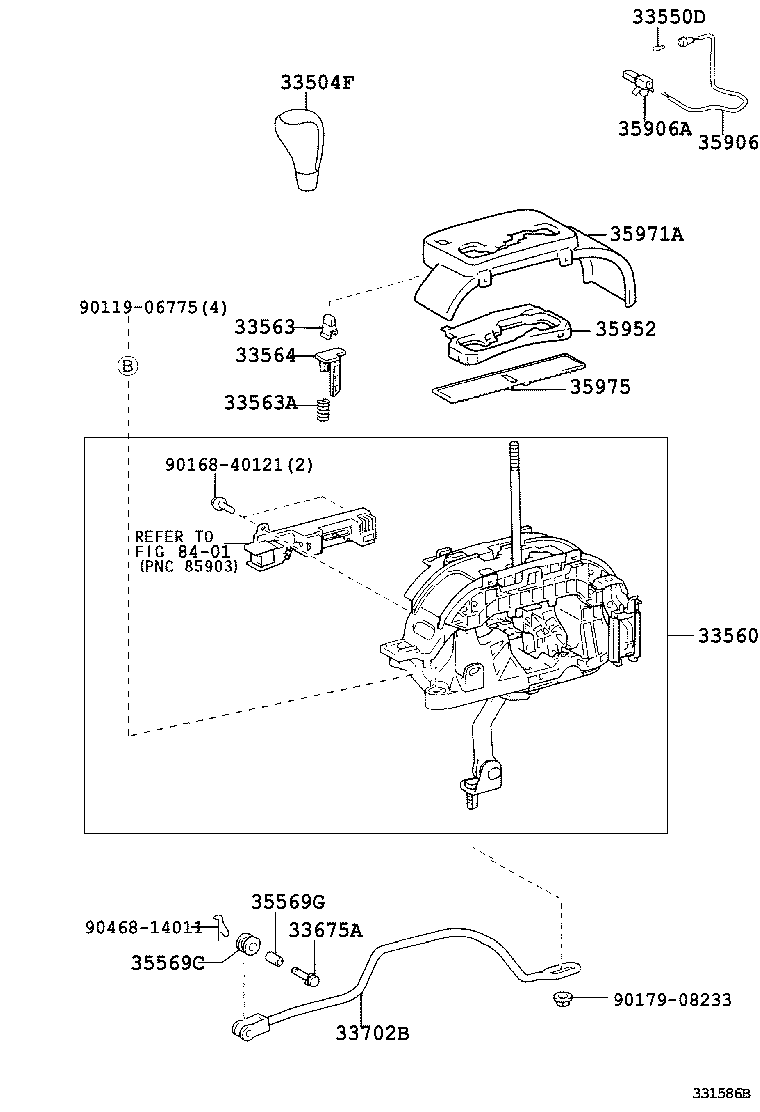

Shift Lever & Retainer
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33564 | Link, Shift Lock Release, NO.1 |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 35569C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 35569G | Bush (FOR TRANSMISSION CONTROL ROD) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35906A | Housing, Connector Male (FOR INDICATOR LAMP WIRE) |
| 35952 | Lens, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
