Toyota Brevis

2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

16 part groups · 2 illustrations

Illustrations

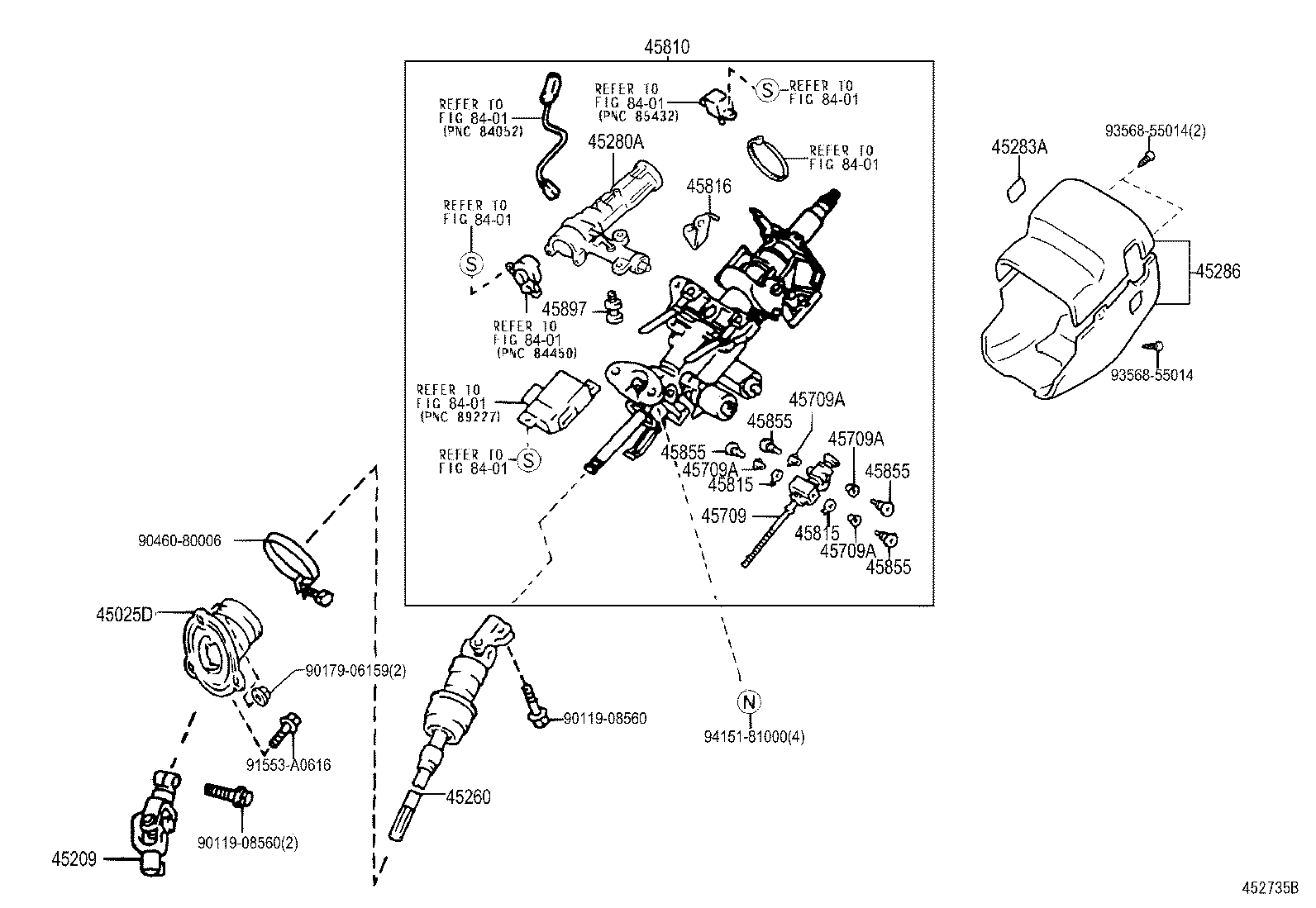

Figure 452734B 452734B 2001-05 → — Figure 452735B 452735B 2001-05 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45280A Bracket Assy, Steering Column, Upper
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45709 Slider Sub-assy, Tilt Steering
45709A Bush(FOR TILT STEERING SLIDER)
45810 Gear Assy, Tilt Steering, W/Motor
45815 Shim, Tilt Steering Support
45816 Bracket, Wire Harness
45855 Bolt, Tilt Steering, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
