Toyota Brevis
2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan
Discontinued model
Data version 2008-01
Roof Panel & Back Window Glass
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 56119B | Dam, Back Window Glass Adhesive |
| 63102A | Panel Sub-assy, Windshield Header |
| 63106 | Reinforcement Sub-assy, Roof Panel, NO.4 |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63133B | Frame, Back Window |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |

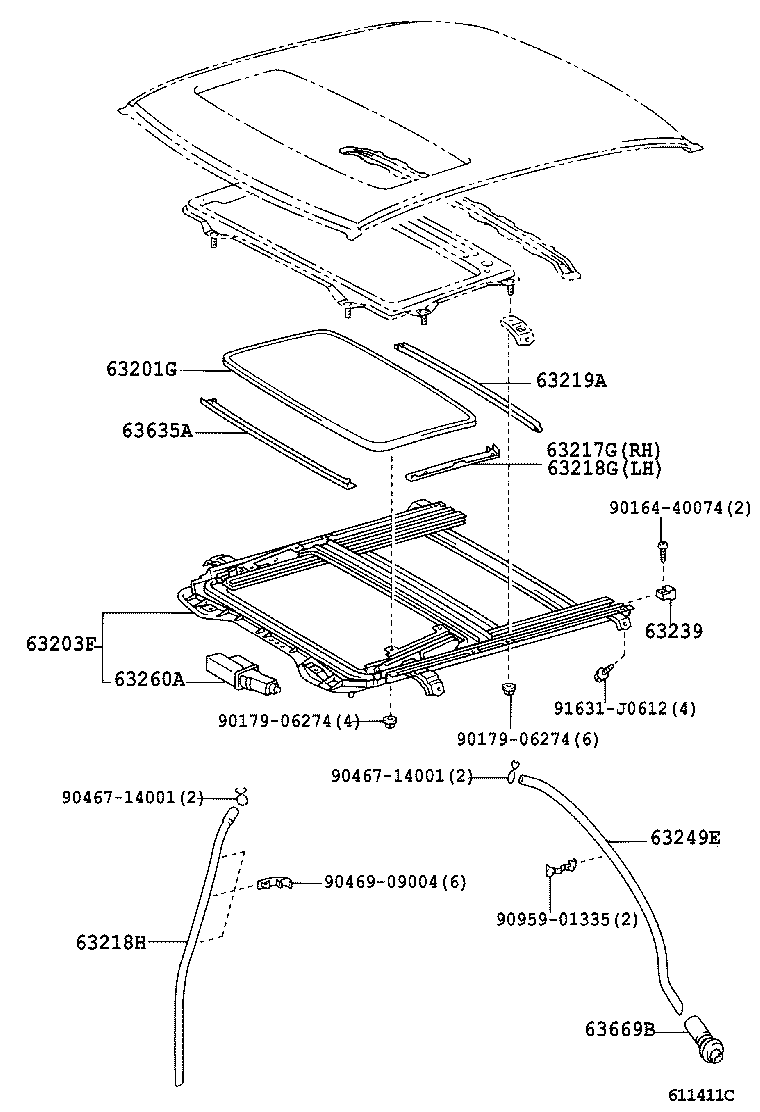

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218H | Hose, Sliding Roof Drain |
| 63219A | Garnish, Sliding Roof, Rear |
| 63239 | Stopper, Sliding Roof Panel |
| 63249E | Hose, Sliding Roof Drain |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63635A | Garnish, Sliding Roof, Front |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64241D | Panel, Room Partition |
| 64811 | Glass, Back Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
