Toyota Brevis

2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 2 illustrations

Illustrations

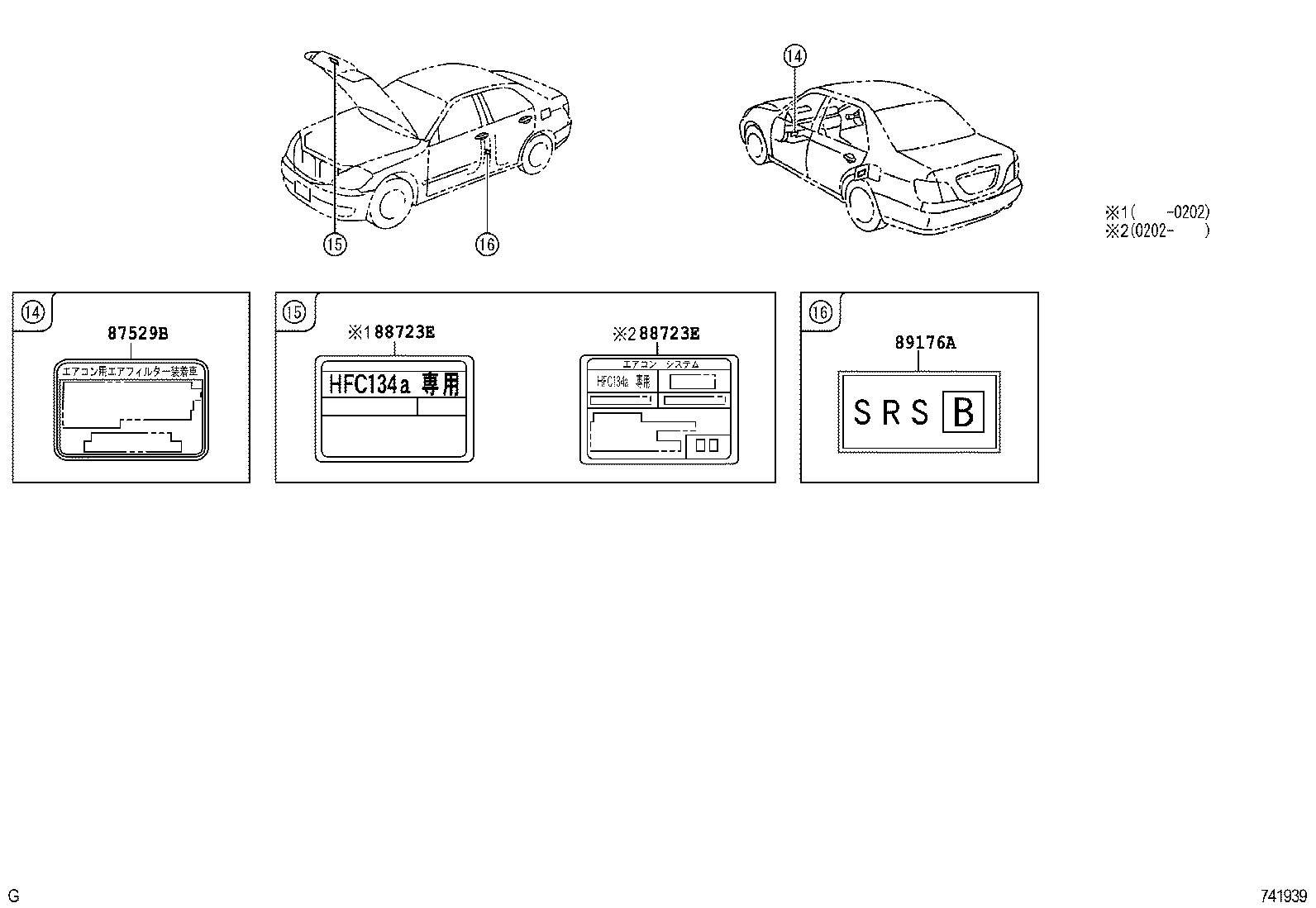

Figure 740928G 740928G 2001-05 → — Figure 741939 741939 2001-05 → —

Part groups

PNCDescription
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
71819C Label, Side Airbag Name
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541B Plate, Compact Spare Tire Caution
74545C Label, Luggage Door
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74751 Label, Tire Pressure Information
75341C Plate, Hood Name
87511A Plate, Seat Heater Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
