Toyota Brevis
2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan
Discontinued model
Data version 2008-01

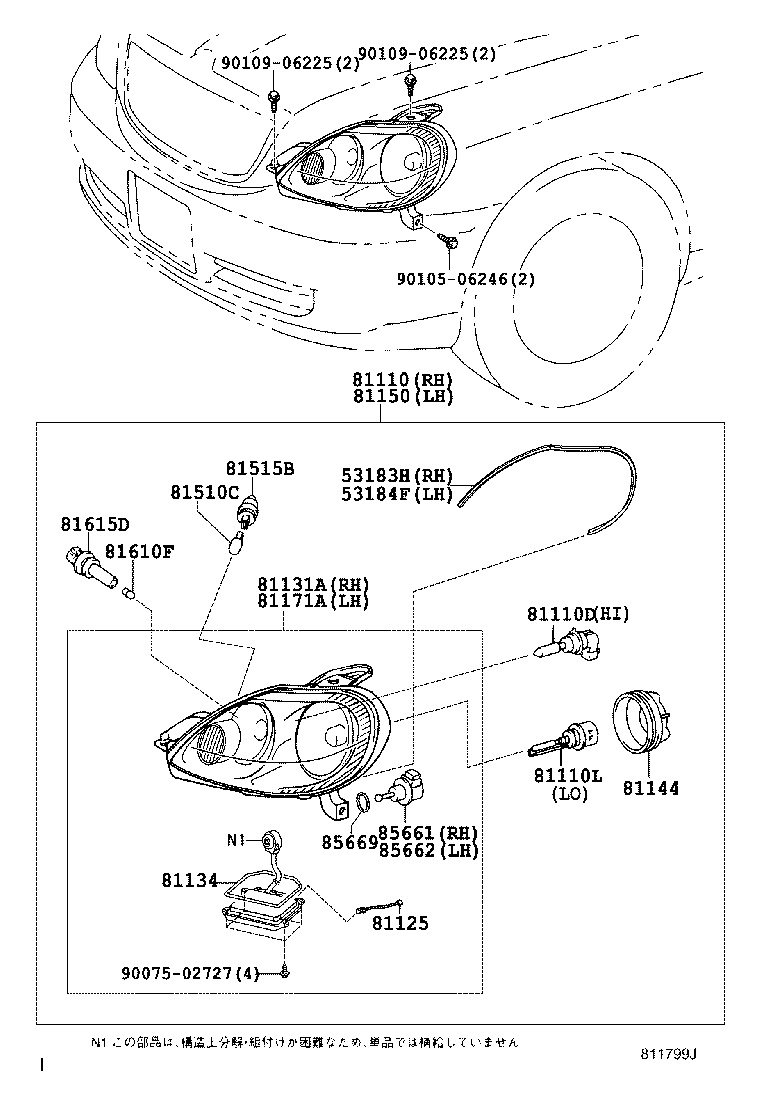

Headlamp
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183H | Seal, Headlamp Cover, RH |
| 53184F | Seal, Headlamp Cover, LH |
| 81110 | Headlamp Assy, RH |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81120 | Headlamp Sub-assy, RH |
| 81125 | Cord, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81134 | Gasket, Headlamp |
| 81144 | Cover, Headlamp, NO.1 |
| 81145 | Cover, Headlamp, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81160 | Headlamp Sub-assy, LH |
| 81171A | Unit, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
