Toyota Brevis
2001-05 → 2007-06 · chassis JCG1# · catalogue 324110 · Japan
Discontinued model
Data version 2008-01
Interior Lamp
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080D | Lamp Assy, Front Door Inside Handle Illumination, RH |
| 81080E | Lamp Assy, Front Door Inside Handle Illumination, LH |
| 81080F | Lamp Assy, Rear Door Inside Handle Illumination, RH |
| 81080G | Lamp Assy, Rear Door Inside Handle Illumination, LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |

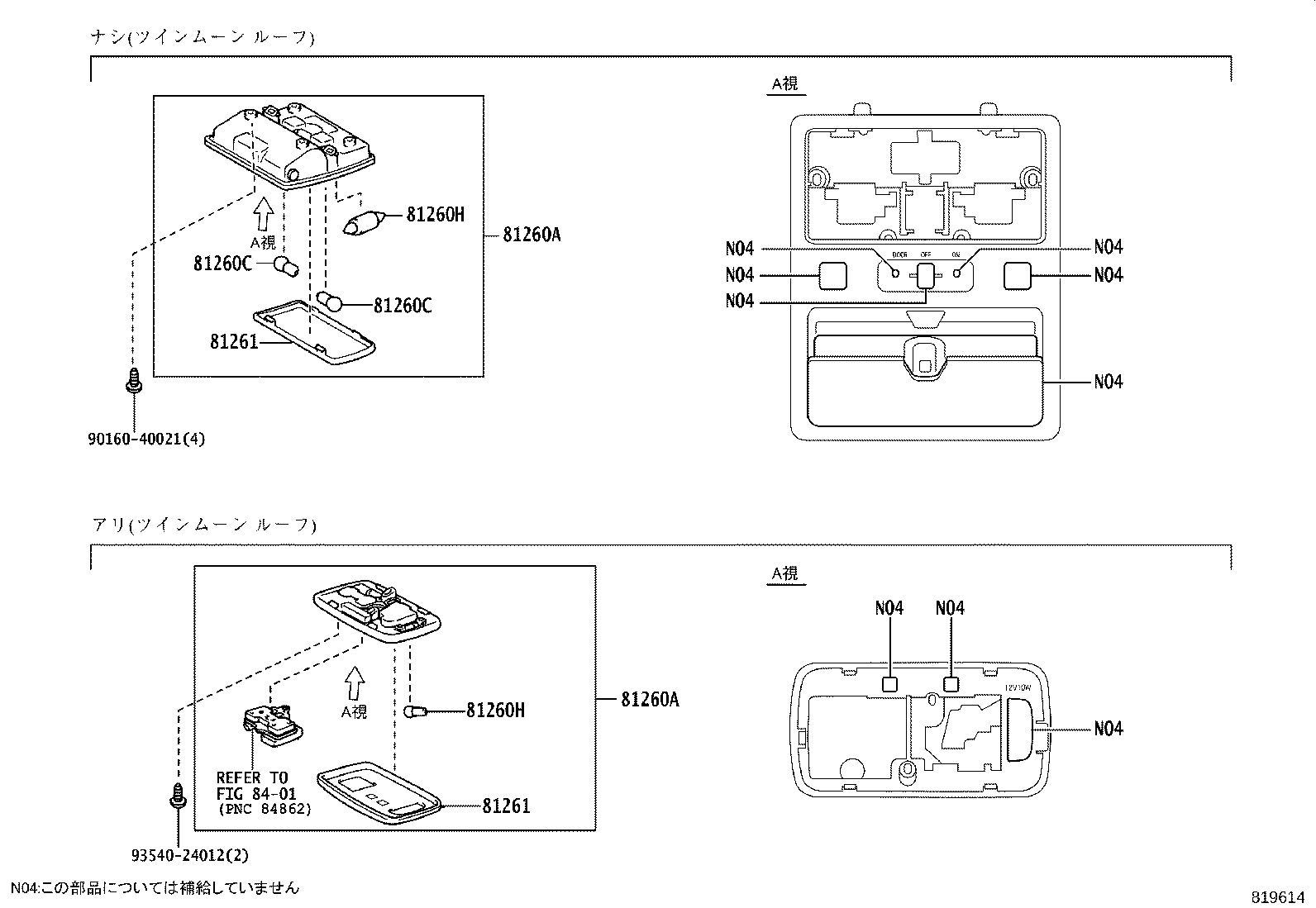

| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81260H | Bulb(FOR MAP LAMP), NO.2 |
| 81261 | Lens And Cover, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81340H | Lamp Assy, Vanity, RH |
| 81340J | Lamp Assy, Vanity, LH |
| 81360 | Lamp Assy, Step OR Spot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
